15khz ultrasonic plastic welding machine
- 20 Set / Sets per Month
- Qingdao port China
- T/T L/C D/P D/A Credit Card
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Shandong, China | Brand Name: | Yongxing | Model Number: | YX-2018 |
Voltage: | AC220V50Hz | Power: | 1800W | Frequency: | 20KHz |
Welding Area: | adjustable as per the horn | Dimensions: | 400*650*1200 | Weight: | 105kg |
Usage: | ABS, PP, PC, PE, PVE, SAN, Acrylic, NORYL, PVC alloy and other product | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

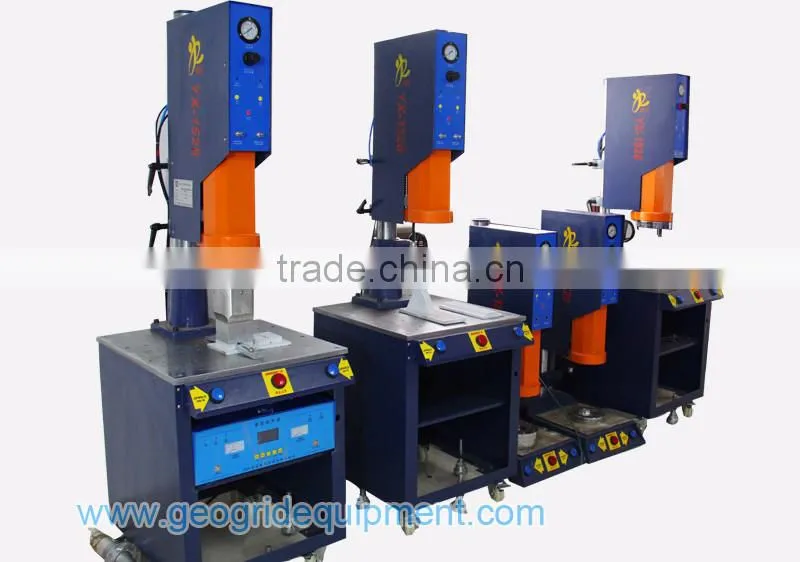

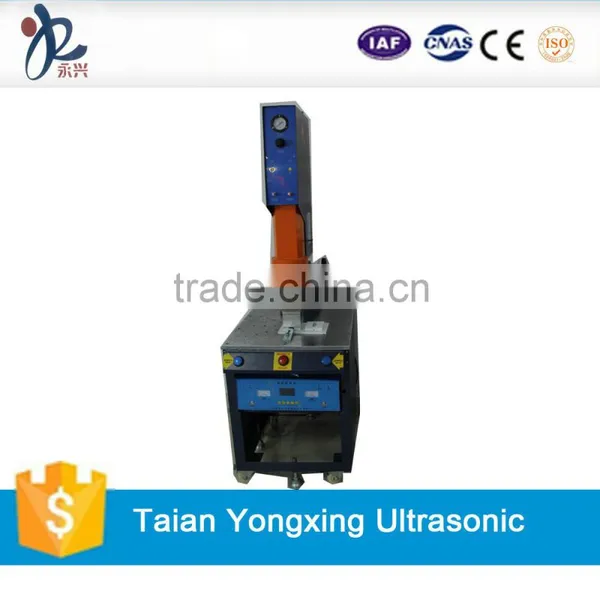

Automatic Plastic Ultrasonic Welding Machine YX-2018
Brief Introduction:
Suitable for welding of small single species plastic workpiece, the most integrated, smallest and lightest models on market currently.
Equipment Features:
1. CNC system configuration, high accuracy, high reliability;
2. Imported LCD screen, English interface, touch operation, fault self-diagnosis;

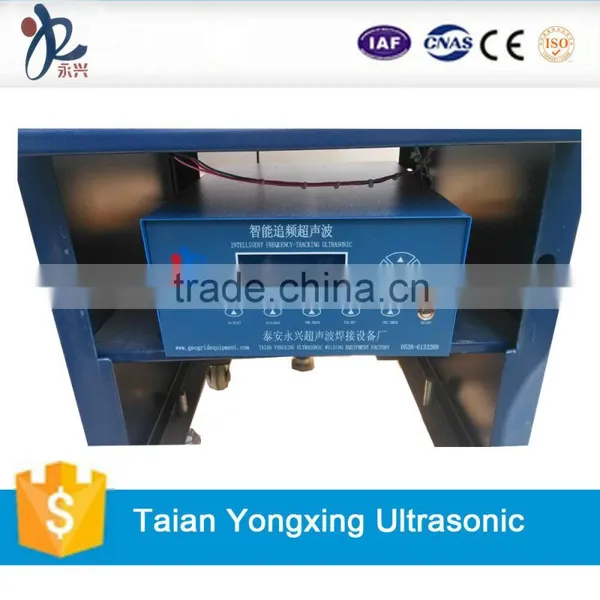

3. Ultrasonic generator adopts intelligent control system, automatic frequency tracking, automatic power control without manual tuning, adapts to various transducers;
4. original piezoelectric ceramics transducer imported from Germany, long service life and high power;
5. Imported linear guide rail, high precision and long life.
Equipment Application:

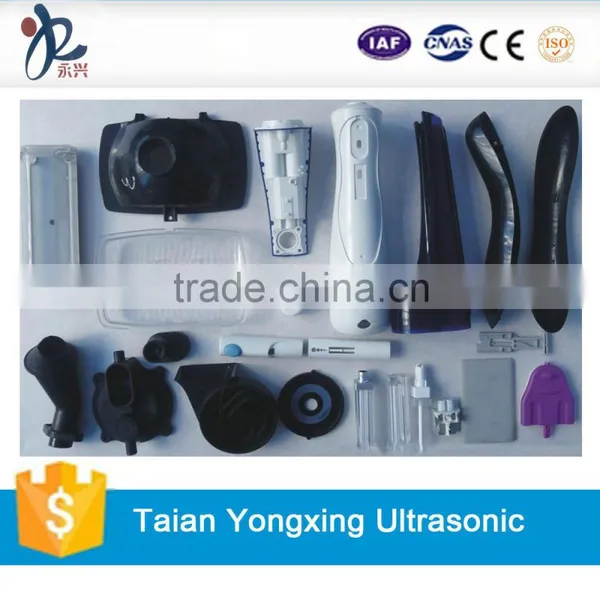

ABS, PP, PC, PE, PVE, SAN, Acrylic, NORYL, PVC alloy and other products,such as plastic toys, plastic gun, plastic cards and other products.
Technical Parameter:
Parameters Model | YX-2010 | YX-2012 | YX-2015 | YX-2018 | YX-2020 | |
Output power | 1000W | 1200W | 1500W | 1800W | 2000W | |
The working frequency | 20KHz | |||||
Working voltage | AC220V50Hz | |||||
Working stroke | 70mm | |||||
Working pressure | 2-7kgf/cm2 | |||||
The shape size | 400*650*1200 | |||||
Net weight | 95kg | 98kg | 100kg | 105kg | 110kg |
