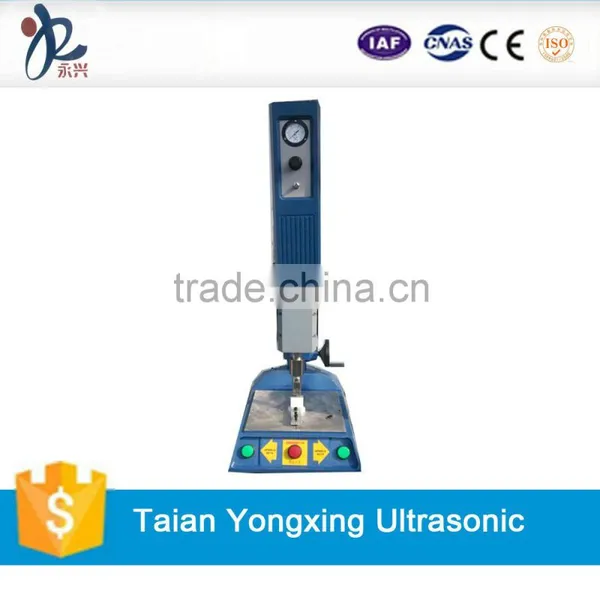

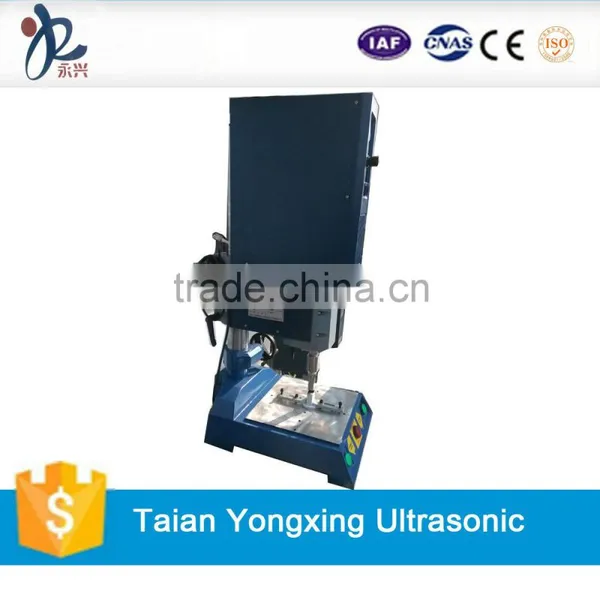

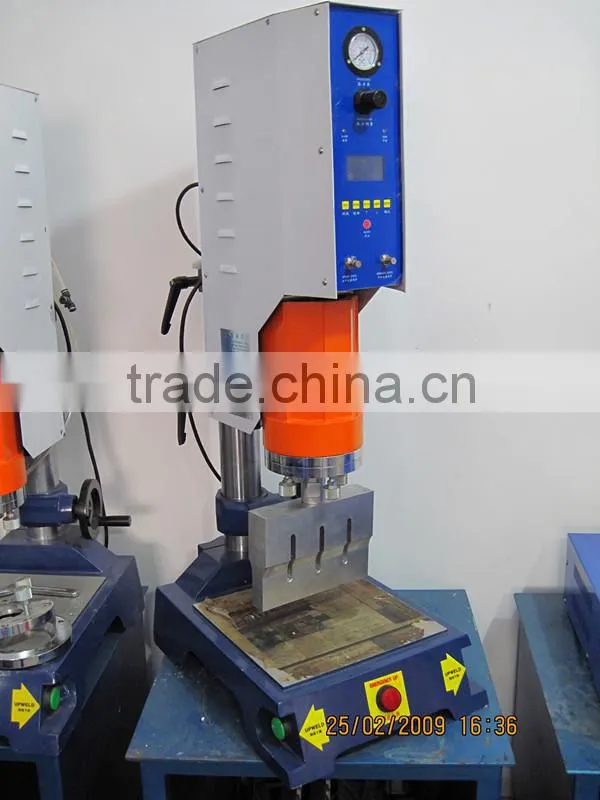

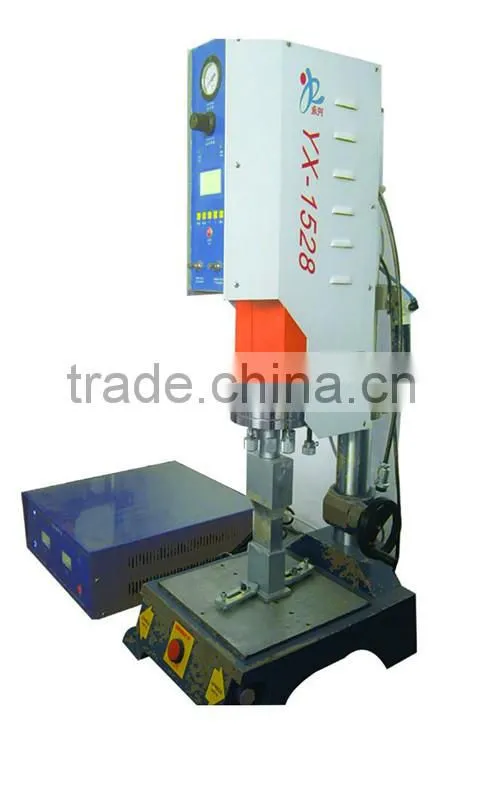

Desktop type Ultrasonic welding machine YX-1528
- 20 Set / Sets per Month
- Qingdao port China
- T/T L/C D/P D/A Credit Card PayPal
- Huitai hot selling OEM auto hot plate sheet board plastic pallet welding machine
- Auto Plastic Pallet sheet plate board Hot Plate Welding Machine for pallet
- automatic PP board edge sealing machine, coroplast sheet layer pads welding machine
- Huitai plastic capillary tube welding machine plastic welders pvc plastic hot plate welding machine bonding
- PP Membrane Hot Filter Plate Chamber Filter Press Plate and Frame Filter Plate welding machine
- Plastic PP Membrane Hot Chamber Filter Press vertical Frame Filter Plate welding machine plate-and-frame belt
Product Details
Place of Origin: | Shandong, China | Brand Name: | Yongxing | Model Number: | YX-1528 |
Voltage: | AC220V50Hz | Power: | 1800w | Frequency: | 15khz |
Welding Area: | Adjustable as per the horn | Dimensions: | 400*650*1200 | Weight: | 100kg |
Usage: | ABS, PP, PC, PE, PVC, SAN, Acrylic, NORYL, PVC alloy and other product | After-sales Service Provided: | Overseas third-party support available |
Product Description
Ultrasonic welding machine YX-1528
Equipment Introduction:
Ultrasonic welding is a high-tech which is used on welding thermoplastic products, and all kinds of thermoplastic rubber products can be welded by ultrasonic. It doesn’t need any adhesives, supplements or solvents, and it’s low energy-consuming. The machine has the advantages of simple operation, high welding strength and productivity. Therefore, ultrasonic welding technology has been used more and more widely and deeply in recent years
Equipment Features:
1. Imported piezoelectric ceramics transducer from Germany, steady and stronger output;
2. The machine body adopts anti-recline design and coaxial vertical pressure design. The pressure imposed is more balanced and the welding accuracy is improved greatly;
3. LCD demonstration, soft push on the control panel;
4. The molds are designed into adjustable balance structure which is easy and convenient for mold adjusting;
5. New power enlargement electricity circuit, the power is stronger and the transducers are more durable, better for PP nylon materials;

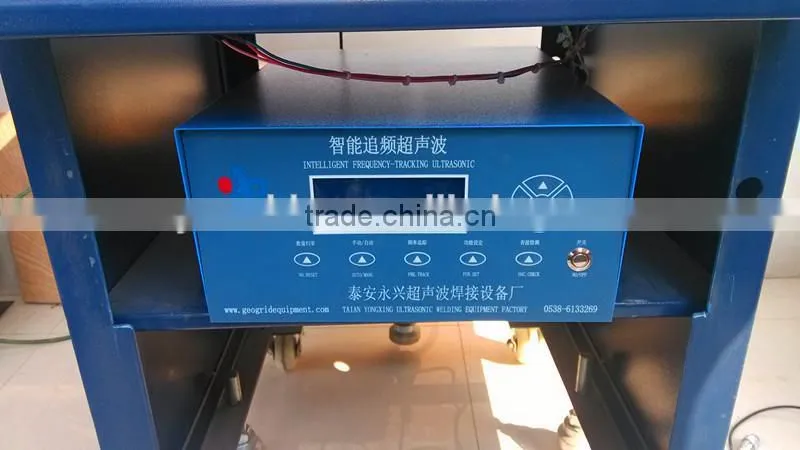

6. Automatic frequency tracking system, types of parameters-presetting;
7. The main electric components are imported from Germany and USA.
Equipment Application:
ABS, PP, PC, PE, PVC, SAN, Acrylic, NORYL, PVC alloy and other products:
1. Toys: plastic toys, plastic gun, plastic skateboard, plastic cards, remote control models, squirt gun and entertainment tools;
2. Electronics: video shell, video disk and typing ribbon;
3. Food: thermos, food boxes;
4. Stationary: pencil box, PP file folder, pen holder;
5. Household Electrical Appliance: balancing ring of washing machine, computer, steam iron;
6. Motor: switch plug, rectifier, battery;
7. Traffic Equipment: headlight, rear light, car filter;
8. Other Industries: Christmas decorations, plastic lighter.
Technical Parameter:
Parameters Model | YX-1518 | YX-1522 | YX-1526 | YX-1528 |
Output power | 1800W | 2200W | 2600W | 2800W |
The working frequency | 15KHz | 15KHz | 15KHz | 15KHz |
Working voltage | AC220V50Hz | |||
Working stroke | 70mm | |||
Working pressure | 2-7kgf/cm2 | |||
The shape size | 400*650*1200 | |||
Net weight | 100kg | 105kg | 110kg | 115kg |
