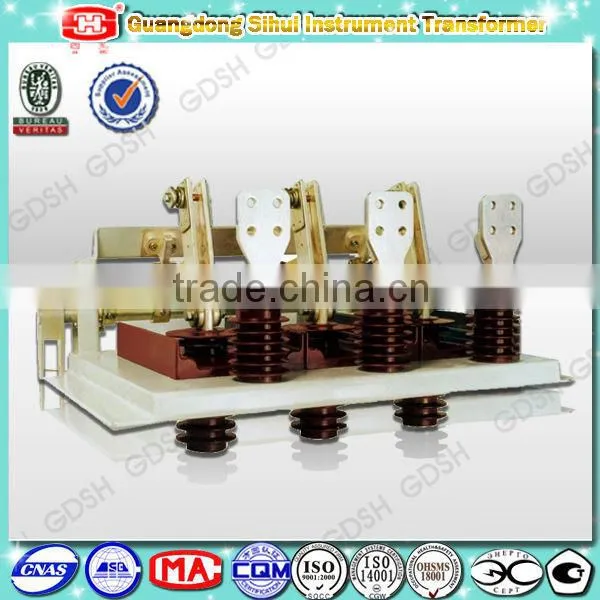

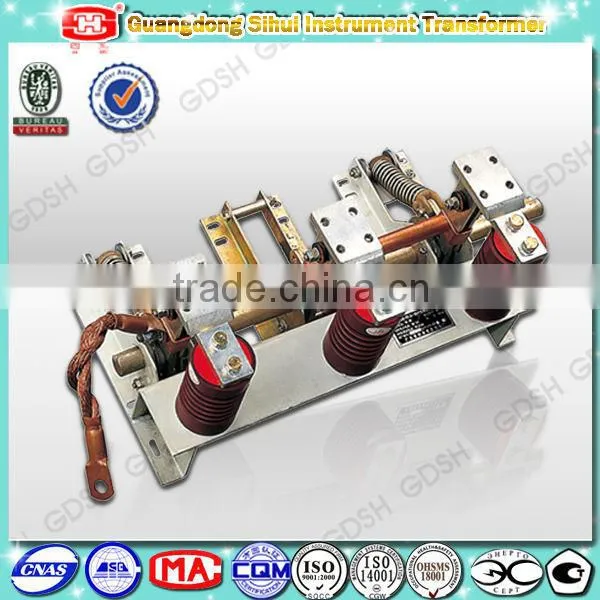

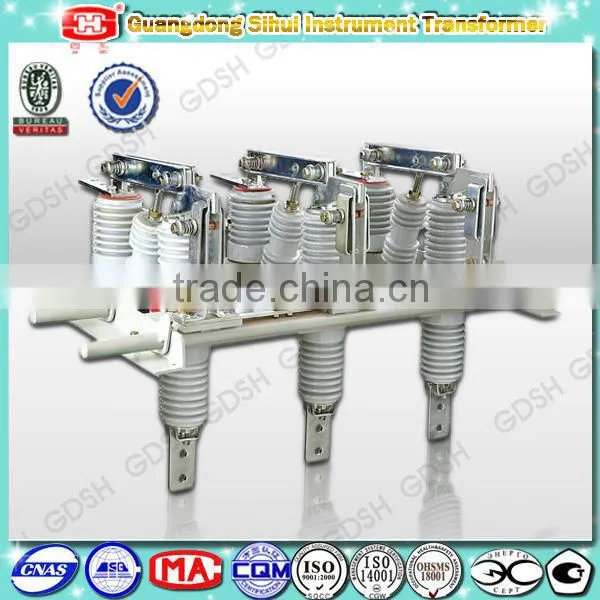

Matching Hiagh Voltage Switchgear Indoor Insulating Switches Transformer Equipment
1. Features of Main Structure
1.1 Functions of isolating switch and earthing switch are realized by one driving shaff and one movable contact knife in the condition of air insulation. The product is a new multi-function switch that owns three operation positions of on, isolating (off) and earthing.
1.2 The structure of products is reasonable, copact, smsall volume, safety and reliable. The performance of anti-wrong-operation is quite good. It is an ideal matched product of minimized switchgear.
1.3 When on and off operation, turn a crank connecting to a shaft by an operating handle, a connection rod make a movable contact knife rotate for closing, isolating(testing) and earthing.
Technical Parameters for GN19-12Q Isolating Switches
Matching Hiagh Voltage Switchgear Indoor Insulating Switches Transformer Equipment
Technical Parameters Table
No. |
Model |
Rated Voltage (kV) |
Operating Voltage (kV) |
Rated Current (A) |
Dynamic Current (Peak) (kA) |
Thermal Current in 4s (r.m.s.)(kA) |
1 |
GN19-12Q/400 |
12 |
10 |
400 |
31.5 |
12.5 |
2 |
GN19-12Q/630 |
630 |
50 |
20 |
||
3 |
GN19-12Q/1000 |
1000 |
80 |
31.5 |
||
4 |
GN19-12Q/1250 |
1250 |
100 |
40 |
||
5 |
GN19-12C1(2/3)Q/400 |
12 |
10 |
400 |
31.5 |
12.5 |
6 |
GN19-12C1(2/3)Q/630 |
630 |
50 |
20 |
||
7 |
GN19-12C1(2/3)Q/1000 |
1000 |
80 |
31.5 |
||
8 |
GN19-12C1(2/3)Q/1250 |
1250 |
100 |
40 |
Notes:
1 Type GN19-12Q is plane installation, type GN19-12CQ is wall going-thru type(bushings enclosed).
2 Detailed technical data and outline drawings shall be provided upon request.
1. Matching different sizes switchgears for voltage metering and protection or for control-circuit supply.
2. Power plant and power station.
3. All kinds of industrial area, such as factories, coal mine, subways and so on.
4. They also can be used in communities.
5. Especially suitable for medium voltage witchgears. image
