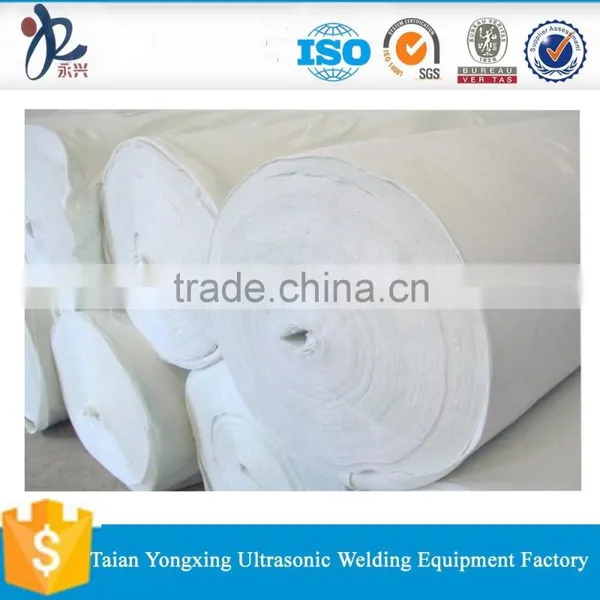

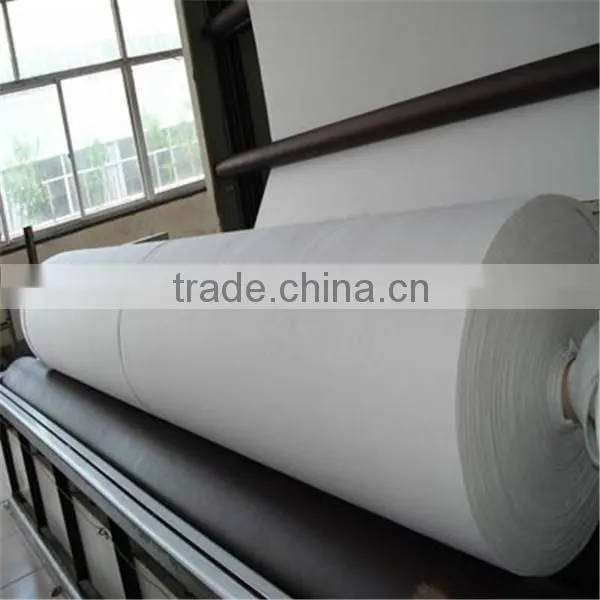

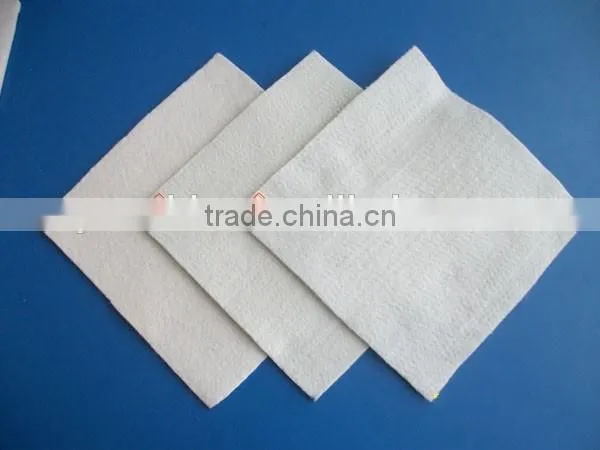

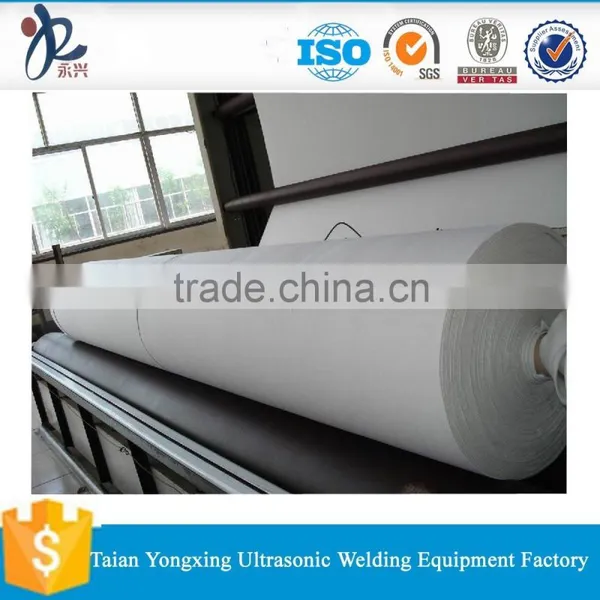

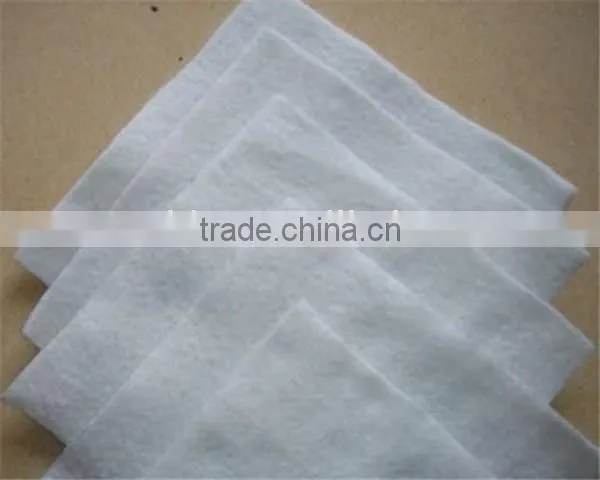

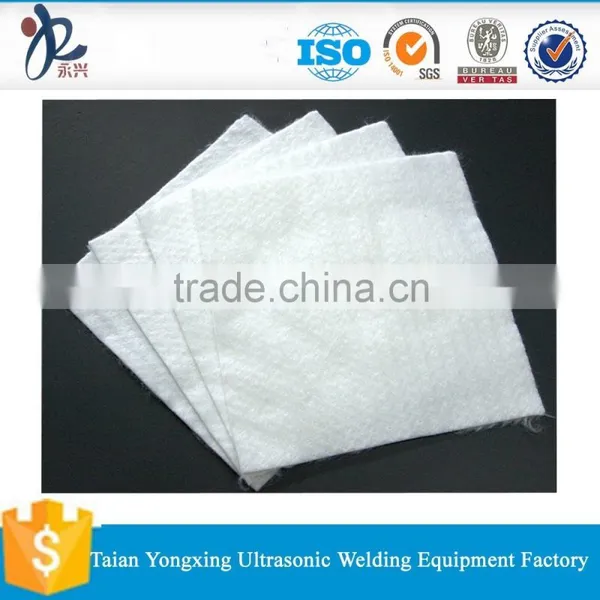

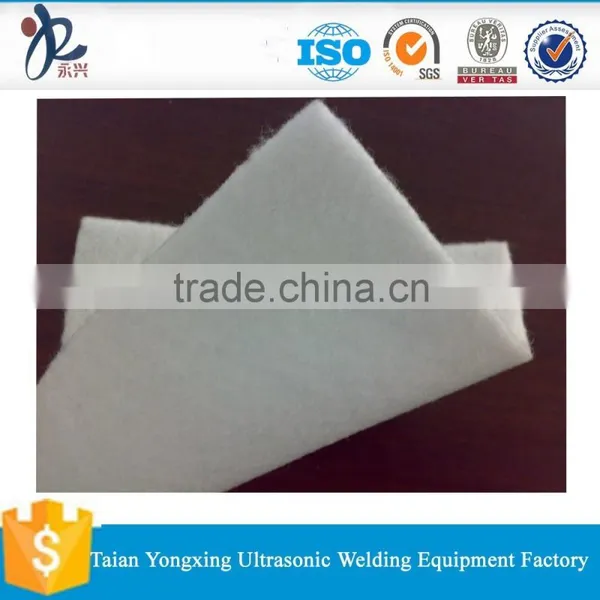

NON-WOVEN GEOTEXTILE
Non woven geotextile can be made of polypropylene (PP), or polyester (PET), Polyvinyl or synthetic fiber on needle punch machine. The mass is available from 100gsm/m² to 1500gsm/m² and the width available from 2.0m-6.5m, monolayer or multilayer (reinforcement geotextiles), long fiber or short fiber. Color: all kinds of color are available. The annual production ability is 10 million square meters.
The fabric can also be heat treated by infrared at customer's requirements. Our geotextile are UV stabilized to give protection against aging under exposure to natural ultra-violet light.
1) Weight / Mass: 100g/m2-1500g/m2
2) Width: Within 8 m (1m-8m as request )
3) Length: 50m-100m/roll (as request)
4) Material: PP / PET
5) Certificate: CE/ISO9001/ISO14001
6) Manufacturing method: nonwoven / woven
High strength,anti-aging,anti-acid and alkali,abrasion resisting,flexibility,and easy for construction.

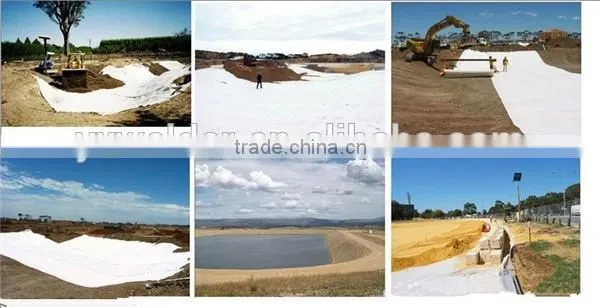

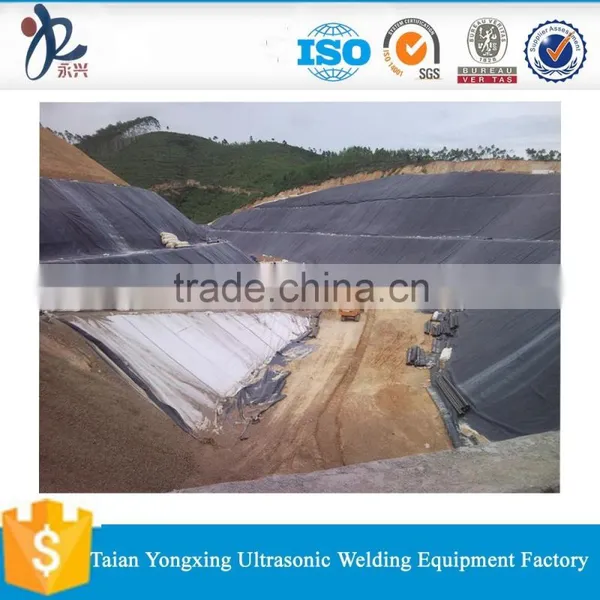

1) Filtration geotextile:
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2) Separation geotextile:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3)Adding geotextile:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
4) Protection geotextile:
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
Item |
Value |
|||||||||
Specification/2 |
100 |
150 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
1 |
Breaking Strength(MD/CD)(KN/m) |
4.5 |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
2 |
Elongation at break(MD/CD) (%) |
40~80 |
||||||||
3 |
CBR Mullen Brust Strength KN≥ |
0.8 |
1.6 |
1.9 |
2.9 |
3.9 |
5.3 |
6.4 |
7.9 |
8.5 |
4 |
Tear Strength(MD/CD)/KN |
0.14 |
0.21 |
0.28 |
0.42 |
0.56 |
0.70 |
0.82 |
1.10 |
1.25 |
5 |
Openging Size o90 (o95)mm |
0.05~0.20 |
||||||||
6 |
Vertical Permeability Coefficient cm/s |
K×(10-¹~10-³) K=1.0~9.9 |
||||||||
7 |
Thickness/mm≥ |
0.8 |
1.2 |
1.6 |
2.2 |
2.8 |
3.4 |
4.2 |
5.5 |
6.8 |
8 |
Width Variation% |
-0.5 |
||||||||
9 |
Weight Variation/% |
-5 |
||||||||
