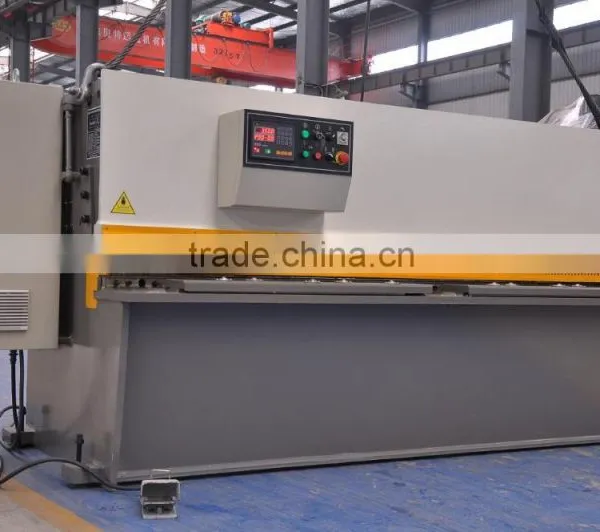

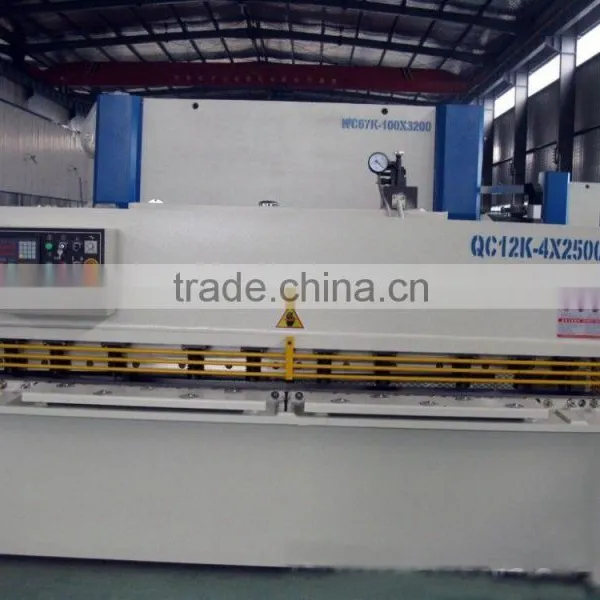

QC12K hydraulic nc electric shear machine,sheet metal shearing machine
- 80 Set / Sets per Month
- Shanghai Qingdao Ningbo
- T/T L/C D/P D/A Credit Card
- Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
- Best price cnc table plasma cutting machine with water table
- High-power cnc plasma cutting machine 1530
- REBOUND CNC table plasma cutting machine for metal 1.5x3m
- REBOUND CNC new automatic plasma cutting machine with good price
- table cnc best price modern plasma cutting machine for stainless
Product Details
Condition: | New | Place of Origin: | Anhui, China | Brand Name: | Hellen |
Model Number: | QC12Y-8x2500 | Voltage: | 380V | Rated Power: | 7.5KW |
Dimension(L*W*H): | 3840x1650x1750mm | Weight: | 6,600KG | Certification: | CE |
Warranty: | 2 years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CNC shearing machine function and characteristics:
- All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
- Integrated hydraulic transmission system, with good reliability.
- Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
- Mechanical back gauge with manual fine tuning, and digital indication(or for other choice CNC system, CNC system and the location of encoder closed-loop control system, high speed, high accuracy, good stability, can ensure precisely that back gauge after the precision of size displacement, and the numerical control system has the function of automatic detection precision compensation and the additional functions).
- Clearance in between shearing blades adjusted by hand wheel or automatic to be quick, accurate and convenient. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
- Upper blade holder has inward structure to facilitate material feed in and also enhance accuracy of the work piece.
- Function of shearing in sections, function of aligning with light.
- Optional: rear material holding device (or for other choice)
Components and parts :
Hydraulic system: Omega(USA);
Pump: Gear pump;
Electrics: Germany Te/Omron;
O-rings: Japanese NOK;
Ball screw: TAIWAN HIWIN;
Line guide rail: TAIWAN HIWIN;
Foot Switch: Karcon (South Korea)
NC Controller: Elgo P9521 (Germany)
standard equipments:
Segmented upper blade 1set (two sides can be use)
Lower blade 1set (four sides can be use)
Front supporting arms 3
Emergency stop button;
Back, and front safty fence;
Shadow line lighting
Safety foot switch
Foundation bolts 1set
Manuals and diagram 1book
Model | Shear size | Shear Angle | Strodes | Backgauge Range | Main Motor | Weight | Overall Dimensions |
L×W×H | |||||||
QC12Y-4×2000 | 4×2000 | 1 ° 30’ | ≥21 | 20-600 | 7.5 | 4,650 | 2540×1610×1650 |
QC12Y-4×2500 | 4×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
QC12Y-4×3200 | 4×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
QC12Y-4×4000 | 4×4000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 7,550 | 4680×1705×1700 |
QC12Y-4×5000 | 4×5000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 16,000 | 5786×2200×2160 |
QC12Y-6×2000 | 6×2000 | 1 ° 30’ | ≥22 | 20-600 | 7.5 | 5,100 | 2540×1960×1650 |
QC12Y-6×2500 | 6×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
QC12Y-6×3200 | 6×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
QC12Y-6×4000 | 6×4000 | 1 ° 30’ | ≥10 | 20-600 | 11 | 8,500 | 4640×1705×1700 |
QC12Y-6×5000 | 6×5000 | 1 ° 30’ | ≥10 | 20-750 | 11 | 19,700 | 5786×2200×2160 |
QC12Y-6×6000 | 6×6000 | 1 ° 30’ | ≥7 | 20-800 | 15 | 25,000 | 6900×2570×2280 |
QC12Y-8×2500 | 8×2500 | 1 ° 30’ | ≥14 | 20-600 | 11 | 5,500 | 3140×1610×1650 |
QC12Y-8×3200 | 4×2000 | 1 ° 30’ | ≥12 | 20-600 | 11 | 6,600 | 3840×1610×1650 |
QC12Y-8×4000 | 8×4000 | 1 ° 30’ | ≥8 | 20-600 | 11 | 8,500 | 4680×1705×1700 |
QC12Y-8×5000 | 8×5000 | 1 ° 30’ | ≥7 | 20-750 | 15 | 21,000 | 5786×2252×2310 |
QC12Y-8×6000 | 8×6000 | 1 ° 30’ | ≥5 | 20-750 | 15 | 28,000 | 6900×2570×2280 |
QC12Y-10×2500 | 10×2500 | 2 ° | ≥10 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
QC12Y-10×3200 | 10×3200 | 1 ° 48’ | ≥10 | 20-600 | 15 | 9,500 | 3975×1750×1950 |
QC12Y-10×4000 | 10×4000 | 2 ° | ≥12 | 20-800 | 18.5 | 15,000 | 4800×2280×2100 |
QC12Y-12×2500 | 12×2500 | 2 ° | ≥11 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
QC12Y-12×3200 | 12×3200 | 1 ° 30’ | ≥10 | 20-800 | 18.5 | 12,500 | 4020×2050×2230 |
QC12Y-12×4000 | 12×4000 | 2 ° | ≥7 | 20-800 | 18.5 | 18,000 | 4820×2300×2300 |
QC12Y-16×2500 | 16×2500 | 2 ° | ≥8 | 20-800 | 18.5 | 15,000 | 3400×2060×2350 |
QC12Y-16×3200 | 16×3200 | 2 ° | ≥7 | 20-800 | 18.5 | 16,300 | 4062×2300×2350 |
QC12Y-16×4000 | 16×4000 | 2 ° | ≥5.7 | 25-800 | 30 | 20,000 | 4850×2300×2300 |
QC12Y-20×2500 | 20×2500 | 2 ° 30’ | ≥6 | 20-800 | 37 | 14,000 | 3440×2088×2570 |
QC12Y-20×3200 | 20×3200 | 2 ° 30’ | ≥5 | 35-800 | 37 | 20,000 | 4150×2310×2730 |
QC12Y-20×4000 | 20×4000 | 2 ° 30’ | ≥5 | 30-1000 | 37 | 25,000 | 4920×2400×2770 |
QC12Y-20×5000 | 20×5000 | 2 ° 30’ | ≥4 | 20-800 | 37 | 30,000 | 5900×3000×3300 |
QC12Y-25×2500 | 25×2500 | 3 ° | ≥5 | 40-800 | 37 | 16,500 | 3450×2300×2730 |
QC12Y-25×3200 | 25×3200 | 3 ° | ≥4 | 40-1000 | 37 | 26,000 | 4100×2400×2770 |
1 PVC film covered hydraulic shearing machine
1.All machines have been tested by 48 hours before ship out.
2.All products have 2 year warranty.
3.Supported 24 hours online service. If any problems happen, our team will do our best to solve the problems.
4.If any component is damaged during guarantee time. we can send the component to the customer by DHL freely.
1.Name:Maanshan Hellen CNC Machine Tool Co.,LTD
Phone:+86-18755529493 Fax:+86-05556727629
Skype:cnchellen
Web: http://hlmt.en.china.cn/
2.Brand:HELLEN
3.Manufacture: Hydraulic press, Press brake,Shearing machine,Punching and Stamping machine,Moulds and Mixer accessories .
