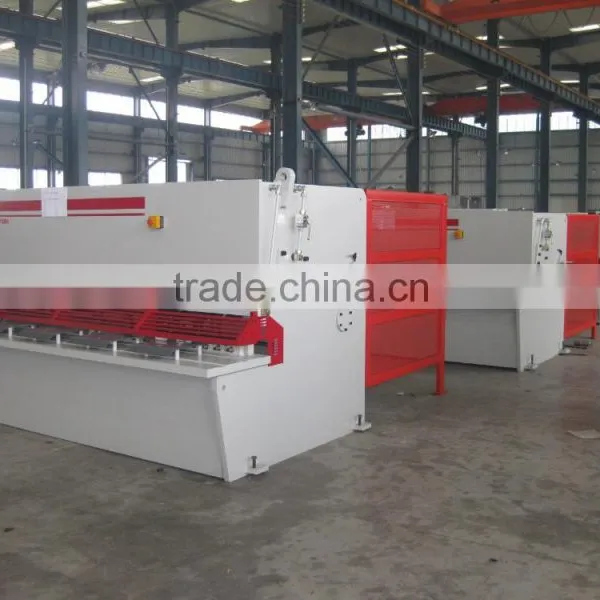

Scrap shear machine, metal cutting machine 6x2500

1. All steel welded structure, vibrating treatment of ageing for removal of internal stress, with good rigidity and stability.
2. Integrated hydraulic transmission system, with good reliability.
3. Triple support rolling guide rail to eliminate gaps of support and enhance shearing quality.
4. Mechanical back gauge with manual fine tuning, and digital indication(or for other choice CNC system, CNC system and the location of encoder closed-loop control system, high speed, high accuracy, good stability, can ensure precisely that back gauge after the precision of size displacement, and the numerical control system has the function of automatic detection precision compensation and the additional functions).
5. Clearance in between shearing blades adjusted by hand wheel or automatic to be quick, accurate and convenient. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
6. Upper blade holder has inward structure to facilitate material feed in and also enhance accuracy of the work piece.
7. Function of shearing in sections, function of aligning with light.
8. Optional: rear material holding device (or for other choice)

    Components and parts :

    Hydraulic system: Omega(USA);

    Pump: Gear pump;

    Electrics: Germany Te/Omron;

    O-rings: Japanese NOK;

    Ball screw: TAIWAN HIWIN;

    Line guide rail: TAIWAN HIWIN;

    Foot Switch: Karcon (South Korea)

    NC Controller: Elgo P9521 (Germany)

    standard equipments:

    Segmented upper blade 1set (two sides can be use)
    Lower blade 1set (four sides can be use)
    Front supporting arms 3
    Emergency stop button;

    Back, and front safty fence;

    Shadow line lighting

    Safety foot switch

    Foundation bolts 1set

    Manuals and diagram 1book
