liquid co2 storage tank filling machine
KF01-L liquid co2 storage tank filling machine
liquid co2 storage tank filling machine
Machine introduction

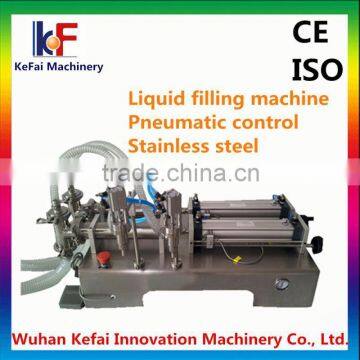

1.Semi automatic liquid filling machine is piston measuring. It uses the compressed air as the power to work,
only a little electric power for the indicator light. So this liquid filling machine can work at any explosive or
combustible environment by just stepping on the pedal.
2. This model semi automatic liquid filling machine does self-priming filling.
Driven by the air cylinder, the piston pump liquid material into measuring cylinder,then the piston push the liquid into to the bottle.
3.The filling capacity can be adjusted easily,by changing air cylinder measuring range.
All the semi automatic liquid filling machine parts contacted with the liquid material is made of stainless steel.
4.Pneumatic element of the semi automatic liquid filling machine use brand clyinder.
5.The liquid filling machine for small industries has single nozzle and double nozzle model
6.This semi automatic liquid filling machine is widely used for the water, beverage, medicine,food field,all the material in the liquid state.
It isn't suitable for the liquid with granule or air bubble.
7.As it's penumatic, so this semi automatic liquid filling machine has to match with the pneumatic equipment (air compressor).
liquid co2 storage tank filling machine
Techinical Parameters:
Machine model |
KF01-L125 |
KF01-L 250 |
KF01-L 500 |
KF01-L 1000 |
KF01-L2500 |
KF01-L5000 |
Filling speed |
10-35 pcs/min(take water for example) |
|||||
Filling range |
2-125ml |
2-250ml |
5-500ml |
100-1000ml |
500-2500ml |
1000-5000ml |
Air pressure |
0.4~0.6mpa |
|||||
Filling error |
±1% |
|||||
Machine size |
80(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
88(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
125(L) ×400(W) ×300(H)mm |
139(L) ×420(W) ×380(H)6mm |
Machine weight |
30 Kg |
35Kg |
40Kg |
45Kg |
60 Kg |
75 Kg |
liquid co2 storage tank filling machine
We can Customize the automatic filling machine lines for you, just contact us for detailed requirements .
Welcome to Visit our factory !
...
