Home > Products > Filling Machine > liquid mouse filling machine
liquid mouse filling machine
- 300 Set / Sets per Month
- liquid mouse filling machine by Ningbo/Shanghai/Qingdao Port China
- T/T L/C D/P D/A Credit Card PayPal
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, $key$ | Packaging Type: | Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch, Other, Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch, $key$ |
Packaging Material: | Glass, Metal, Paper, Plastic, Wood, Other, Glass, Metal, Paper, Plastic, Wood, $key$ | Automatic Grade: | Semi-Automatic | Driven Type: | Pneumatic |
Voltage: | 220v / 110v | Power: | 0.1kw | Place of Origin: | Hubei, China |
Brand Name: | Kefai | Model Number: | KF01-L | Dimension(L*W*H): | 806*180*690mm |
Weight: | 38KG | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
liquid mouse filling machine
KF01-L liquid mouse filling machine
liquid mouse filling machine

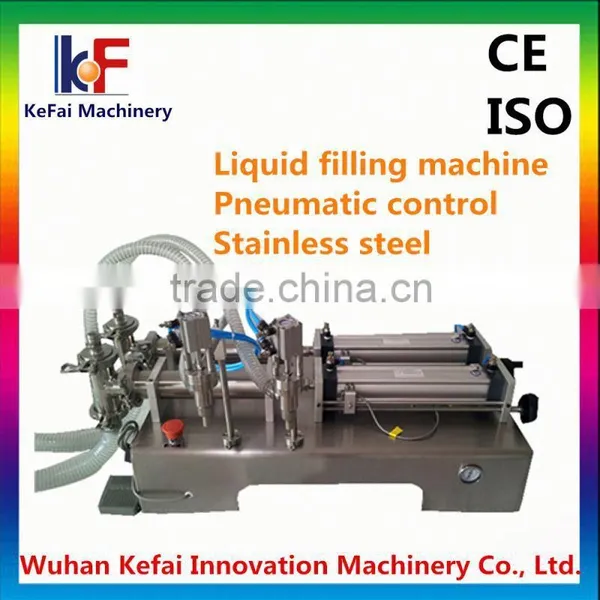

Machine introduction
1.Semi automatic liquid filling machine is piston measuring. It uses the compressed air as the power to work,
only a little electric power for the indicator light. So this liquid filling machine can work at any explosive or
combustible environment by just stepping on the pedal.
2. This model semi automatic liquid filling machine does self-priming filling.
Driven by the air cylinder, the piston pump liquid material into measuring cylinder,then the piston push the liquid into to the bottle.
3.The filling capacity can be adjusted easily,by changing air cylinder measuring range.
All the semi automatic liquid filling machine parts contacted with the liquid material is made of stainless steel.
4.Pneumatic element of the semi automatic liquid filling machine use brand clyinder.
5.The liquid filling machine for small industries has single nozzle and double nozzle model
6.This semi automatic liquid filling machine is widely used for the water, beverage, medicine,food field,all the material in the liquid state.
It isn't suitable for the liquid with granule or air bubble.
7.As it's penumatic, so this semi automatic liquid filling machine has to match with the pneumatic equipment (air compressor).
liquid mouse filling machine
Techinical Parameters:
Machine model | KF01-L125 | KF01-L 250 | KF01-L 500 | KF01-L 1000 | KF01-L2500 | KF01-L5000 |
Filling speed | 10-35 pcs/min(take water for example) | |||||
Filling range | 2-125ml | 2-250ml | 5-500ml | 100-1000ml | 500-2500ml | 1000-5000ml |
Air pressure | 0.4~0.6mpa | |||||
Filling error | ±1% | |||||
Machine size | 80(L) × 180(W) ×690(H)mm | 880(L) ×230(W) ×665(H)mm | 88(L) × 230(W) ×665(H)mm | 1065 (L) ×230(W) ×665(H)mm | 125(L) ×400(W) ×300(H)mm | 139(L) ×420(W) ×380(H)6mm |
Machine weight | 30 Kg | 35Kg | 40Kg | 45Kg | 60 Kg | 75 Kg |
liquid mouse filling machine
We can Customize the automatic filling machine lines for you, just contact us for detailed requirements .
Welcome to Visit our factory !
...
