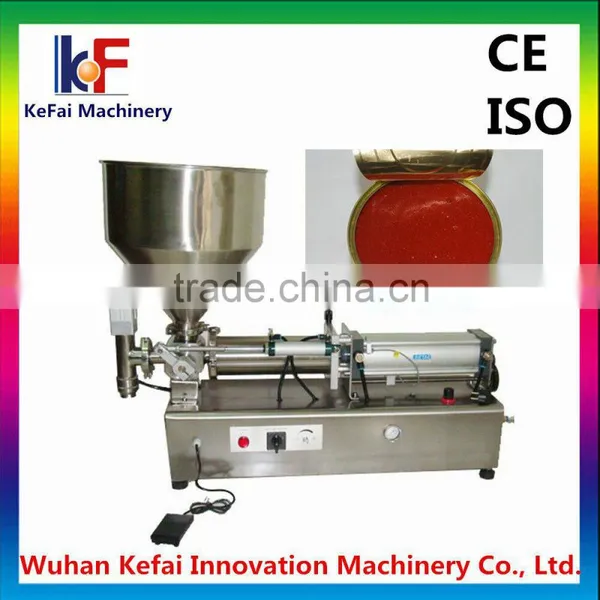

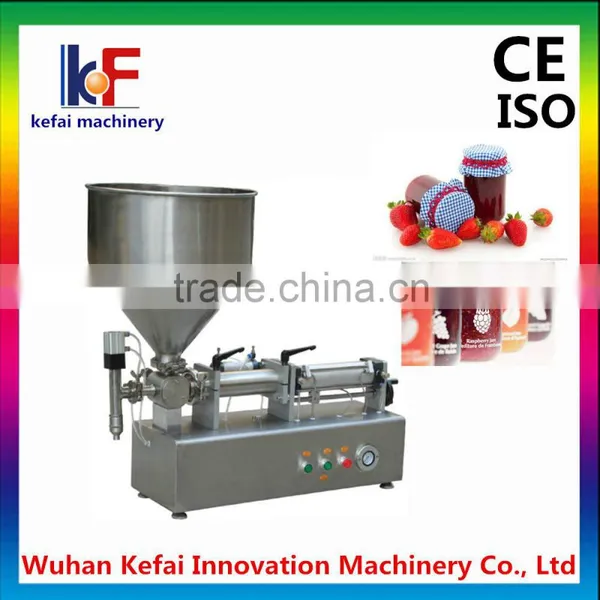

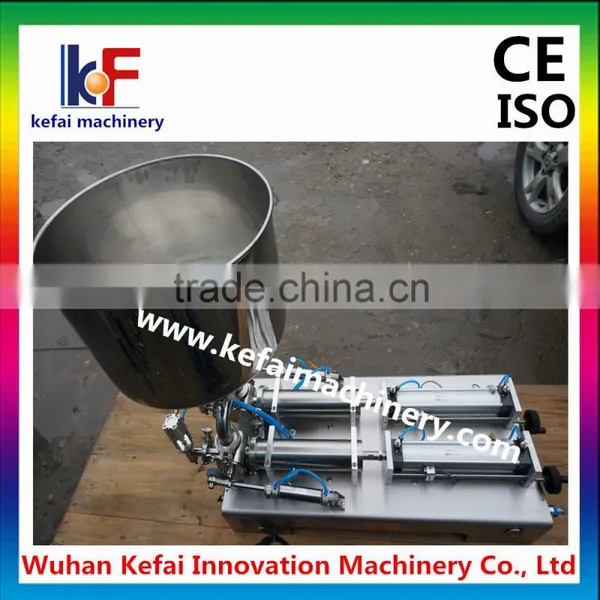

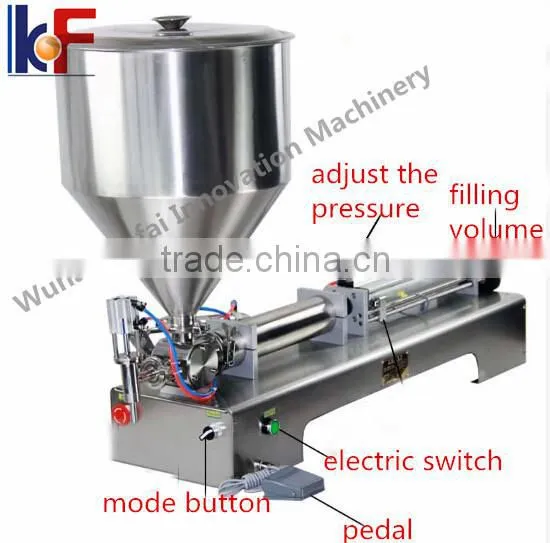

Manufacturer of semi-automatic tomato paste filling machine
KF01-PC
Product Description
1.Material 304 Stainless steel, absolutely adopts Pneumatic Filling, and suitable for Ointment.
Total Pneumatic Paste Filling Machine ( total pneumatic, doesn't need electricity. )
2.The Model absolutely uses the Pneumatic Element. It is simple and reasonable in design,
high in accuracy and easy in operation.
3.With no need for power supply, the machine is safe and with the personalized design,
can mlobster sauceeet the modern enterprises' requirements.
4.It is working under the state without electricity and safer to operate.

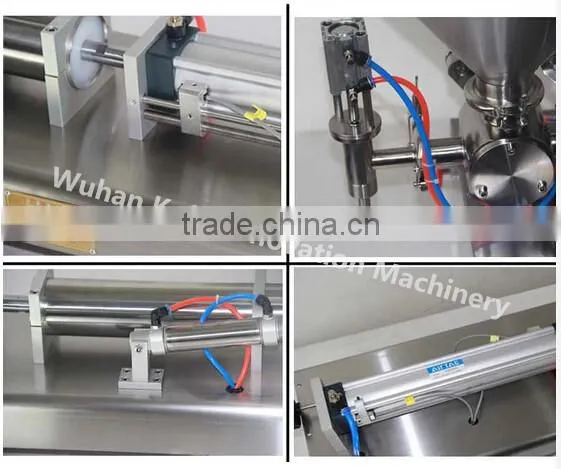

And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac.
5.The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed
can be adjusted at will, with high filling accuracy.
6.Filling head adopts anti-leakage, anti-pull and with diving filling device.
Principle
1.Ointment and liquid double purpose filler is used in the quantitative filling of water, oil, emulsion and ointment.
It uses the piston pump to fill and regulates the filling scope by the cylinder stroke.

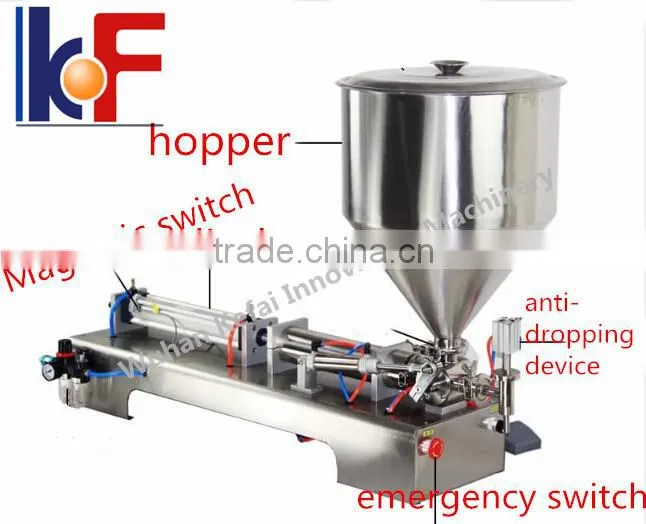

2.The feed methods have two kinds self-suction and hoper type. The self-suction directly sucks from the container and the hoper type puts the materials into the hopper to fill.
3.This machine has convenient and swift measurement, good shape and compact structure. The places contacting
with the materials are made of high quality stainless steel (usually using 304, the Medical 316L).
4.The machines unique valve structure realizes the double purposes of ointment and liquid,
which is the ideal and economical equipment for medicine, daily chemical products and fine chemical industry.
Advantages:
1. Aesthetic design, compact structure and high filling accuracy
2. No leaking when turned off.
3. Pneumatic control system, easy to operate and maintain.
4. Contact parts are stainless steel.
5. Equipped with a displacement indicator, higher accuracy measuring, stepless speed control.
6. Stable and smooth working
7. Air pressure stability, material uniformity and filling speed will affect the filling accuracy.
8. Materials, size of filling head and skills of operator will affect the filling speed.
9. This machine has two filling ways, foot and automatic, and they can be switched randomly.
10. This machine uses the extension valve for is wear-resisting, acid proof, the thermostable four fluorine material, when clean cannot at will strike, the collision.
Technical parameters:
Machine model |
KF01-PC100 |
KF01-PC200 |
KF01-PC500 |
KF01-PC1000 |
KF01-PC2500 |
KF01-PC5000 |
Filling speed |
10-35 pcs/min(take water for example) |
|||||
Filling range |
1-100ml |
10-200ml |
50-500ml |
100-1000ml |
500-2500ml |
1000-5000ml |

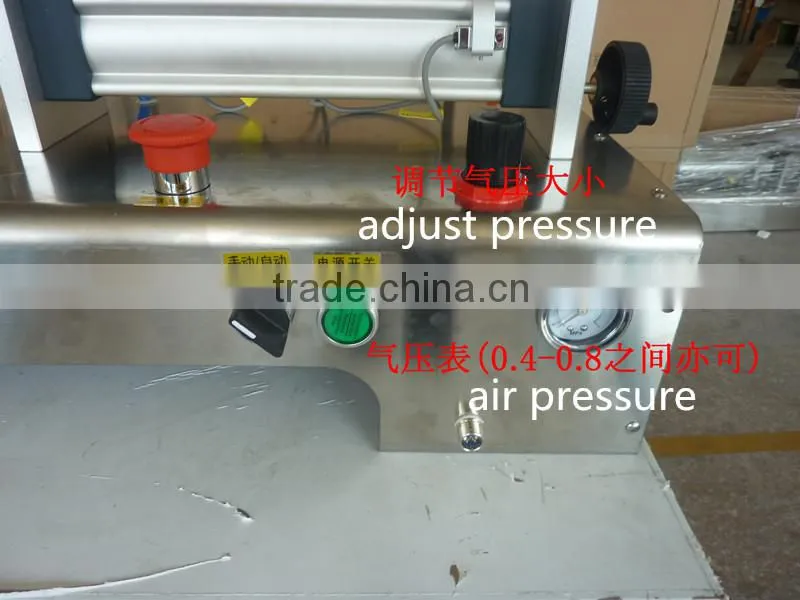

Air pressure |
0.4~0.6mpa |
|||||
Filling error |
±1% |
|||||
Machine size |
806(L) × 180(W) ×690(H)mm |
880(L) ×230(W) ×665(H)mm |
880(L) × 230(W) ×665(H)mm |
1065 (L) ×230(W) ×665(H)mm |
1250(L) ×400(W) ×300(H)mm |
1390(L) ×420(W) ×380(H)6mm |
Machine weight |
30 Kg |
35Kg |
40Kg |
45Kg |
60 Kg |
80 Kg |
Application:
- It can fill liquid or some viscosity material, such as tomato paste, chili paste, cream, sunblock cream
peanut butter, strawberry jam, toothpaste etc.
- The final package can be small sachet, bag, bottle, can, plastic tube etc.
- It’s widely used in food industry, chemical industry and others
jam filling machine
....
