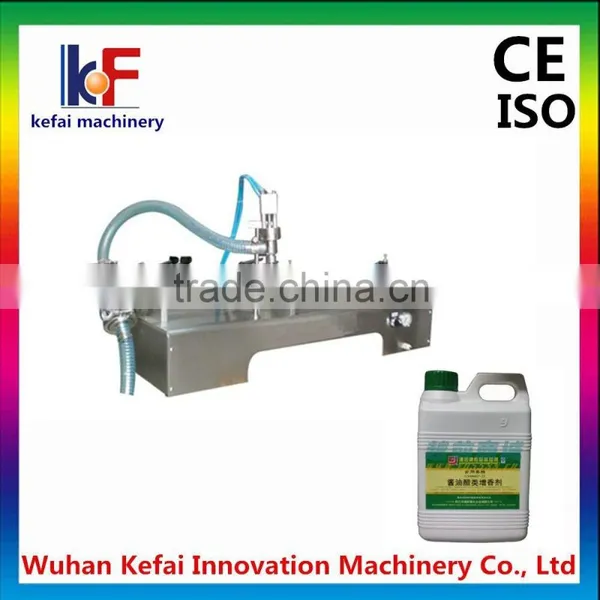

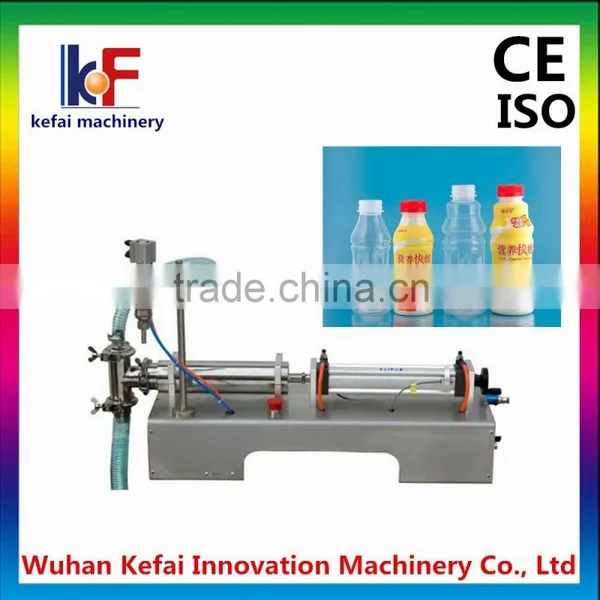

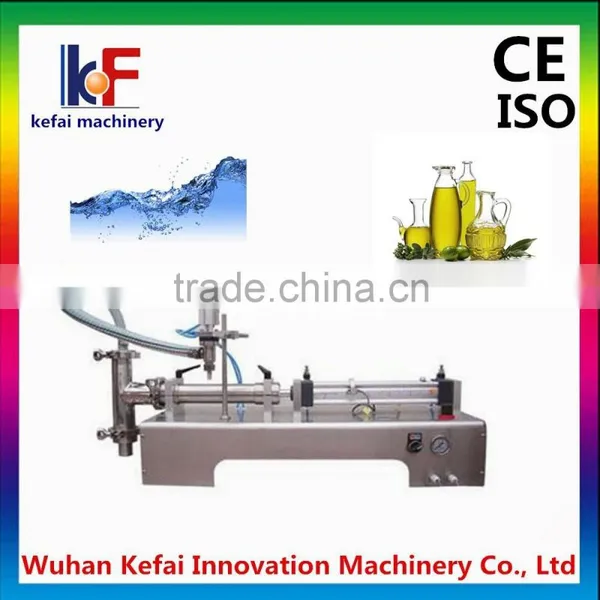

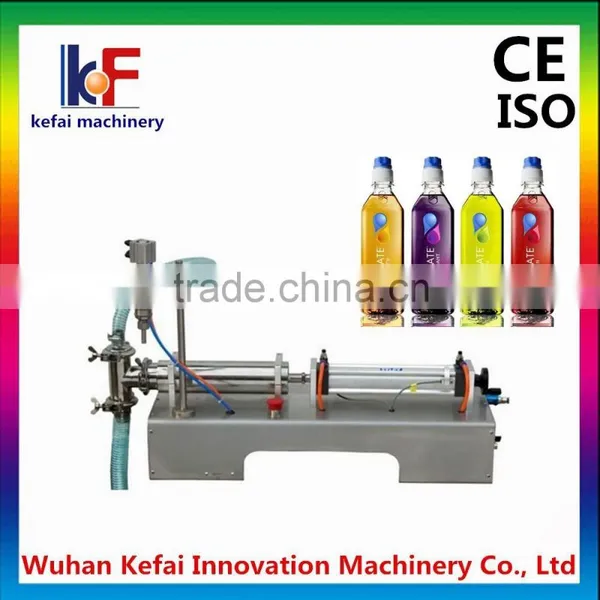

single/double head semi automatic liquid filling machine manufacturing for bottle water
single/double head semi automatic liquid filling machine manufacturing for bottle water
Overview
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Wuhan Kefai Innovation Machinery Co., Ltd. is a manufacturer of filling machine with well-equipped testing facilities and strong technical force.
- With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in packaging industry and other industries.
- Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
- We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
single/double head semi automatic liquid filling machine manufacturing for bottle water
Technical Parameter
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model |
KF01-L100 |
KF01-L200 |
KF01-L500 |
KF01-L1000 |
KF01-L2500 |
KF01-L5000 |
|
Filling range |
5-125ml |
10-250ml |
50-500ml |
100-1000ml |
500-2500ml |
1000-5000ml |
|
Air pressure range |
4-6Kg/cm² |
4-6Kg/cm² |
4-6Kg/cm² |
5-8Kg/cm² |
5-8Kg/cm² |
5-8Kg/cm² |
|
Filling speed |
30-35 bottles/min |
25-30 bottles/min |
20-25 bottles/min |
15-20 bottles/min |
10-15 bottles/min |
5-10 bottles/min |
Pressure |
0.4-0.6mpa |
0.4-0.6mpa |
0.4-0.6mpa |
0.5-0.8mpa |
0.5-0.8mpa |
0.5-0.8mpa |
|
Filling accuracy |
≤ ± 0.25-0.5% |
|||||
|
Electrical original |
200 / 110V,50 / 60HZ |
|||||
You can choose your filling range ! | ||||||
Machine Construction
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

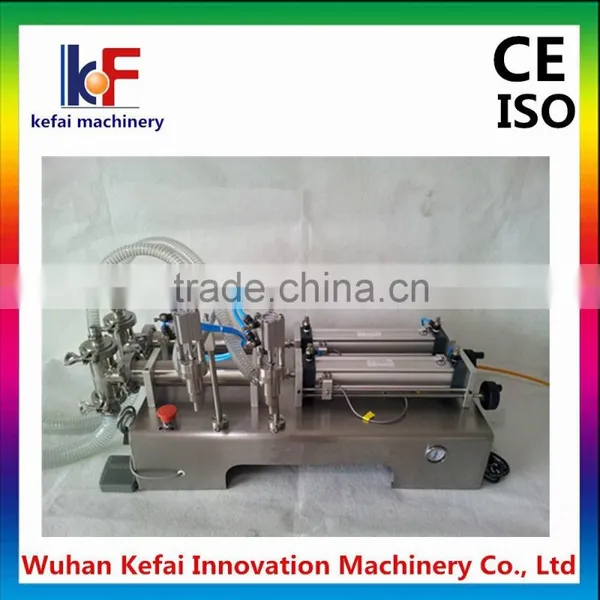

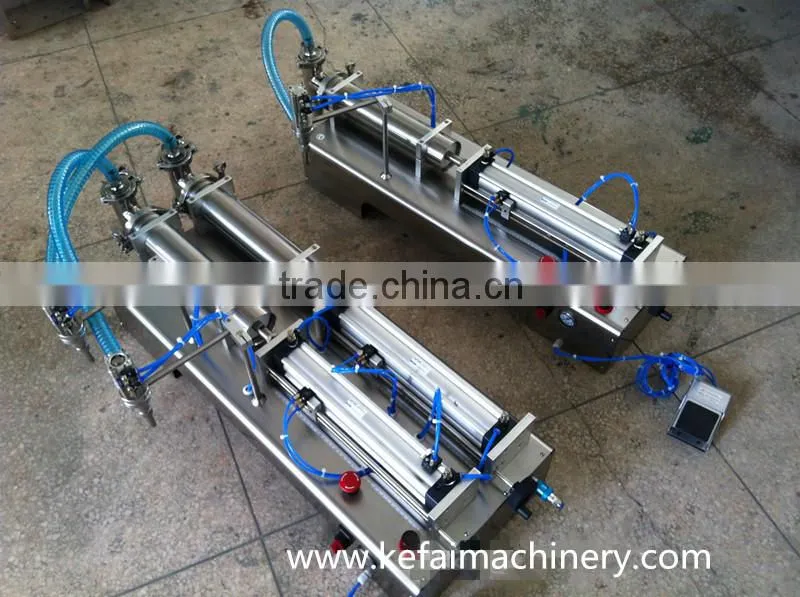

| 1)This is a brand new single/double head piston filler.All stainless steel, Brand Cylinder. |
| 2)Stainless steel sanitary tri-clamp connections, connection "T's", check valves and product cylinder ,are ideally suited for food, pharmaceutical and specialty industries. |
| 3)assembly for easy wash-down ,includes check valves and cylinder. |
| 4)Easy to maintain, ready to use. |
| 5)The filling body's assembly can be moved in the place where it's convenient for you to fill or where you wish! |
| 6)Pneumatic operation is suitable for hazardous areas. |
| 7)Easy adjusting fill volume control. |
Accessories
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Operating Principle
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The main components of the equipment include self-suction tube, material cylinder, cylinder, check valve, control parts, connectors, seals ect.
The equipment adopts the piston push-pull rod structure, the main cylinder to produce strong force to push-pull the piston head, through the inlet, outlet check valve action, let the stainless steel cylinder within the air discharged from the filling head, so the material cylinder to form a vacuum cavity, material cylinder into the state of negative pressure. Main cylinder push-pull rod back to the piston head, the inlet check valve opens, and the outlet check valve closes. Due to the pressure difference between inside and outside, the material will be sucked into the cylinder. This is the suction process.
When the suction process finishes, trip position rod touches a travel switch and the main cylinder stops. The machine is standby state. When the operator (manual mode) switch on the footswitch, the inlet check valve closes and the outlet check valve opens. The main cylinder push-pull rod push the piston Material from the feed cylinder is squeezed into the filling head, then filling into the packaging container, the filling process finishes.
The entire filling process includes:
1.Self-suction tube inserted in the bucket
2.Air discharging
3.Material cylinder suction
4.Filling. The machine is preliminary test (self-suction tube inserted in the bucket & air discharged), then the machine can be adjusted for filling. Setting the filling volume is set through rotating the handle to adjust piston trip to achieve.
The details of the principle of the machine are as follows:
We can customize Automatic bottle liquid filling machine lines for your ! Pls contact and tell us your detailed requirements.
We warmly welcome you all to offer your valuable advices
to us on any aspects. Contact Us Now !
....
