Specifications
spte tinned steel roll1)Standard: BS, DIN, GB, JIS
2)Grade: SPHC SPCC MR
3)Temper: T1, T2, T3,T4,T5,T6,DR7,DR8
0.16-0.40mm T2.5 high quality spte tinned steel roll can making
Scroll Cutting Tinplate sheet is for making all types of containers such as food cans, beverage cans, and artistic cans, tea cans, painting cans, chemical package cans and dry food package cans, metal printing etc
Infomation of spte tinned steel roll
| NO. | More Detail | |
| 1 | Standard | GB2520-2000, JIS G3303-2002 and DIN EN10202-2001 |
| 2 | Material | SPCC,SPHC,SPHE,MR |
| 3 | Thickness | available:0.15mm--0.5mm |
| 4 | Width | available:600--1200mm |
| 5 | Temper grade | T1-T5,DR8-DR10,BAandCAboth. |
| 6 | Tin coating | ordinary 2.8g/2.8g, 5.6g/5.6g, We also can produce according to customers' requests |
| 7 | Coil diameter | ID 420/ 508mm, OD from 1,000 to 1,250mm |
| 8 | Package |
Thin plastic film, rust-proof paper, metal cover, metal corner, metal band, wooden skid. by sheet or coils according customer's require. |
| 9 | Applications |
metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
The Coating Weight:
| Type | Designation of tin coating weight | Min.average tin coating weight(g/m2) | Former Coating Designation |
| Equal tin coating | 1.4/1.4 | 1.2/1.2 | #15 |
| 2.2/2.2 | 2.0/2.0 | #20 | |
| 2.8/2.8 | 2.45/2.45 | #25 | |
| 5.6/5.6 | 5.05/5.05 | #50 | |
| 8.4/8.4 | 7.55/7.55 | #75 | |
| 11.2/11.2 | 10.1/10.1 | #100 | |
| Differentially Coating | 1.4/2.8 | 1.2/2.45 | #15/25 |
| 2.2/2.8 | 2.2/2.45 | #20/25 | |
| 2.8/5.6 | 2.45/5.05 | #25/50 | |
| 2.8/8.4 | 2.45/7.55 | #25/75 | |
| 2.8/11.2 | 2.45/10.1 | #25/100 | |
| 5.6/8.4 | 5.05/7.55 | #50/75 | |
| 5.6/11.2 | 5.05/10.1 | #50/100 | |
| 8.4/11.2 | 7.55/10.1 | #75/100 |
Surface Finish
Code |
Classification |
Specific Finishes |
B |
Bright Finish |
A luster surface provided by a flow-brightened tin coating on a smoothly grindstone finished steel base. |
R |
Stone Finish |
A luster surface provided by a flow-brightened tin coating on a steel base characterized by a directional grindstone pattern. |
S |
Silver Finish |
A luster surface provided by a flow-brightened tin coating on a coarse dull finish steel base. |
M |
Matte Finish |
A dull surface provided by an unmelted coating generally on dull finished steel base. |
Surface Finish of spte tinned steel roll
Code |
Chinese Stardard |
Japaness Standard |
American Standard |
European Standard |
International Standard |
|
GB/T 2520-2000 |
JIS G3303-2002 |
ASTM A623M-2002 |
DIN EN 10203-1991 |
ISO 11949-1995 |
T-2 |
TH52+SE |
T-2 |
T-2(53) |
T52 |
TH52+SE |
T-2.5 |
TH55+SE |
T-2.5 |
|
|
TH55+SE |
T-3 |
TH57+SE |
T-3 |
T-3(T57) |
T57 |
TH57+SE |
|
|
|
|
|
|
T-4 |
TH61+SE |
T-4 |
T-4(T61) |
T61 |
TH61+SE |

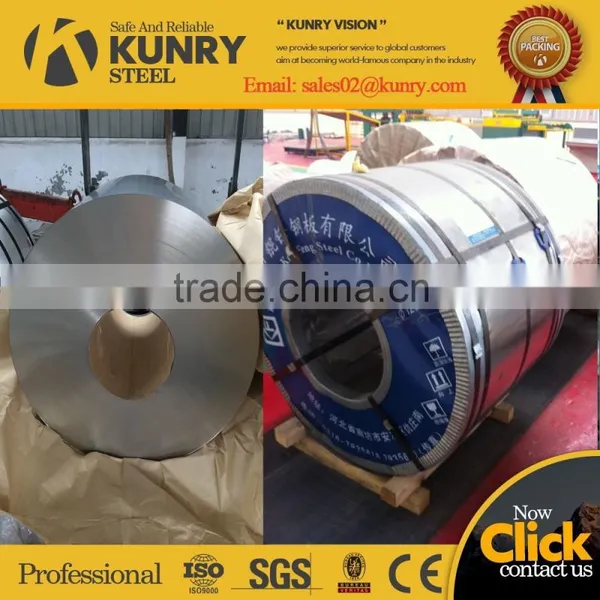

The Packaging of spte tinned steel roll
Kunry have perfect packaging for export tinplate to all over the world.
The Applications of tinplate :
Kunry have a world-class tinplate test equipment.
If you want purchase tinplate coils from kunry please contact with me immediately !
