CO2 tech china no.1 xps cove cornice extrusion line
1. General introduction of china no.1 xps cove cornice extrusion line
XPS production line design principles by hot extrusion extruded polystyrene foam profile. The main feature of this process is a mixture of foaming agent in the continuous mixing, the mixer where the components of each group by a pneumatic dosing device the mixture continuously fed extruder, the mixture in the extruder reaches the melting point by heating polystyrene. The mixture was thoroughly mixed and the foaming agent through a die extrusion, to produce a variety of shapes XPS moldings.
2. Technical parameters
Model |
YG-PSXT1000 |
YG-PSXT2000 |
Main material |
GPPS |
GPPS |
Foaming agent |
Butane/Freon |
Butane/Freon |
Capacity |
500-1200kg/24 hours |
500-2000kg/24 hours |
Product thickness |
4-12mm |
4-15mm |
Product width |
20-120mm |
50-160mm |
Product density |
50-100kg/m³ |
50-100kg/m³ |
Cooling |
Water/Wind |
|
Installation power |
60kw |
100kw |
Consumption power |
20kw |
30kw |
Power supply |
380V 50HZ 3Phase 4Lines |
|
Installation size |
25*4.5*3.2m |
28*4.5*3.2m |
Overall size |
23*2.3*2.2m |
25*2.5*2.2m |
Weight |
11 ton |
13 ton |
Plant area (at least) |
200-300 square meters |
|
/watch?v=E4oLK3LtLsc
/watch?v=X7OGUYJfgjE
/watch?v=8KyenKGj44o
/watch?v=uM-gyFGgT0c
/watch?v=EUb1DRK2nmg
3. Machine show
Model: YG-XPSXT2000D Double-Screw Polystyrene XPS Production Line
Model: YG-XPSXT1000S Single-Screw Polystyrene XPS Production Line in Our Factory
4. Production Process

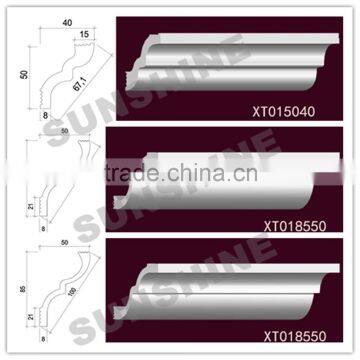

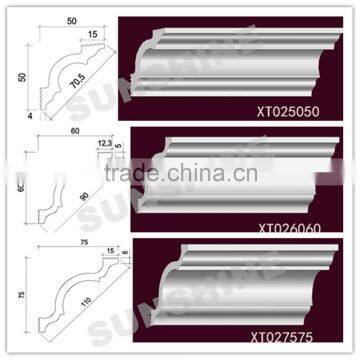

5. XPS cornice product
We also sell XPS cornice product, we have 8 sets molds now. And also we can accept customized.
Regarding the color, you can paint different color or add different colorant when mixing the raw material.
6. Installation ways
Please follow the picture one by one, then you will get perfect PS ceiline cornice.
7. Packing details
Reinforced with angle iron.
Plywood packaging, do not need Fumigation Certificate.
Longkou Sunshine Machinery Co., Ltd.
Mob/Wechat/WhatsApp: 0086-18266387035
Skype: 1028
QQ: 3125410939
Web:
Why Choose SUNSHINE?
First: Because we are the only professional manufacturer of XPS foam ceiling cornice production line.
Second: In China, we are the only professional manufacturer of XPS cornice (Polystyrene Cornice)
Third: We already have Invention Patent of CO2 foaming agent injection system and XPS Polystyrene cornice production technology. Any factory or business company which sell XPS cornice must apply authority from our company. See the following Patent.
