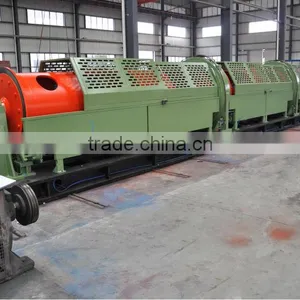

Help CenterTubular Strander JG-630/12+1250 (big Bearing)
Related Products
-
X-Ray Cable Derivometer Model CCTS-8000US$ 118,000 - 130,000MOQ: 1 Set -
Tubular Strander Model JGG Bearing TypeUS$ 70,000 - 120,000MOQ: 1 Set
-
Rigid Strander Model JLK Series With Individual Motor DriveNegotiableMOQ: 1
-
Non-slip Aluminum/Aluminum Alloy Rod Breakdown Machine Model LFD450NegotiableMOQ: 1
-
Intermediate Wire Drawing MachineNegotiableMOQ: 1
Specifications

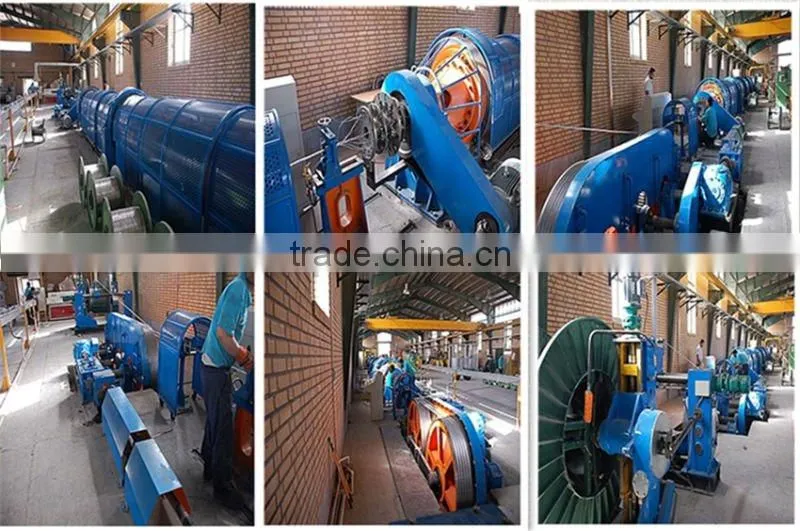

Tubular Strander JG-630/12+1250 (big bearing)1.Tubular Strander, tubular stranding machine
2. copper wire strander stranding mahine
3. ACSR, steel ropes,tubular strander
1. Application
This Tubular Strander is used to strand steel wire, as well as copper wire or strands.
2. Technical Specifications
No. |
Description |
Data |
|
1 |
Single wire diameter |
Cu or steel: 1.3-3.5, Al: 1.7-4.6 |
|
2 |
Max. stranding outer diameter |
φ25 mm |
|
3 |
Rotation speed of tube |
350 r/min |
|
4 |
Diameter of haul-off capstan |
φ1250×2 mm |
|
5 |
Range of pitch |
31.94~485.77mm |
|
6 |
Main motor |
45 kW, Y280M-8, 740 r/min |
|
7 |
Take-up & traversing stand |
Type: φ1600 shaftless Bobbin size applicable: PN800PN1600 Type of motor: JLJ160-60/6 Toque: 60N.m Elevating motor: 1.5 kW Moving motor: 1.1 kW Take-up rotation speed: 18.8~47.6 r/min |
|
8 |
Delivery speed |
8.56170m/min |
|
9 |
Pay-off bobbin size for core (D×d×Lmax) |
PND500 500×280×375 (boreφ125) |
|
10 |
Pay-off bobbin size in tube (DxdxLmax) |
|
|
11 |
Take-up bobbin (D×d×L) |
PN800PN1600 |
|
12 |
Overall dimension (L×W×H) |
33000×2900×1600 |
|
13 |
Total weight |
32 tons |
|
14 |
Total installed power |
50kW |
3.Construction and Features
This machine is composed of pay-off stand, headstock, tube, bobbin holder, under-roller, die holder, haul-off capstans, brake, take-up & traversing stand, and safety hood.
