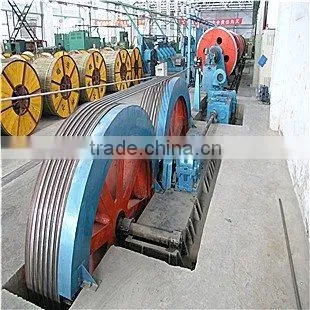

Rigid Strander Type JLK-630/6+12+18+24 (Batch Loading)

Rigid Strander Type JLK-630/6+12+18+24 (Batch Loading) thumbnail-1
Rigid Strander Type JLK-630/6+12+18+24 (Batch Loading) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
dongjiagang
Model Number:
JLK-630/6+12+18+24
Contact Supplier Request Quote Chat Now
Deyang Dongjiagang Electric Wire And Cable Machinery Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name dongjiagang
Model Number JLK-630/6+12+18+24

Specifications

Rigid strander works to strand long bare aluminum wire & bare copper wire.
Rigid frame strander
stranding machine
strander

1. Features

Rigid strander works to strand long bare aluminum wire & bare copper wire.
Rigid frame strander
stranding machine
strander



2. Main technical data

2.1. Diameter of single wire: Cu φ1.5-4.5 mm

                                         Al φ1.8-5.0 mm

2.2. Max. stranding outer diameter: φ45mm

2.3. Number of single wire: 61

2.4. Max. rotation speed of frame stranding cage

6-bobbin: rotation speed at 78~183 rpm; speed shift in 6-stage; pitch: 32~579 mm

12-bobbin: rotation speed at 67~156 rpm; speed shift in 6-stage; pitch: 38~680 mm

18-bobbin: rotation speed at 56~132.6 rpm; speed shift in 6-stage; pitch: 45~801 mm

24- bobbin: rotation speed at 48~111 rpm; speed shift in 6-stage; pitch: 53~951 mm

2.5. Full bobbin weight: Cu at 600kg, Al at 200kg

2.6. Haul-off linear speed: 6~45.6 mpm

2.7. Main motor: DC, Z4-250-12, 160 kW, 1500rpm

2.8. Pay-off bobbin size in cage: PND 630

2.9. Haul-off capstan size: φ2500 mm

2.10. Central pay-off bobbin size: PND630

2.11. Take-up bobbin size: PN 1600-PN3150

2.12. Total length of machine: 50m

2.13. Center height of machine: 1100mm

2.14. Time for start of machine: 15 seconds

2.15. Time for normal stop of machine: 15 seconds

2.16. Time for emergent stop of machine: 10 seconds

2.17. Total installed power: 200kW

2.18. Total weight of machine:  86 tons



3. Composition

3.1. PND 630 pay-off stand (end-shaft type): 1 set

3.2. Stranding cages for 6-bobbin, 12-bobbin 18-bobbin and 24-bobbin: 1 set for each, 4 sets in total

3.3. Photoelectric and mechanical length counter: 1 set

3.4. Batch loading and unloading device for 6-bobbin, 12-bobbin, 18-bobbin and 24-bobbin : 1 set for each, 4 sets in total

3.5.φ2500 haul-off device: 1 set

3.6. PN3150 shaftless type take-up & traversing stand: 1set

3.7. Closing die holder & pressing holder: 4 sets

3.9. Electrical control cabinet and operation desk: 1 set

3.10. Main gearbox and 36-stage transmission gearbox: 1 set

3.11. Protection hood and fence: 4 sets



4.  Mechanical and Electrical Integration

4.1. DC motor of Z4 series from well-established Chinese manufacturers;

4.2. Bearing for main transmission from Chinese well-known brand;

4.3. Main oil seals from Chinese high quality product;

4.4. PLC original from Siemens;

4.5. DC speed regulator original from Siemens;

4.6. 5.7 color touch screen MT510T from WEINVIEW, Taiwan.
