Help CenterChrome Steel Cylindrical Roller Bearing 32215 NU215
Related Products
-
Automotive Tapered Roller Bearing 32009x 32041x Quality ChoiceUS$ 0.92 - 0.92MOQ: 10 Sets -
Taper Roller Bearing 110*200*38mm 30222US$ 0.1 - 10MOQ: 10 Sets
-
Taper Roller Bearing 120*125*40mm 30224US$ 0.1 - 10MOQ: 10 Sets
-
Taper Roller Bearing 33120US$ 0.1 - 10MOQ: 10 Sets
-
Taper Roller Bearing 33121US$ 0.1 - 10MOQ: 10 Sets
high precision taper roller bearing 32213 32214 32215 32216 32217 rolller bearing
Tapered roller bearing type belongs to the separation bearing, have tapered roller bearing inner and outer race.According to these bearings on the column number of the roller is divided into single row, double row and four row circular cone roller bearings these different structure. Single row circular cone roller bearings can bear radial load and the single direction axial load. When bearing radial load, axial force component, would create a so when need another affordable bearing axial force in the opposite direction to balance
d:75mm
D:130mm
W:31mm
weight:1.74kg
high precision taper roller bearing 32213 32214 32215 32216 32217 rolller bearing
Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and other industries.
| bearing | sizemm | /kN | weight/kg | old meodel | ||||
|
d |
D |
T |
B |
Cr |
Cor |
W≈ | ||
| 32203 | 17 | 40 | 17.25 | 16 | 0.0 | 0.0 | 0.000 | 7503E |
| 32204 | 20 | 47 | 19.25 | 18 | 0.0 | 0.0 | 0.000 | 7504E |
| 32205 | 25 | 52 | 19.25 | 18 | 0.0 | 0.0 | 0.000 | 7505E |
| 32206 | 30 | 62 | 21.25 | 20 | 51.8 | 63.8 | 0.287 | 7506E |
| 32207 | 35 | 72 | 24.25 | 23 | 70.5 | 89.5 | 0.445 | 7507E |
| 32208 | 40 | 80 | 24.75 | 23 | 77.8 | 77.2 | 0.532 | 7508E |
| 32209 | 45 | 85 | 24.75 | 23 | 80.8 | 105.0 | 0.573 | 7509E |
| 32210 | 50 | 90 | 24.75 | 23 | 82.8 | 108.0 | 0.626 | 7510E |
| 32211 | 55 | 100 | 26.75 | 25 | 108.0 | 142.0 | 0.853 | 7511E |
| 32212 | 60 | 110 | 29.75 | 28 | 132.0 | 180.0 | 1.170 | 7512E |
| 32213 | 65 | 120 | 32.75 | 31 | 160.0 | 222.0 | 1.550 | 7513E |
| 32214 | 70 | 125 | 33.25 | 31 | 168.0 | 238.0 | 1.640 | 7514E |
| 32215 | 75 | 130 | 33.25 | 31 | 170.0 | 242.0 | 1.740 | 7515E |
| 32216 | 80 | 140 | 35.25 | 33 | 198.0 | 278.0 | 2.130 | 7516E |
| 32217 | 85 | 150 | 38.5 | 36 | 228.0 | 325.0 | 2.680 | 7517E |
| 32218 | 90 | 160 | 42.5 | 40 | 270.0 | 395.0 | 3.440 | 7518E |
| 32219 | 95 | 170 | 45.5 | 43 | 302.0 | 448.0 | 4.240 | 7519E |
| 32220 | 100 | 180 | 49 | 46 | 340.0 | 512.0 | 5.100 | 7520E |
| 32221 | 105 | 190 | 53 | 50 | 380.0 | 578.0 | 6.260 | 7521E |
| 32222 | 110 | 200 | 56 | 53 | 430.0 | 665.0 | 7.430 | 7522E |
| 32224 | 120 | 215 | 61.5 | 58 | 478.0 | 758.0 | 9.260 | 7524E |
| 32226 | 130 | 230 | 67.75 | 64 | 552.0 | 888.0 | 11.400 | 7526E |
| 32228 | 140 | 250 | 71.75 | 68 | 645.0 | 1050.0 | 14.400 | 7528E |
| 32230 | 150 | 270 | 77 | 73 | 720.0 | 1180.0 | 18.200 | 7530E |
| 32232 | 160 | 290 | 84 | 80 | 858.0 | 1430.0 | 23.300 | 7532E |
| 32234 | 170 | 310 | 91 | 86 | 968.0 | 1640.0 | 28.600 | 7534E |
| 32236 | 180 | 320 | 91 | 86 | 998.0 | 1720.0 | 29.900 | 7536E |
| 32238 | 190 | 340 | 97 | 92 | 1120.0 | 1900.0 | 36.100 | 7538E |
| 32240 | 200 | 360 | 104 | 98 | 1320.0 | 2180.0 | 43.200 | 7540E |
| 32244 | 220 | 400 | 114 | 108 | 0.0 | 0.0 | 0.000 | 7544E |
| 32248 | 240 | 440 | 127 | 120 | 0.0 | 0.0 | 0.000 | 7548E |
| 32252 | 260 | 480 | 137 | 130 | 0.0 | 0.0 | 0.000 | 7552E |

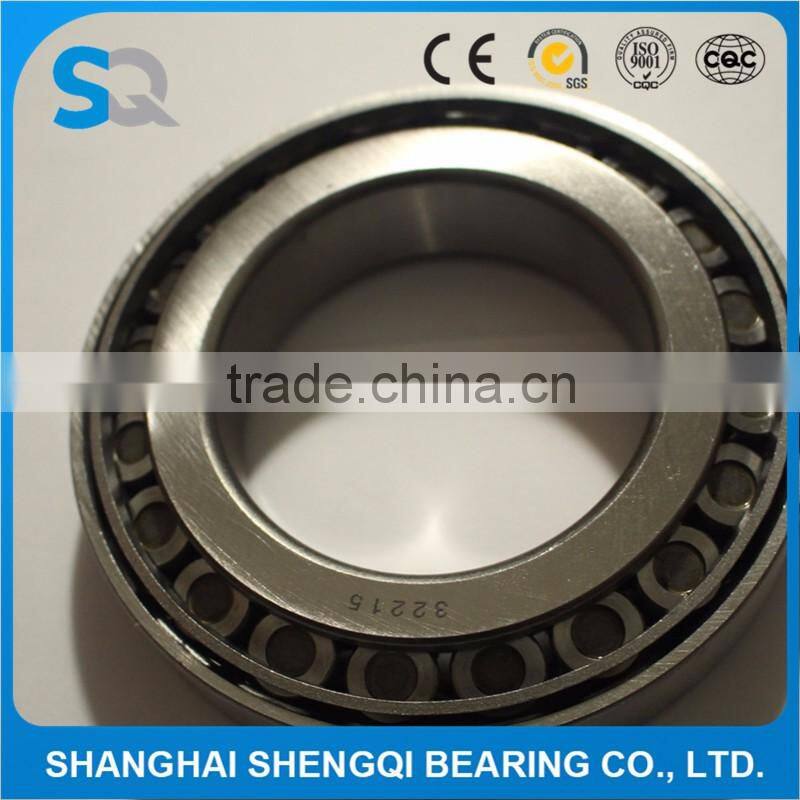

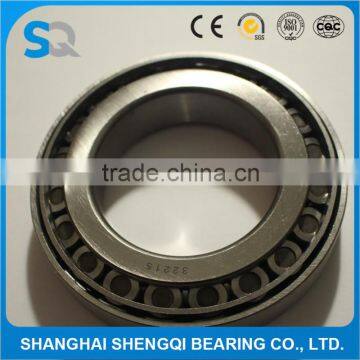

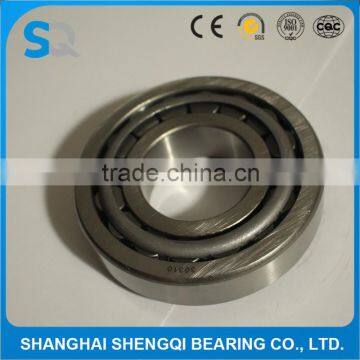

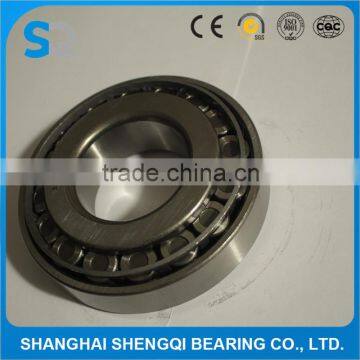

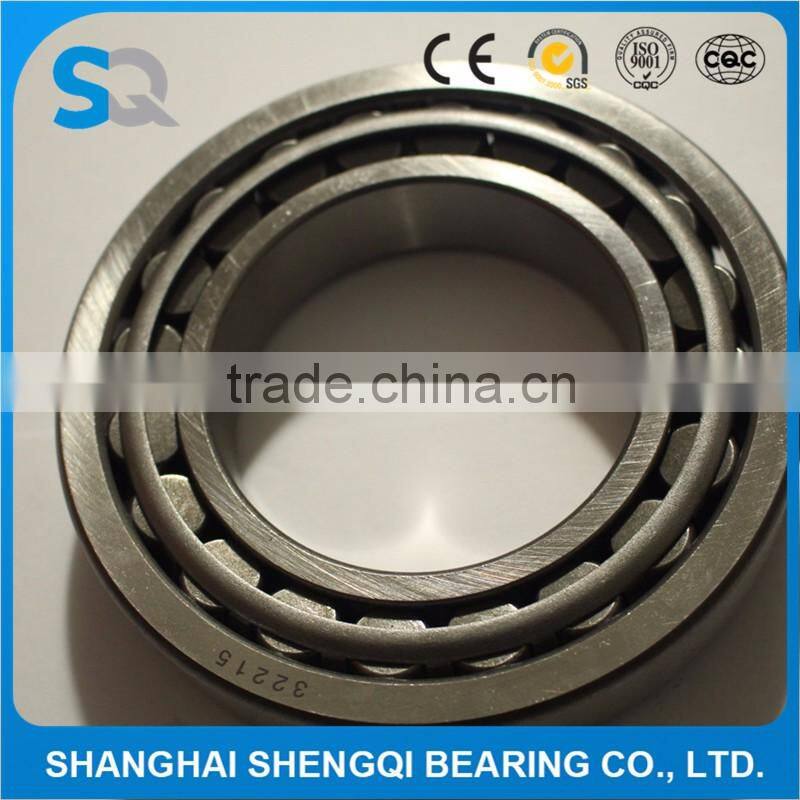

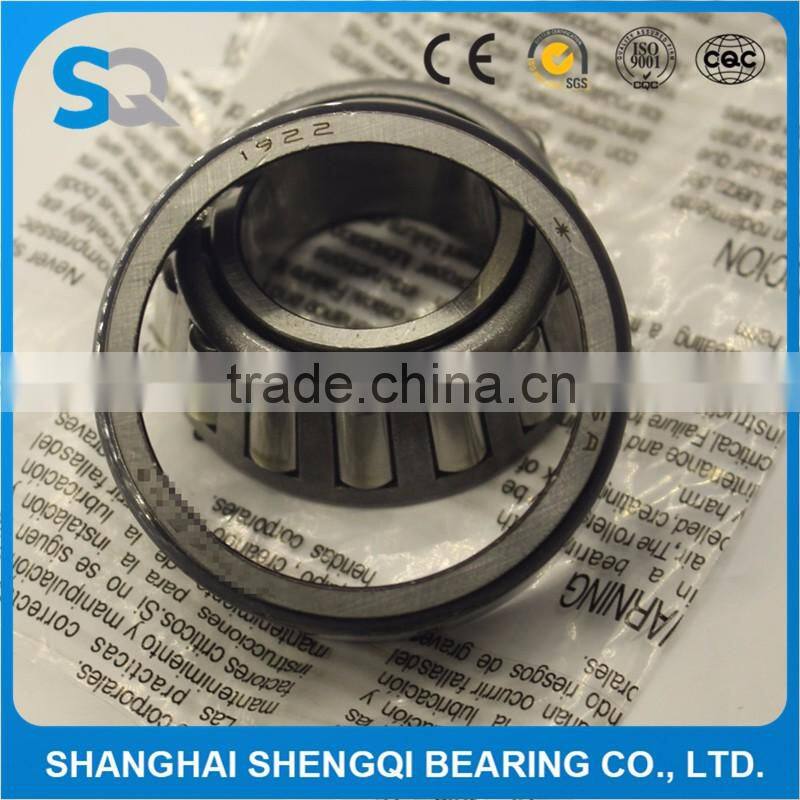

chrome steel cylindrical roller bearing 32215 NU215 details picture
chrome steel cylindrical roller bearing 32215 NU215 packing details
1.Deep groove ball bearings
2.Self-aligning ball bearings
3. Cylindrical Roller Bearings
4. Self-aligning Roller Bearings
5. Angular Contact Ball bearings
6. Tapered Roller Bearings
7. Thrust Ball Bearings
8. Thrust Roller Bearings
9. Needle roller Bearings
10. Insert Ball Bearings
11. Spherical Plain Bearings
12. joint bearings
13. customized/OEM
Shanghai Shengqi Bearing Co.,Ltd is a bearing manufacturer in China, we can supply all kinds of bearings, except for our own brand, we also offer famous brands bearings and can customized as customer's request. Our products widely sold to USA, Europe, Middle East, Asia and so on. If you are interested in our products or need more information about our products, please contact me.
1.Q: When can I get the price?
A: after we get your inquiry, usually within 6 hours. Urgent will be faster.
2. Q:How about your quality of bearings?
A: We have different quality, according to your need.
3. Q: Can I get free samples for test from your company?
A: Yes, we offer samples for test.
4.Q: What is the MOQ of your products?
A: Usually ≥1, According your need.
4. Q: How about the Delivery time?
A: About 3-15days. (according the quantity.)
5. Q: Will you check these products before shipment?
A: Yes, before shipment products will be strictly inspection on our factory QC Process System. We have a professional QC team.
6.Q:Do you have chrome steel cylindrical roller bearing 32215 NU215 tock?
A: Yes,We have.
If you need more information of our product, welcome to contact with me.
