Home > Electrical & Electronics > Electric Motor > AC Motor > 220V 55mm Efficiency Synchronous ac Motor Micro

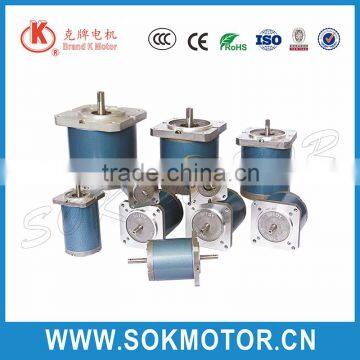

220V 55mm Efficiency Synchronous ac Motor Micro
US$ 14 - 45
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SOK MOTOR- ac synchronous motor
Model Number:
55TDY115D4-2- motor micro
Type:
Synchronous Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
36V 55mm China Electric Motor for Conveyor BeltUS$ 14 - 45MOQ: 1 Piece -
220V 55mm Single-phase Electric Motors PricesUS$ 14 - 45MOQ: 1 Piece
-
380V 55mm Three Phase 115 Rpm pm Synchronous MotorUS$ 14 - 45MOQ: 1 Piece
-
70mm 220V High Torque Low Rpm Electric MotorUS$ 20 - 55MOQ: 1 Piece
-
220V 70mm Light Weight ac Slow MotorUS$ 20 - 55MOQ: 1 Piece
Brand Name
SOK MOTOR- ac synchronous motor
Model Number
55TDY115D4-2- motor micro
Type
Synchronous Motor
Frequency
50Hz
Protect Feature
Drip-proof
Phase
Single-phase
Certification
CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
AC Voltage
Other, 220V
Place of Origin
Jiangsu, China
Product Description
Description of efficiency synchronous ac motor micro
PM slow speed synchronous motors is one kind of totally enclosed motor, which have high pole count motors that naturally turn at slower speeds(72 or 60RPM). They only need a resistor-capacitor(RC) network to operate from single-phase AC utility power. For loads that operate at 72RPM or slower, they are very cost effective and simple to use.
Other motor technologies(induction,DC,servo and step motors)either need gear reducers,or electronic drives to match the speed of SOK synchronous motors. The cost of just the gear reduction or the cost of the electronic drive will usually exceed the total cost of the SOK synchronous motor.
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with only modest gear reductions.
Other motor technologies(induction,DC,servo and step motors)either need gear reducers,or electronic drives to match the speed of SOK synchronous motors. The cost of just the gear reduction or the cost of the electronic drive will usually exceed the total cost of the SOK synchronous motor.
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with only modest gear reductions.
Typical application of efficiency synchronous ac motor micro
Auto-testing equipments
Medical equipments
Timing belt drives
X-ray scanning
Textile machines
Electrical valve actuator
Cryogenic pump
Heat exchanger
Remote control of switches rheostat
Printing,packaging machines
Antenna rotors
Auto-welding machines
Ambient condition
Ambient condition of efficiency synchronous ac motor micro
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Specifications

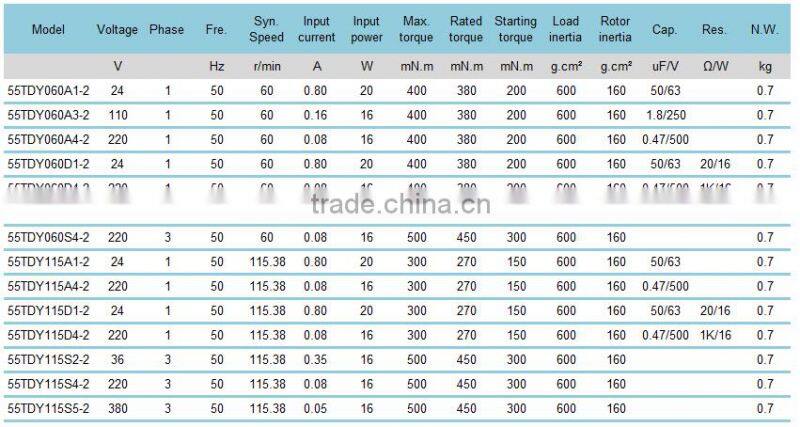

Electric motor parameter of efficiency synchronous ac motor micro
Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, shaft extension, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Outline drawing
Dimension of efficiency synchronous ac motor micro
Wiring diagram of efficiency synchronous ac motor micro
