HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block

HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block thumbnail-1
HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block thumbnail-2
HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block photo-1
HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block photo-2
US$ 40 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
Shuangge
Contact Supplier Request Quote Chat Now
Zhejiang Wuyi Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name Shuangge
Model Number HSH-E-6T
Usage Construction Hoist
Power Source Hand Chain
Sling Type Chain
Maximum Lifting Weight 6T
Maximum Lifting Height 3M
Lift Speed Hand
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

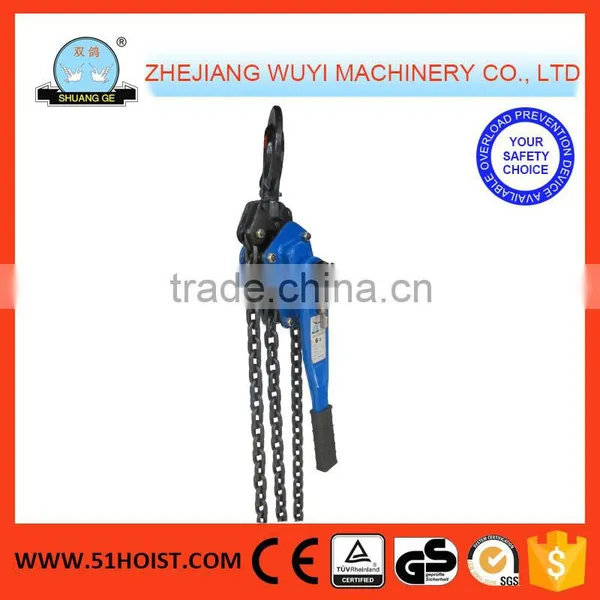

 Shuangge Brand HSH-E 6 Ton Lever Block

HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block

Model Capacity  (t) Standard lift(m) Running    test load Headroom (mm) Load chain Effort required to lift max load(N) Main Dimensions(mm) Packing measurements (cm) Extra weight per meter of extra lift(kg) Lenghth of leverhandle (mm) Net weight  (kg)
Columns Dia+Pitch         (mm) A B C D E
HSH-E0.5 0.5 1.5 0.75 260 1 5 340 105 78 95 35 28 35.5x9.5x11.5 0.52 300 4
HSH-E0.75 0.75 1.5 1.125 325 1 6 140 148 90 136 35 29 37x13x17 0.8 280 7
HSH-E1 1 1.5 1.5 340 1 6 250 148 90 136 40 34 37x13x17 0.8 280 7.2
HSH-E1.5 1.5 1.5 2.25 380 1 8 220 172 98 160 47 38 51x14x19 1.4 410 11
HSH-E3 3 1.5 4.5 480 1 10 320 200 115 180 54 44 54x19x22 2.2 410 21
HSH-E6 6 1.5 7.5 620 2 10 340 200 115 235 62 52 54x19x22 4.4 410 31
HSH-E9 9 1.5 11.25 700 3 10 360 200 115 340 85 56 55x29x22 6.6 410 47

HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block

  • Self-manufactured superior G 80 load chain,DIN standard
  • Drop-forged and heat treated  load hooks with safety latchs and hook holds
  • Idling mechenism to allows fast adjustment of load chain
  • High grade sealed roller bearing
  • Double pawls brake system
  • Non-Asbestos brake discs
  • High grade sealed roller bearings
  • 100% Load tested to 1.5 x WLL
  • MBL of 400% of WLL
  • More than 1500 cycles of fatigue test at 1.5 times of work load
  • Load limiter can be adopted at your request
Company Information

 HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever BlockHSH-E Type 6 Ton Hand Lifting Chain Hoist Lever BlockHSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block

FAQ

 1. Q:Why Choose Wuyi?

     A:Wuyi established in 1972,more than 40 years experience in the chain hoist field with                              professional technical team.

 2. Q:Can I have samples to test?

     A:Ready samples can be provided to you to check the quality and test.

 3. Q:Guarantee

      A:One year

 4: Q:OEM service

      A:Shuangge is our own brand,OEM also can be provided.

HSH-E Type 6 Ton Hand Lifting Chain Hoist Lever Block
