Motor crane
WHD5 series Electric chain hoist
Specifications:

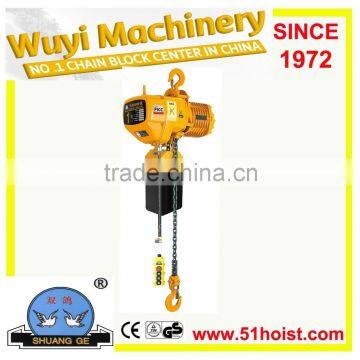

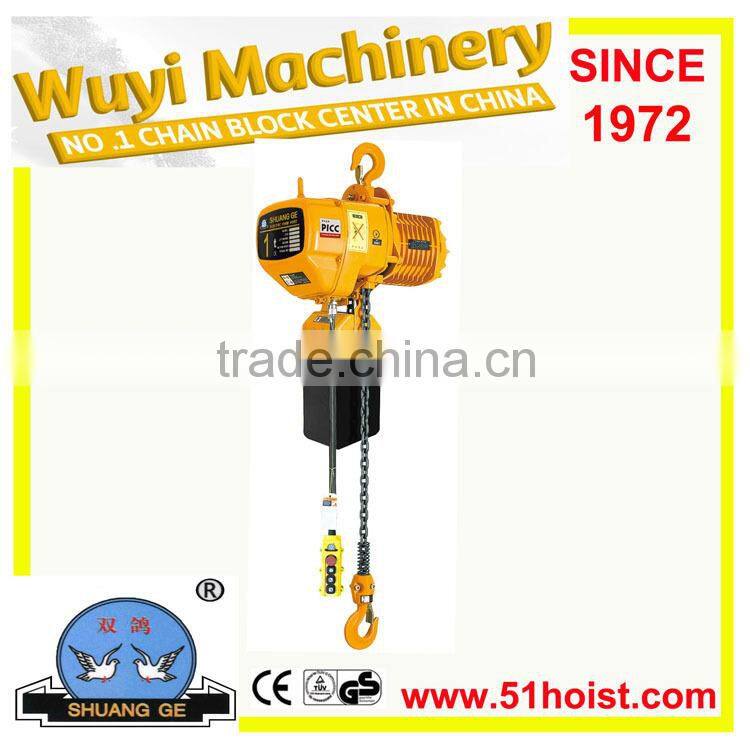

1. HHW-B electric chain hoist is a new kind of product we developed recently.
It has such characteristics as fast lifting speed,convenient operation and beautiful appearance.
3. Especially,its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
4. It is widely used in lifting light and small goods.It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.
5. This product attests to be effective equipment which can improve working condition and enhance labor efficiency,Optional wireless remote controller.
6.Excellent quality, top in China, always the leader.

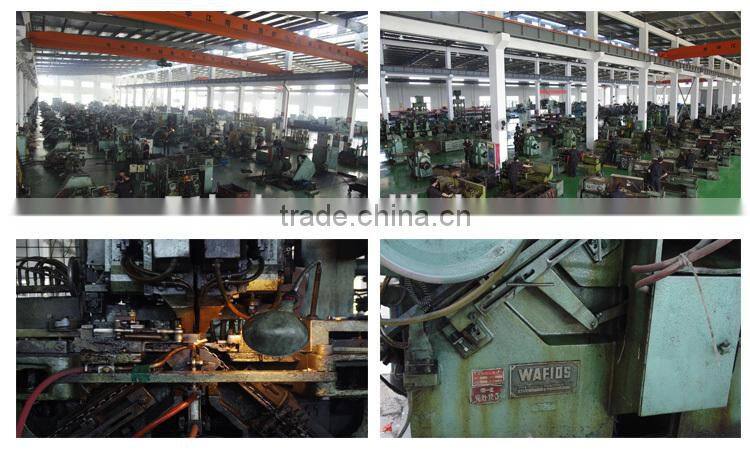

7.Largestand best chain machine produce group in China, which imported from Wafios Germany and Italy.
8.Excellent after-sale serve, market agent support and protection.
9.Sample order and trail order are acceptable.
10. AcceptOEM, more than 20 years OEM experience for world brand company.
Features:
| Model | HHW-B025 | HH-B05 | HHW-B10 | HHW-B20 | HHW-B30 | HHW-B30S | HHW-B50 | HHW-B100 | ||
| Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 3 | 5 | 10 | ||
| Standard lift(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Lifting speed(m/min) | 8 | 7 | 7 | 3.5 | 2.3 | 4 | 2.6 | 2.6 | ||
| Motor power(Kw) | 0.45 | 0.8 | 1.6 | 1.6 | 1.6 | 3.0 | 3.0 | 2×3.0 | ||
| Power supply | 3-Phase/380V 50HZ | |||||||||
| Control voltage(V) | 24V | |||||||||
| Insulation grade | F | |||||||||
| Rating | 40% | |||||||||
| Spec. of load chain | 5×15 | 7.1×21 | 9×27 | |||||||
| No. of chain | 1 | 1 | 1 | 2 | 3 | 2 | 3 | 6 | ||
| Working level | M4 | M4 | M4 | M4 | M4 | M3 | M3 | M3 | ||
| Running test load(Kn) | 0.31 | 0.625 | 1.25 | 2.5 | 3.75 | 3.75 | 6.25 | 12.5 | ||
| Length of lable(m) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | ||
| Net weight(Kg) | 25 | 50 | 55 | 60 | 65 | 78 | 100 | 260 | ||
| Extea weight per meter of extra lift(Kg) | 0.55 | 1.1 | 1.1 | 2.2 | 3.3 | 3.5 | 5.3 | 10.6 | ||
| Minimum distance between hooks(mm) | 430 | 500 | 520 | 630 | 710 | 800 | 850 | 1150 | ||
| Dimension | A(mm) | 210 | 245 | 245 | 245 | 245 | 265 | 265 | 265 | |
| B(mm) | 210 | 245 | 245 | 245 | 245 | 265 | 265 | 265 | ||
| C(mm) | 116 | 158 | 158 | 124 | 124 | 127 | 127 | 338 | ||
| D(mm) | 104 | 142 | 142 | 176 | 176 | 205 | 205 | 338 | ||
| E(mm) | 262 | 350 | 350 | 350 | 350 | 393 | 393 | 800 | ||
| F(mm) | 500 | 600 | 600 | 620 | 620 | 738 | 738 | 950 | ||
Detailed description:
1.How about sample policy?
Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don’t have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
2.Which shipping way is available?
By sea to your nearest port
By air to your nearest airport
By express (DHL,UPS,FEDEX,TNT,EMS)to your door
When your order shipping out .we will provide you a tracking no in express or B/L. then you can know clearly the status of the goods
3.Which payment way is workable?
30% T/T at advance, 70% T/T by copy of B/L (first times)
100% L/C at sight(long cooperation )

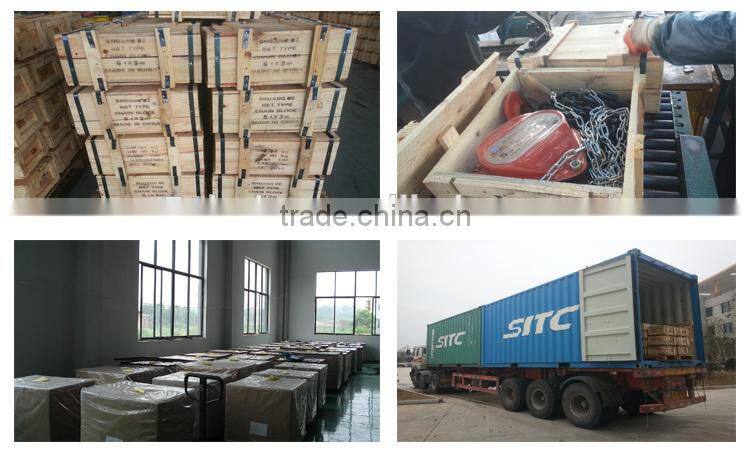

4. Packing: Wooden case or carton with pallet

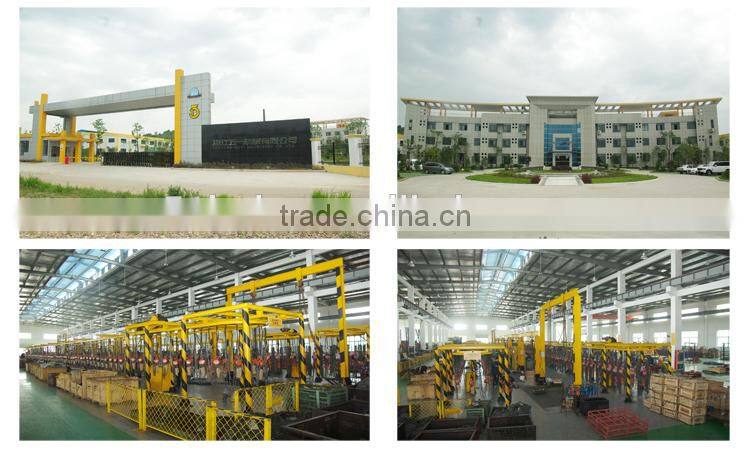

51 hoist (ShuangGe brand and Peace bird brand) is the Top light hoist manufacturer in China. Established in 1972.We have more then40 years experience indeveloping and producing. We have more than 20 years in OEM.
ShuangGe and Peace Bird are our exclusive brands. They enjoyed high reputation in domestic and oversea market.
The finished goods should be gone through more than 3 rounds inspections before export out.
Each kind of material should be tested by inspection lab.
OEM orders and Customer`s logo are acceptable. If you have any idea for makeup, just tell us.
We will produce according to your requirements. Welcome to join us !
