380V 250mm Engine Fan

380V 250mm Engine Fan thumbnail-1
380V 250mm Engine Fan thumbnail-2
380V 250mm Engine Fan thumbnail-3
380V 250mm Engine Fan photo-1
380V 250mm Engine Fan photo-2
380V 250mm Engine Fan photo-3
US$ 25.7 - 71.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Other, sheet steel
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Suzhou SOK Micro Motor Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type AC
Blade Material Other, sheet steel
Place of Origin Jiangsu, China
Brand Name SOK MOTOR-engine fan
Model Number 250FZL2WZS5-22F-engine fan
Voltage 380V
Air Volume 1800m³/h
Speed 2400RPM
Certification CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
Product Description

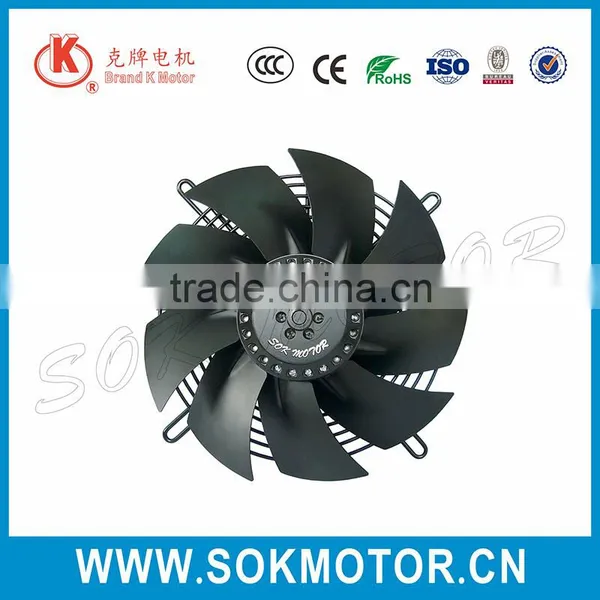

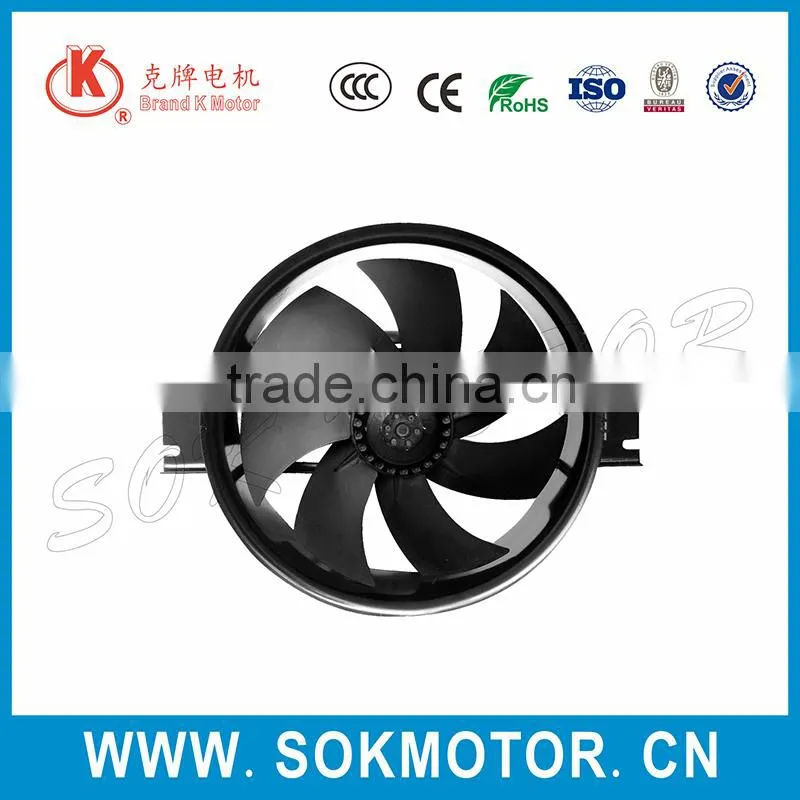

Product Description of engine fan

The AC propellers fan consists of AC induction motor with inner or external rotor and plastic or metal impeller, which has the following features:large air flow, low noise & vibration, reliable connection, easy mounting and long life-time etc.

Typical application of engine fan

Computer systems

Office automatic equipments

Ground-based auto-controlling

system
Medical apparatus

Electric instruments

Welding machines

Ambient condition

Ambient condition of engine fan

1.Temperature:-25℃～ +40℃；

2.Relative humidity:90%～ 95%；

3.Atmospheric pressure :55KPa（4000m);

4.Vibration:10～55Hz, double amplitude 1.5mm;

5.Impact: 150m/s2

Specifications

Material of engine fan

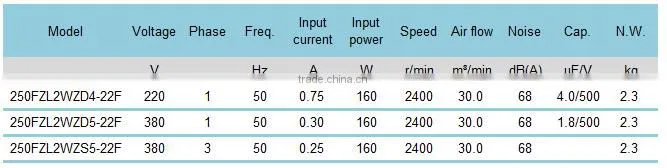

Electric motor parameter of engine fan


Note: The typical specifications below are just for your reference. The AC propellers fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Outline drawing of engine fan
