Help CenterD-sub Waterproof Connector
Related Products
Specifications
A. The waterproof rating is IP67B. UL,CE,ROHS
The detail description of Chogori D-sub waterproof connector
The brief introduction of chogori large series waterproof connector
- the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
- we have 3 types :screw, lock bayonet, push lock. we can use the cable provided by customers, and we also can purchase cable for our customers.
- The larg D-sub advantage : Adopt separate design, increase creep distance
The specification of D-sub waterproof connector
Material |
Connector Body: ABS/PBT/PA66 UL94V-0 1/8” Contact: Brass 4U”-20U” Gold plated |
Temperature Range |
-45°C-105°C |
Waterproof Rating |
IP67 |
Durability |
3000 Cycles |
Flame Test |
UL/CAS FT4 Flame Test |
Thermal Shock |
5 Cycles at -45°C-105°C |
Salt Spray |
48 Hours |
Connector Size |
D-sub |
Rate Voltage |
90V |
Rated Current |
5A |
Wire Gauge |
22AWG |
Connector Type |
D-sub |
Connector Gender |
male |
Assembly Style |
field installable 180° |
Mating Style |
lock bayonet |
The application of our connector
Application |
Medical equipment |
Outdoor LED display | |
Streetlight | |
Wireless communication | |
Marine electron | |
Actuating motor |

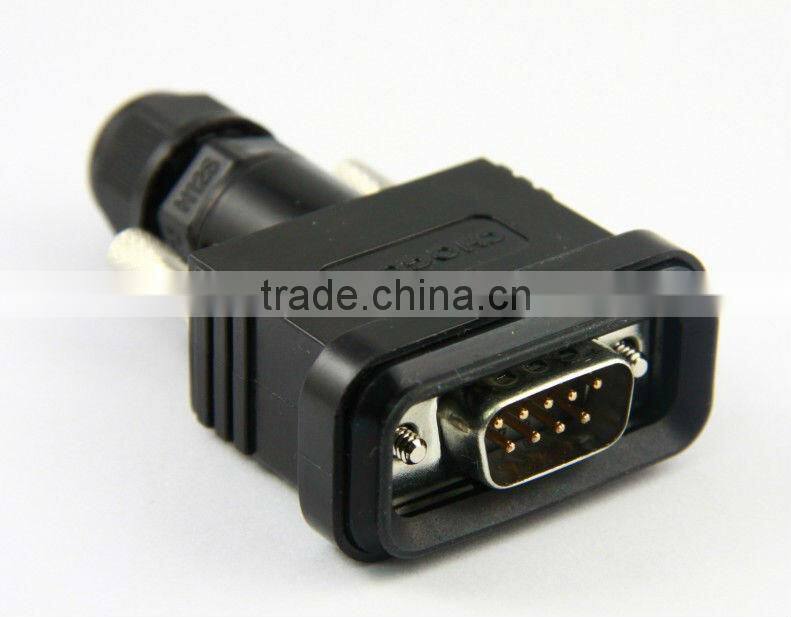

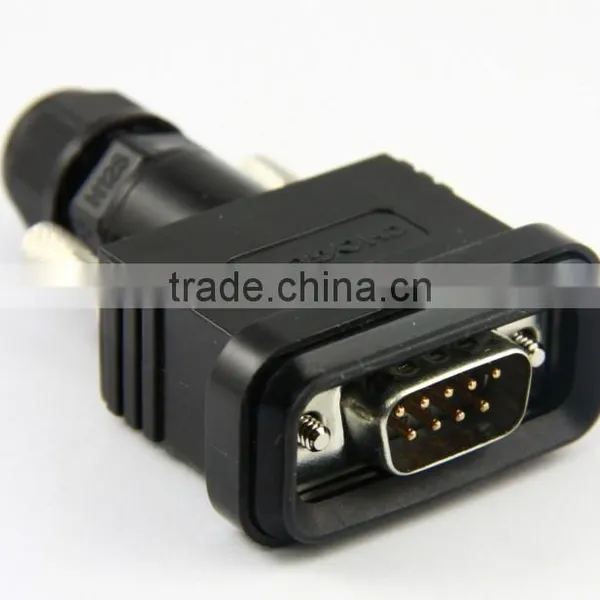

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)

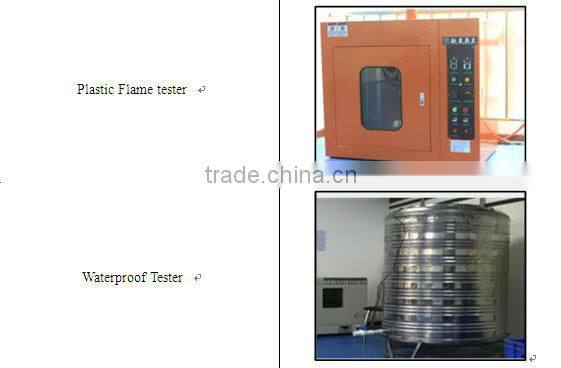

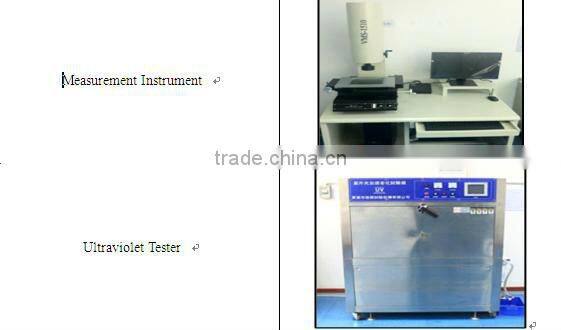

The test equipment of our company

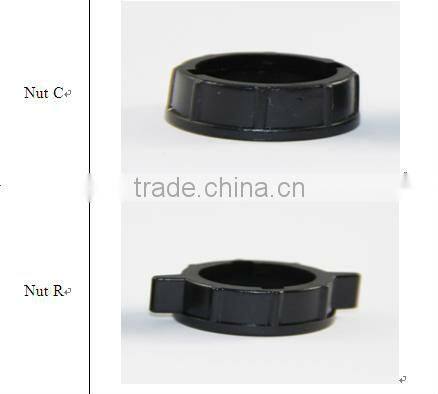

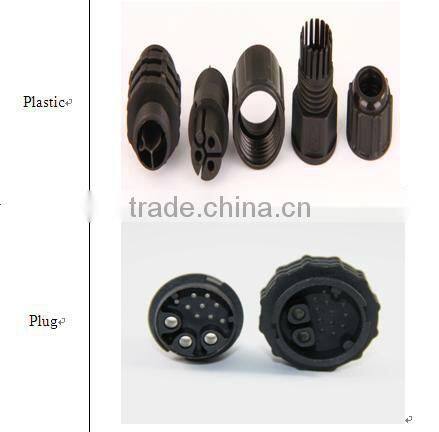

The material of our connector
Send Inquiry to This Supplier
