220V 135mm Automatic Barrier Gate Motor

220V 135mm Automatic Barrier Gate Motor thumbnail-1
220V 135mm Automatic Barrier Gate Motor thumbnail-2
220V 135mm Automatic Barrier Gate Motor thumbnail-3
220V 135mm Automatic Barrier Gate Motor photo-1
220V 135mm Automatic Barrier Gate Motor photo-2
220V 135mm Automatic Barrier Gate Motor photo-3
US$ 70 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SOK MOTOR- barrier gate motor
Model Number:
135YYJ6D4-18- barrier gate motor
Type:
Asynchronous Motor
Contact Supplier Request Quote Chat Now
Suzhou SOK Micro Motor Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SOK MOTOR- barrier gate motor
Model Number 135YYJ6D4-18- barrier gate motor
Type Asynchronous Motor
Frequency 50Hz
Protect Feature Drip-proof
Phase Single-phase
Certification CCC, CE, ROHS, Other, CCC, CE, ROHS, BV
AC Voltage Other, 220V
Place of Origin Jiangsu, China
Product Description
Description of barrier gate motor
The synchronous gear motor consists of synchronous motor and high reliable planetary gear box, which has following features :compact construction, constant speed, high torque. There will be no impact current when the motor start ,brake, reverse and stall instantly. The motors have certain holding torque, if they are excited by DC power, they will produce high holding torque.

In addition, the motors can start ,brake, reverse and stall instantly. They also can drive high inertial loading and are mainly used as driving devices.

The synchronous gear motor can achieve stepless variable speed to meet different requirement if they are driven by SOK’s special inverter SV02-D4.

Typical application of barrier gate motor


Auto-testing equipments

Medical equipments

Timing belt drives

X-ray scanning

Feed mechanism of lathes

Textile machines

Electrical valve actuator

Cryogenic pump

Conveyor systems

Barrier gate

Remote control of switches rheostat

Printing,packaging machines

Antenna rotators

Auto-welding machines

Automatic production line

Ambient condition
Ambient condition of barrier gate motor

1.Temperature:-25℃~ +40℃;

2.Relative humidity:90%~ 95%;

3.Atmospheric pressure :74.8KPa(2500m);

4.Vibration:10~55Hz,double amplitude 1.5mm;

5.Impact: 150m/s2

Specifications

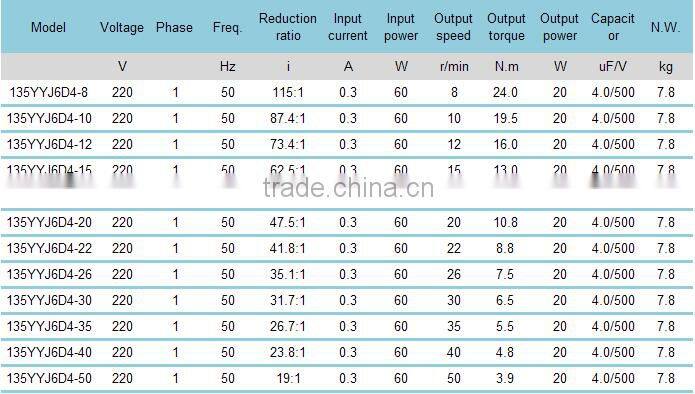

Electric motor parameter of barrier gate motor

Note: The typical specifications below are just for your reference. Motors’ voltage ,frequency, speed , torque, shaft extension, outline dimension and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of barrier gate motor

Wiring diagram
