Standard PCB Panel Front Mount Ip68

Specifications

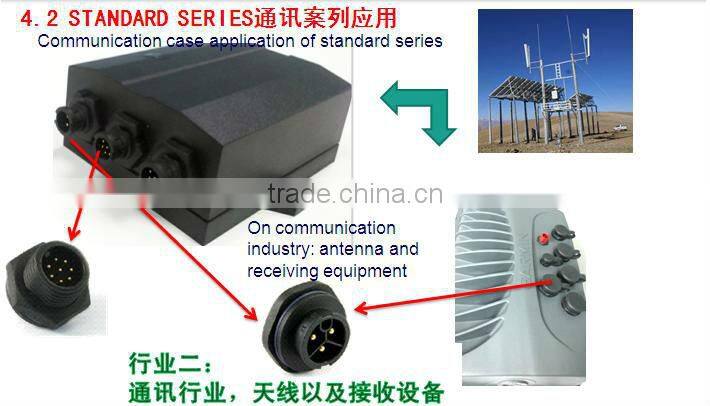

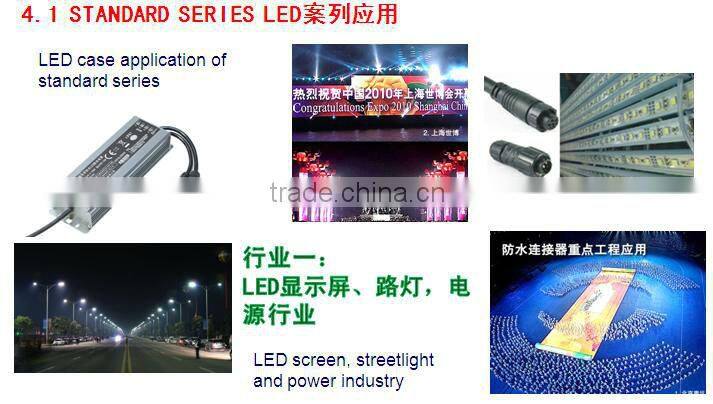

standard series are used in LED screen, streetlight and power industry, communication industry, marine electron industry, actuating motor industry, and so on.

The advantages of standard series:

1. adopt separate design
2. increase creep distance
3. various connection types
4. butt joint easily and reliably
5. stop man element
6. plug quickly

fit safety design: our connector are CCC UL TUV certified

there are various of connection types, customers have a best choice.Lock bayonet, screw and push lock do coexist.

MORE DETAILS

other information:

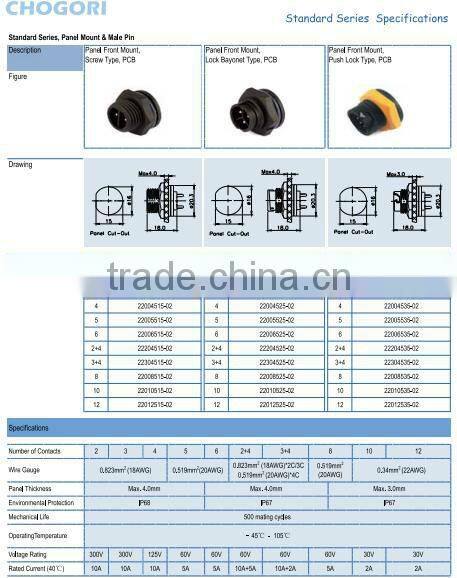

Standard series of 5A+8pins standard panel mount waterproof connector (front panel mount, screw mating style)

Material

Connector Body: Nylon+GF  UL94V-0 1/16"

Contact: Brass C2680 and C17200 4u"--20u" Gold Plated

Sealing: EPDM

RoHS   CE

How to buy?

* confirming Current Rating and Number of Contacts

* confirming Connector and Contact Gender

* confirming Assembly Style

* confirming Mating Style

* confirming Cable OD Size

* Need Waterproof Cover?

Property

Contact Resistance        :<10mΩ

Insulation Resistance   :≥100 MΩ at DC500V

Breakdown Voltage      :≥1000V/1Minute  2.5kV  1.0kV

Temperature Rating     :-45~+105

Waterproof Rating      :IP68 10m Water 2 weeks

Durability                     :≥ 3K Plug/Unplug Cycles
