220V 250mm Large Air Flow ac Ventilator

FOB Price

US$ 7 - 73 / Piece

1 Piece(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Blade Material	Other, Galvanized sheet steel
Place of Origin	Jiangsu, China	Brand Name	SOK MOTOR- large air flow ac ventilator
Model Number	250FZY4WZD4-22F- large air flow ac ventilator	Voltage	220V
Air Volume	15m³/min	Speed	1400RPM
Certification	CCC, CE, ROHS, Other, CCC, CE, ROHS, BV

Product Description

Description of large air flow ac ventilator

The AC axial fan consists of metal tubular vent ,inner or external rotor AC induction motor and plastic or metal impeller,which has the following feature : large air flow ,low noise and vibration,high reliability ,easy mounting and long life-time etc.

Typical application of large air flow ac ventilator

Computer systems

Office automatic equipments

Ground-based auto-controlling system
Medical apparatus

Electric instruments

Welding machines

Ambient condition

Ambient condition of large air flow ac ventilator

1.Temperature:-25℃～ +40℃；

2.Relative humidity:90%～ 95%；

3.Atmospheric pressure :55KPa（4000m);

4.Vibration:10～55Hz, double amplitude 1.5mm;

5.Impact: 150m/s²

Specifications

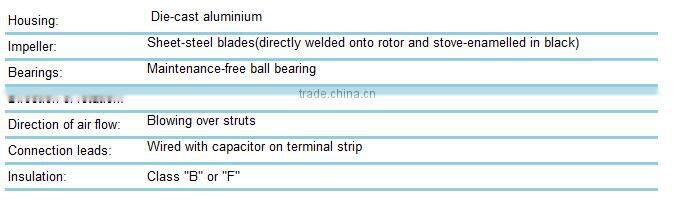

Material of large air flow ac ventilator

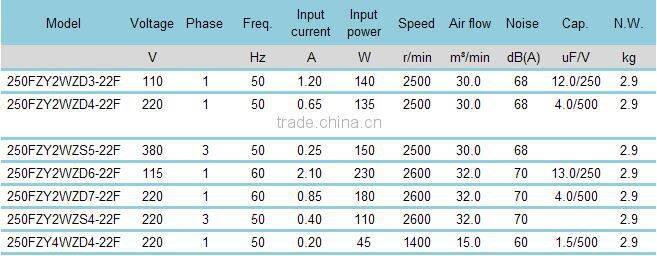

Electric motor parameter of large air flow ac ventilator

Note: The typical specifications below are just for your reference. Axial fans' voltage ,frequency, speed ,direction of rotor ,direction of air flow and insulation class can be customized. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Outline drawing

Dimension of large air flow ac ventilator
