MINI series ,screw type , 3 pins, IP67 waterprroof connector,
USD $0.5 - $5
/ Piece
500 Pieces(Min.Order)
- 1 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Mini 4 pin panel mount with male pin waterproof connector
-
Mini 4 pin waterproof connector
-
Outdoor Mini 2 pin male plug with molding 90 waterproof connector
-
mini series, field installable,2pins, screw type, ip68 waterproof connector
-
mini series,field installable,2pins, screw type, ip68 waterproof connector
-
MIini series,IP68 Waterprooof connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chogori | |
| Model Number | 21003131-01-XXX | Type | RGB | |
| Application | Power | Gender | Male |
Product Description
Specifications
(1) data waterproof connector(2) 2A,
(3) IP68,IP67
(3) ROHS,UL

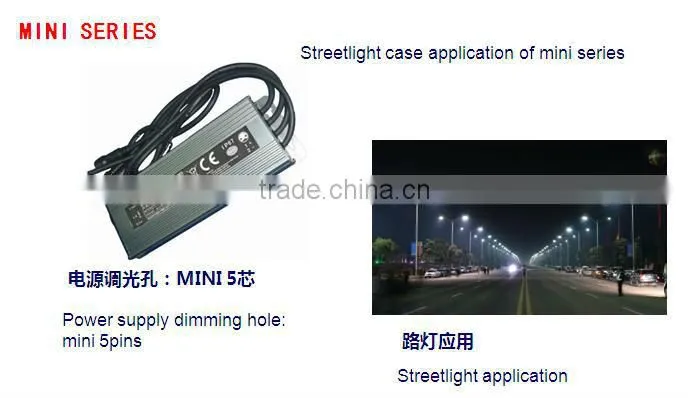

mini series are popular in streetlight application, wireless communication application and so on.
The advantage of 500 series product:
- occupy lesser space
- save installation space
- lower relative cost
- butt joint easily and reliably
fit safety design: our connector are CCC UL CE certified
| Number of Contacts | 2 | 3 | 4 | 4 | 5 | 6 | 2+4 | 7 | 8 | |||||||
| Wire Gauge | 0.519mm2 (20AWG) | 0.34mm2 (22AWG) | ||||||||||||||
| Cable Range | 3.5mm - 6.8mm | |||||||||||||||
| Environmental Protection | IP67/IP68 | |||||||||||||||
| Machanical Life | 500 mating cycles | |||||||||||||||
| OperatingTemperature | -45°C ~+105°C | |||||||||||||||
| Voltage Rating | 110V | 110V | 110V | 110V | 50V | 50V | 50V | 50V | 50V | |||||||
| Rated Current(40°C) | 5A | 5A | 5A | 2A | 2A | 2A | 5+2A | 2A | 2A | |||||||
more details
