Specifications
A. The waterproof rating is IP67B. There are 2 types:screw, lock bayonet
C. UL,CE,ROHS approvals
The detail description of Chogori Mini series 2 pin waterproof connector
The brief introduction of chogori mini series waterproof connector
- we have (2,3,4,5,6,2+4,7,8 )pins mini series waterproof connector
- the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
- the mating style can be screw or lock bayonet, we can use the cable provided by customers, and we also can purchase cable for our customers.
- The mini series advantage :occupy lesser space, save installation , and have a good outer look
The specification of mini series 2 pin waterproof connector
Material |
Connector Body: ABS/PBT/PA66 UL94V-0 1/8” Contact: Brass 4U”-20U” Gold plated |
Temperature Range |
-45°C-105°C |
Waterproof Rating |
IP67 |
Durability |
3000 Cycles |
Flame Test |
UL/CAS FT4 Flame Test |
Thermal Shock |
5 Cycles at -45°C-105°C |
Salt Spray |
48 Hours |
Connector Size |
Mini |
Rate Voltage |
110V |
Rated Current |
5A |
Wire Gauge |
20AWG |
Connector Type |
male connector with socket |
Connector Gender |
male |
Assembly Style |
Field Installable 180° |
Mating Style |
Lock Bayonet Type |

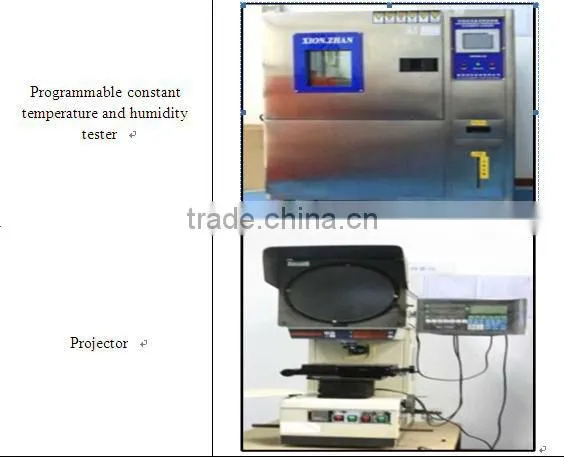

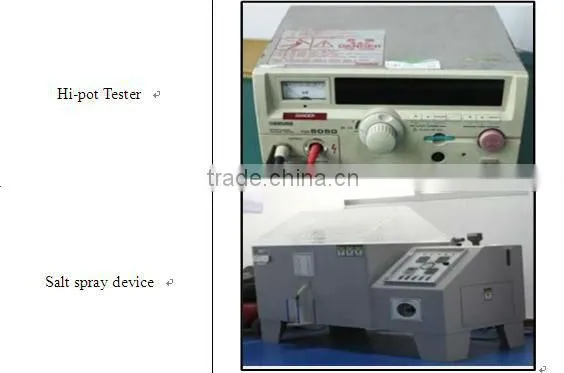

The test equipment of our company
The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
The material of our connector
