Help Center7pin Connector Lock Bayonet Molding Mini Series Waterproof Connector,chogori High Quality 2amp Nylon Watertight Connector
Related Products
-
4 Pin Waterproof ConnectorUS$ 1 - 3MOQ: 300 Pieces -
3 Pin Panel Mount Waterproof ConnectorUS$ 1 - 3MOQ: 300 Pieces
-
High Quality Plastic Bulkhead Waterproof Connector(2 Pin)US$ 1 - 3MOQ: 300 Pieces
-
Waterproof ConnectorUS$ 1 - 3MOQ: 500 Pieces
-
8 Pin Power Waterproof ConnectorUS$ 1 - 5MOQ: 500 Pieces
Specifications
1. VDE, CE, ROHS, UL, CCC, TUv Certification2. Waterproof IP67
3. Current rating:2A
4. Voltage rating:50V
5. Customized
7Pins waterproof connector IP67 Rated
Waterproof Grade: IP68/IP67/IP66 for 1P,2P,3P, 4P,5P,6P,7P,8P,10P,14P in Mini series
Screw type and lock bayonet type mating style
Assembly and molding type can be chosen upon different cable specification
Any cable length is available and terminal processing
Cable plug and panel receptacle can be chosen
Straight and right angled style
Your samples and drawings are warm welcomed
Fulfilling different kinds and quantities of order to provide
Prompt delivery and excellent after service
Good quality & Competitive price & High efficiency
Material
|
Connector Body
|
Nylon+GF UL94V-0 1/16” |
|
Contact
|
Brass, 4u"--20u" Gold Plated |
|
Sealing Material
|
Silica gel |
|
Certificate
|
VDE ROHS CE CCC UL TUV |
Property
|
Number of Contacts
|
7 pins |
|
Wire Gauge
|
22AWG/0.324mm² |
|
Cable Range
|
Max: 7.2mm |
|
Degree of Protection
|
IP67 |
|
Machanical Operation
|
>3000 mating times |
|
Temperature Rating
|
-45°C~+105°C |
|
Rated Voltage
|
50V |
|
Rated Current (40°C)
|
2A |
|
Divisional Color
|
Black |
Mating Parts
Male plug with socket with cabel(molding type): 210072213-01
Packing details:

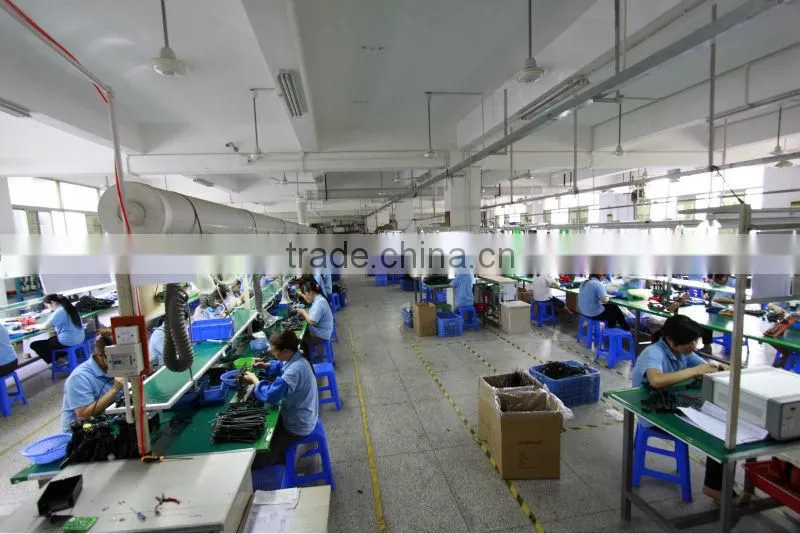

Lean Manufacturing Line Panorama: high standard lean manufacturing line
Picture of workplace:
Send Inquiry to This Supplier
