High quality plastic bulkhead waterproof connector(2 pin)
- 50000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Chogori | |
| Model Number | 21002321-2 | Application | Automotive | |
| Gender | Female |
Product Description
Specifications
A. The waterproof rating is IP68B. There are 2 types:screw, lock bayonet
C. UL,CE,ROHS approvals
The detail description of Chogori Mini series 2 pin waterproof connector
The brief introduction of chogori mini series waterproof connector
- we have (2,3,4,5,6,2+4,7,8 )pins mini series waterproof connector
- the waterproof rating can be IP66,IP67,IP68 ,it’s all depends on customer’s request
- the mating style can be screw or lock bayonet, we can use the cable provided by customers, and we also can purchase cable for our customers.
- The mini series advantage :occupy lesser space, save installation , and have a good outer look
The specification of mini series 2 pin waterproof connector
Push lock mini series 2 pin waterproof connector | |||
1 | Model No. | 21002321-2 | |
2 | Material | Connector Body | ABS/PBT/PA66 UL94V-0 1/8” |
3 | Contact | Brass with Gold Plated | |
4 | Sealing | Silica Gel | |
5 | Property | Current Rating | 5A |
6 | Voltage Rating | 110V | |
7 | Contact Resistance | <10mΩ | |
8 | Insulation Resistance | 1000MΩ at DC 500V | |
9 | Breakdown Voltage | 1KV/1minute | |
10 | Temperature Rating | -45°C~+105°C | |
11 | Durability(Plug/Unplug) | 3000 times | |
12 | Waterproof Rating | IP68 | |
13 | Cable Max. Diameter | 3.5~6.8mm | |
14 | Contact Range | 1,2,3,4,5,6,2+4,7,8 | |
15 | Certificate | CCC; CE; ROSH | |

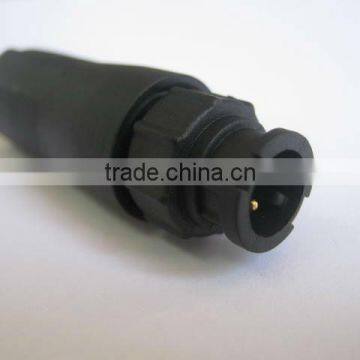

The picture of our product(Our connectors can be used in LED industry,comunication industry and so on ,if you have interest in our product, please feel free to contact us, we will provide the excellent quality and reasonable price connectors for you !)
The material of our connector
| |
| |
| |
