Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Mini Series Screw Type 5 Pins PCB Panel Mount

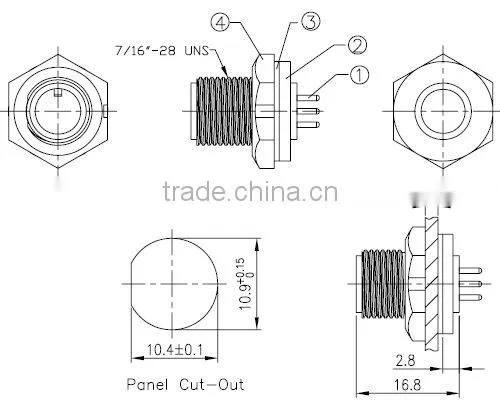

Mini Series Screw Type 5 Pins PCB Panel Mount
US$ 1 - 5
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CHOGORI
Model Number:
21005515-02
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Series Lock Bayonet Type 2 Pins Front Panel MountUS$ 1 - 5MOQ: 200 Pieces -
4 Pin Male Plug, Field Istallable,2A Waterproof ConnectorUS$ 1 - 5MOQ: 300 Pieces
-
7pin Connector Lock Bayonet Molding Mini Series Waterproof Connector,chogori High Quality 2amp Nylon Watertight ConnectorUS$ 0.5 - 4MOQ: 500 Pieces
-
4 Pin Waterproof ConnectorUS$ 1 - 3MOQ: 300 Pieces
-
3 Pin Panel Mount Waterproof ConnectorUS$ 1 - 3MOQ: 300 Pieces
Place of Origin
Guangdong, China
Brand Name
CHOGORI
Model Number
21005515-02
Gender
Female
Specifications
1. Miniseries, pcb panel mount2. 2p to 4p for 5A, 5p to 8p for 2A
3. Assembly and molding
4. IP67, IP68 waterproof
Mini Series circular waterproof connector
1. Small size provides universal application and good looking. Common use for LED lighting
2. Lock bayonet and screw mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
Material | |
Connector body: |
Nylon + GF UL94V-0 1/16" |
Plastic: |
PA66 &UV resistance |
Contact pin: |
Brass(gold-plated 4 u" -20u") |
Sealing |
Silica gel |
ROHS,CE Approved | |
Property | |
Contact Resistance |
<10mΩ |
Insulation Resistance |
≥100 MΩ at DC500V |
Breakdown Voltage |
≥1KV/1Minute |
Temperature Rating |
"-45°C~+105°C |
Waterproof Rating |
IP67&IP68 |
Durability(Plug and Insert) |
≥ 3K Plug/Unplug Cycles |
