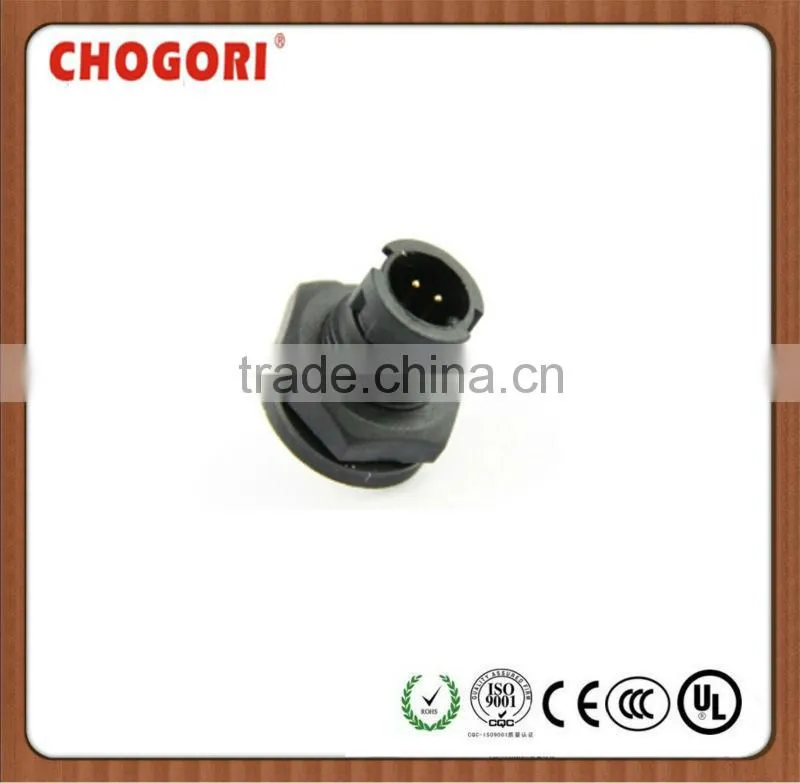

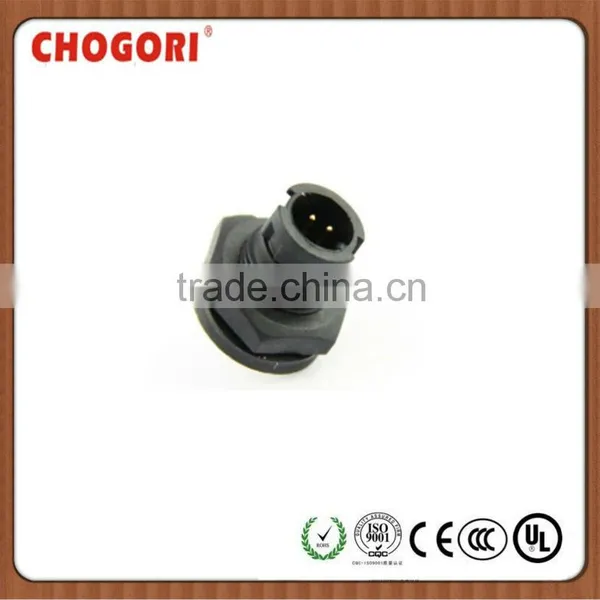

Mini Series Lock Bayonet Type Front Panel Mount Connector
US$ 1 - 5
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CHOGORI
Model Number:
21002625-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Series Lock Bayonet Type 2pin Waterproof ConnectorUS$ 1 - 5MOQ: 200 Pieces -
Mini Series Lock Bayonet Type 7pin Waterproof ConnectorUS$ 1 - 5MOQ: 200 Pieces
-
Mini Series Lock Bayonet Type 4pin Circular ConnectorUS$ 1 - 5MOQ: 200 Pieces
-
Mini Series Lock Bayonet Type 6 Pins Rear Panel MountUS$ 1 - 5MOQ: 200 Pieces
-
Mini Series Screw Type 5 Pins PCB Panel MountUS$ 1 - 5MOQ: 200 Pieces
Place of Origin
Guangdong, China
Brand Name
CHOGORI
Model Number
21002625-01
Gender
Female
Specifications
1. Mini series, panel mount, solder2. 2p to 4p for 5A, 5p to 8p for 2A
3. Assembly and molding
4. IP67, IP68
Mini Series circular waterproof connector
1. Small size provides universal application and good looking. Common use for LED lighting
2. Lock bayonet and screw mating style
3. Assembly and molding type can be chosen upon different cable specification
4. Any cable length is available and terminal processing
5. Cable plug and panel receptacle can be chosen
6. Straight and right angled style
Material | |
Connector body: |
Nylon + GF UL94V-0 1/16" |
Plastic: |
PA66 &UV resistance |
Contact pin: |
Brass(gold-plated 4 u" -20u") |
Sealing |
Silica gel |
ROHS,CE Approved | |
Property | |
Contact Resistance |
<10mΩ |
Insulation Resistance |
≥100 MΩ at DC500V |
Breakdown Voltage |
≥1KV/1Minute |
Temperature Rating |
"-45°C~+105°C |
Waterproof Rating |
IP67&IP68 |
Durability(Plug and Insert) |
≥ 3K Plug/Unplug Cycles |
