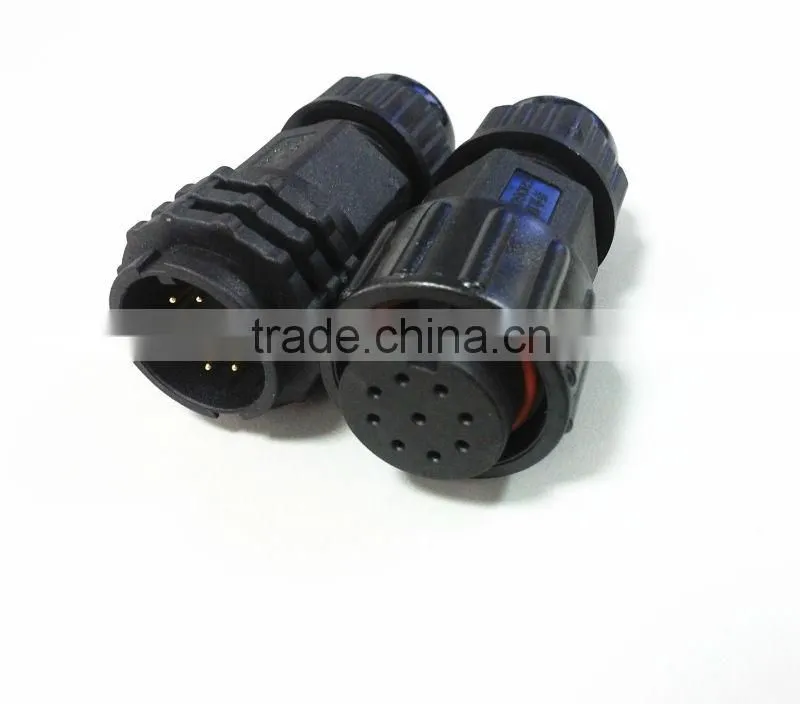

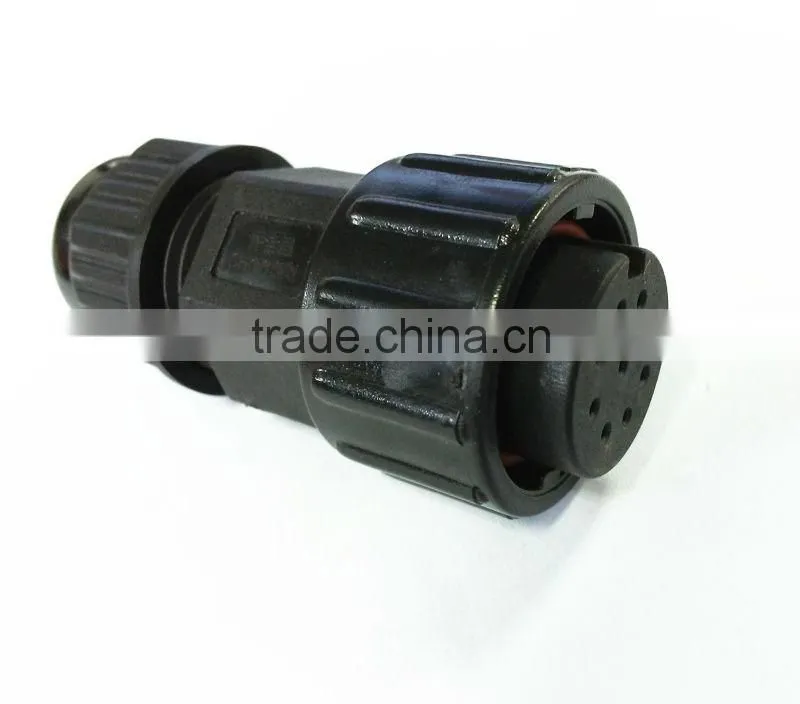

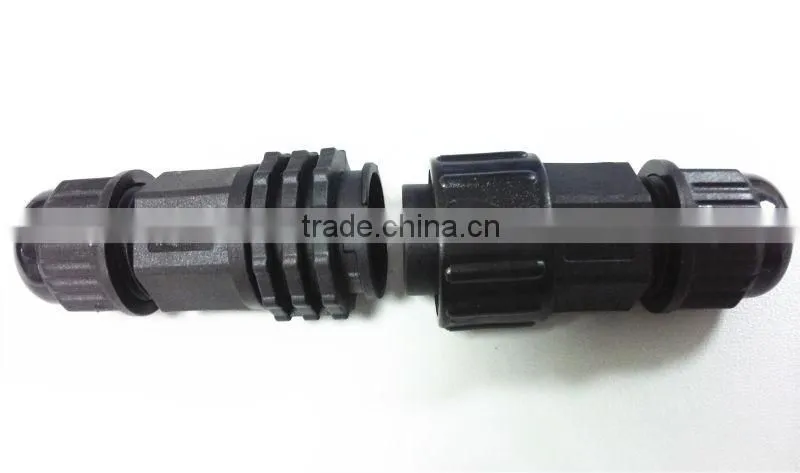

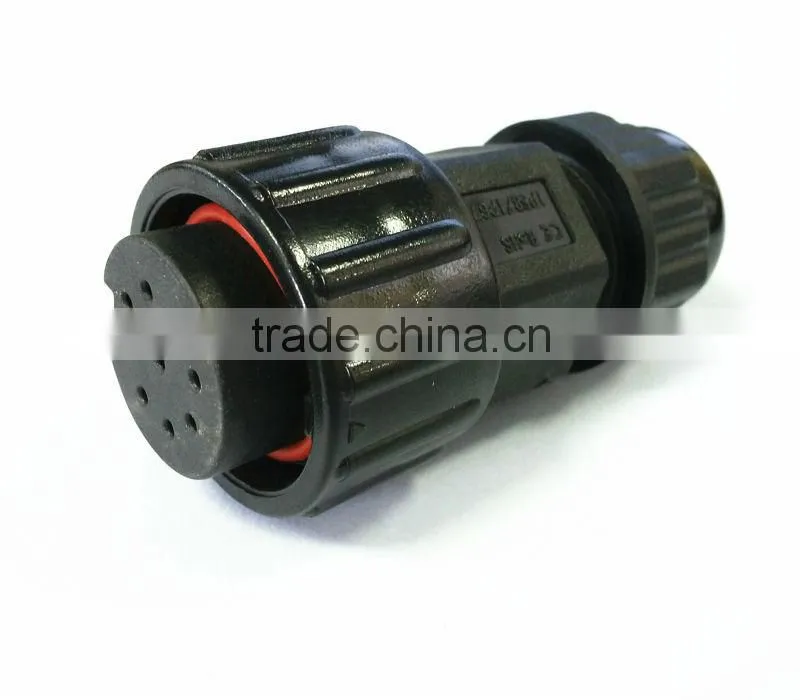

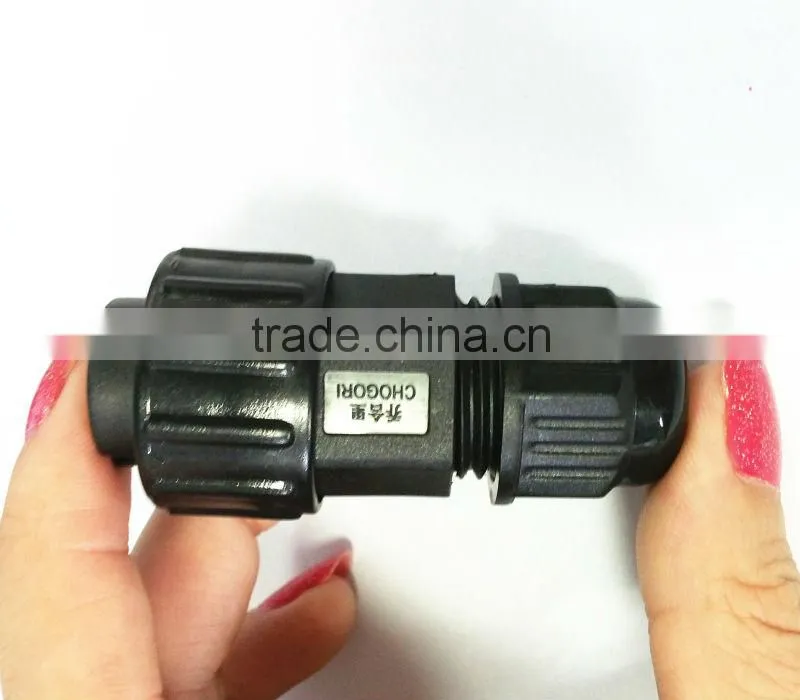

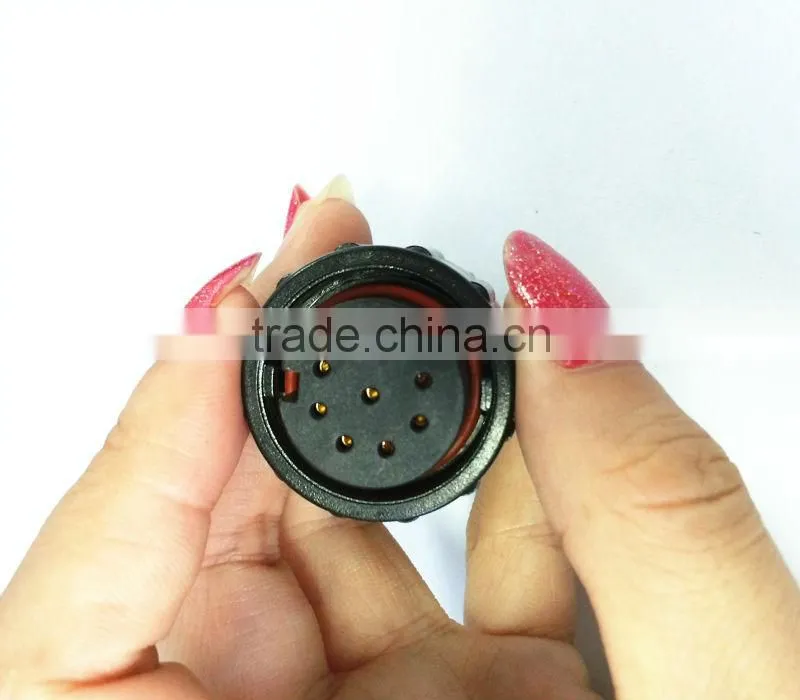

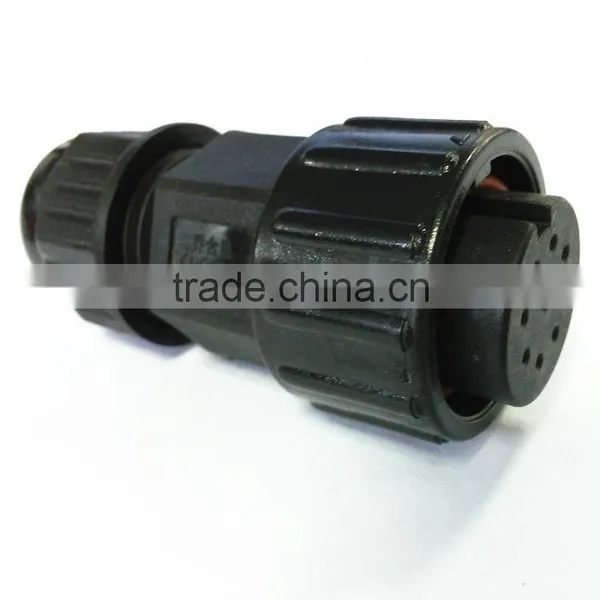

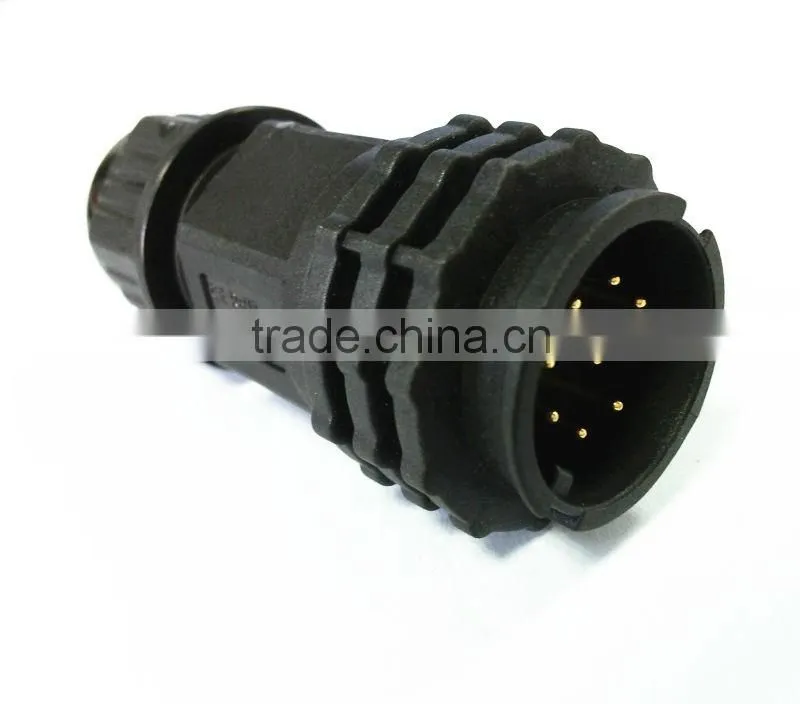

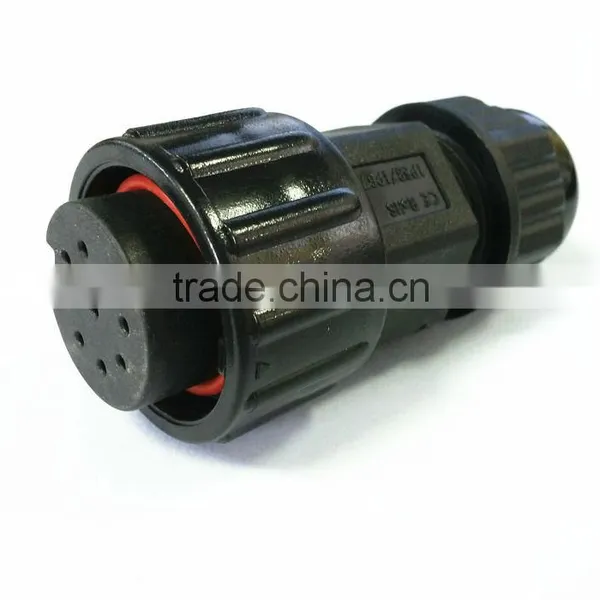

Help Center9pin Connector IP67 Waterproof ,Chogori High Quality Nylon Connector for Solar,led,power
Related Products
-
Large 3+9 Automotive LED Circular Electric ConnectorsUS$ 1 - 5MOQ: 500 Pieces -
3+9p IP67 Waterproof Connector,high Quality Nyalon Watertight Connector,Chogori Led High Current Power ConnectorUS$ 2 - 4MOQ: 500 Pieces
-
Large 3+9P UL Metal Push Lock IP67 Waterproof Connector,Chogori High Quality Nylon Connector,high Current Watertight ConnectorUS$ 2 - 4MOQ: 500 Pieces
-
Large Series 24pin Connector Panel MountUS$ 1 - 5MOQ: 200 Pieces
-
Large Series 24 Pin ConnectorUS$ 1 - 5MOQ: 200 Pieces
Specifications
1.VDE, CE, ROHS, CCC, UL, TUV Certification2.Waterproof IP67
3.Current rating:5A
4.Voltage rating:125V
5.Customized
24Pins waterproof connector IP67 Rated
Waterproof Grade: IP67 for 2P,3P,9P,18P,3+9P,3+11P in Large series
Screw type and lock bayonet type and push lock type mating style
Assembly and molding type can be chosen upon different cable specification
Any cable length is available and terminal processing
Cable plug and panel receptacle can be chosen
Straight and right angled style
Your samples and drawings are warm welcomed
Fulfilling different kinds and quantities of order to provide
Prompt delivery and excellent after service
Good quality & Competitive price & High efficiency
Material
|
Connector Body
|
Nylon+GF UL94V-0 1/16” |
|
Contact
|
Brass, 4u"--20u" Gold Plated |
|
Sealing Material
|
Silica gel |
|
Certificate
|
VDE, ROHS, CE, CCC, UL ,TUV |
Property
|
Number of Contacts
|
9pins |
|
Wire Gauge
|
18AWG |
|
Cable Range
|
4.5-6.5mm for thin sealing nut,6.5-10.5mm for thick sealing nut |
|
Degree of Protection
|
IP67 |
|
Machanical Operation
|
>3000 mating times |
|
Temperature Rating
|
-45°C~+105°C |
|
Rated Voltage
|
125V |
|
Rated Current (40°C)
|
5A |
|
Divisional Color
|
Black |
|
Type
|
Waterproof connector |
|
Brand Name
|
Chogori |
|
Contact resistance
|
≤10mΩ at 2mA Max. |
|
Insulation resistance
|
≥10MΩ /0.01second DC 500V |
|
Breakdown Voltage
|
500V(AC)/0.01second |
Product details:
Mating parts:
Female plug with pin: 24024321-01
