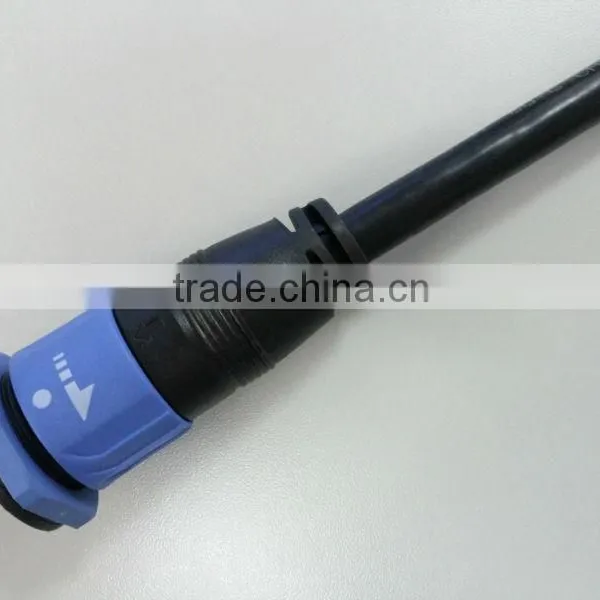

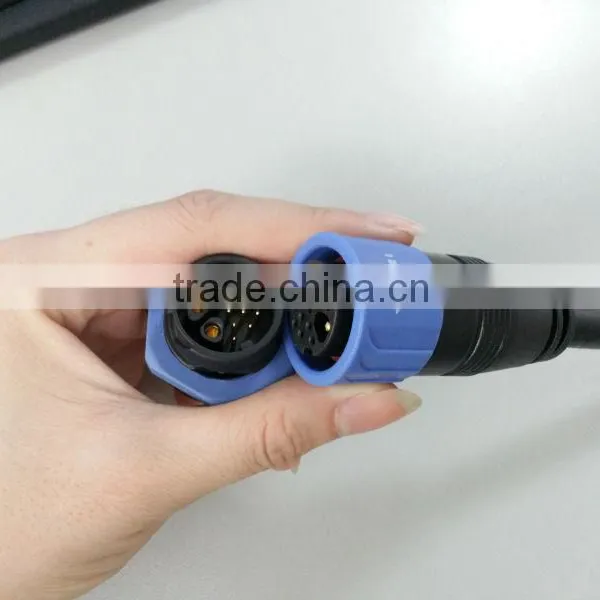

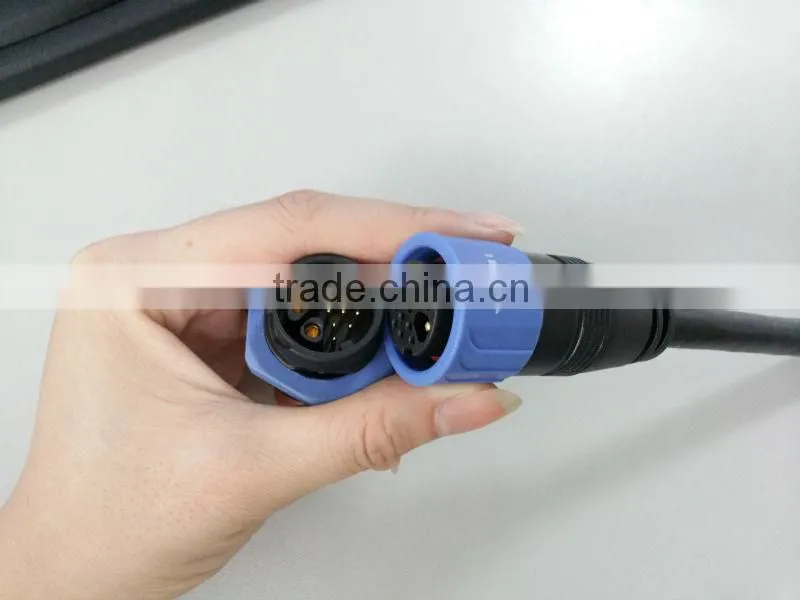

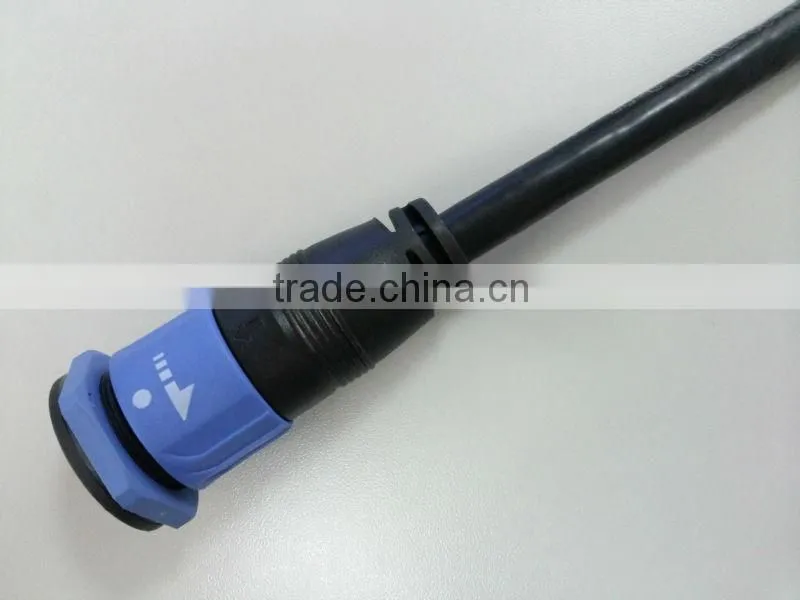

3+9p IP67 waterproof connector,high quality Nyalon watertight connector,Chogori led high current power connector
- 100 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Chogori | Model Number: | 24309233-01-001 |
| Type: | Other, Power | Application: | Other, Power&LED display&Electronical equipments&Communications | Gender: | Male |
Product Description
Specifications
1.VDE, CE, ROHS, CCC, UL, TUV Certification2.Waterproof IP67
3.Current rating:20+5A
4.Voltage rating:250V
5.Customized
Material
Connector Body | Nylon+GF UL94V-0 1/16” |
Contact | Brass ,4u"--20u" Gold Plated |
Sealing | Silica gel |
Certificate | VDE ROHS CE CCC UL TUV
|
Property
Number of Contacts | 3pins+9pins |
Wire Gauge | 14AWG/2.08mm² |
Cable Range | 3.5-6.5mm |
Degree of Protection | IP67 |
Machanical Operation | >3000 mating cycles |
Temperature Rating | -45°C~+105°C |
Rate Voltage | 250V |
Rated Current (40°C) | 20A |
Divisional Color | Black |
Type | Waterproof connector |
Brand Name | Chogori |
Contact resistance | <10mΩ |
Insulation resistance | >10MΩ |
Breakdown Voltage | 500V(AC) |
Contact | 3+9pins |
Connector body | Nylon |
Wire material | PVC |
Connector OD | 28.8mm |
Mating style | Push lock |
Assembly type | Field installabel |
Cable length | optional |
Mating components
Packing Details:
Workshop:
