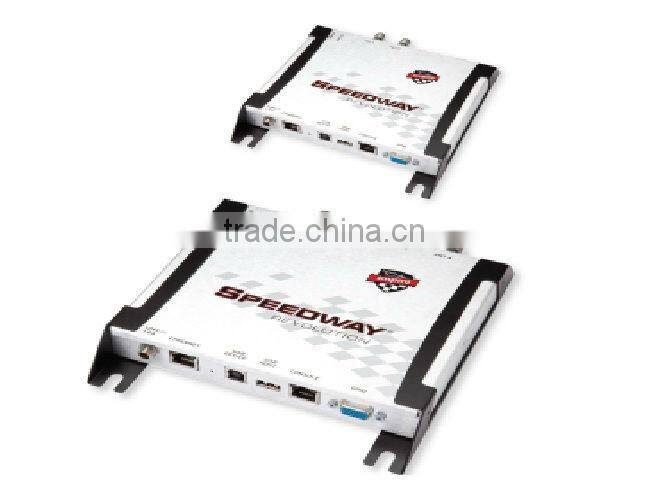

Long Range UHF Passive RFID Reader

Air Interface Protocol

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Performance

Supported Regions and Geographies

• US, Canada, and other regions following US FCC Part 15 regulations
• Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations
• Australia, Brazil, China, India, Japan, Korea, New Zealand, Singapore, South Africa, Taiwan, Uruguay, Indonesia, UAE, Malaysia, Thailand

• US, Canada, and other regions following US FCC Part 15 regulations
• Europe and other regions following ETSI EN 302 208 v1.2.1 without LBT regulations
• Australia, China, India, New Zealand, South Africa, Taiwan, Uruguay, Brazil, Malaysia, Thailand

Antennas

Transmit Power

• +10.0 to +30.0 dBm (PoE)
• +10.0 to +32.5 dBm¹ (external universal power supply)

Note 1: Speedway Revolution requires professional installation, may only be operated with Impinj-approved antennas, and can radiate no more than 36 dBm EIRP per FCC Part 15.247 regulations. Other regulatory regions have similar restrictions. Consult the Installation and Operations Guide to learn more.

Max Receive Sensitivity

-82 dBm

Max Return Loss

10 dB

Application Interface

EPCglobal Low Level Reader Protocol (LLRP) v1.0.1

Network Connectivity

10/100BASE-T auto-negotiate (full/half) with auto-sensing MDI/MDX for auto-crossover (RJ-45)

Cellular Connectivity*

• Sierra Wireless AirLink PinPoint XT (CDMA or GSM connectivity with GPS data)
• Sierra Wireless AirLink Raven XT (CDMA or GSM connectivity)

(* Available through Impinj-authorized partners)

IP Address Configuration

Time Sychronization

Network Time Protocol (NTP)

Management Interfaces

• Impinj Web Management UI
• Impinj RShell Management Console using serial management console port, telnet or SSH
• SNMPv2 MIBII
• EPCglobal Reader Management v1.0.1
• Syslog

Reliable Firmware Upgrade

• Dual image partitions enable smooth transition to new firmware while the reader is still operating
• Scalable upgrade mechanism enabling simultaneous scheduled upgrades of multiple reader
• USB Flash Drive
• Impinj Web Management UI

Management Console

• RS-232 using a standard Cisco-style management Cable (DB-9 to RJ-45)
• Baud rate: 115200; Data: 8 bit; Parity: none; Stop: 1 bit; Flow control: none

USB

• USB 1.1 Device (Type B) and Host (Type A) ports
• USB Virtual COM Serial Port and USB drive support for embedded applications

GPIO

• 4 inputs, optically isolated, 3–30V
• 4 outputs, optically isolated, 0– 30V, non-isolated 5V, 100 mA supply (DB-15)

Power Sources

• Power over Ethernet (PoE) IEEE 802.3af
• +24 VDC @ 800 mA via external universal power supply with locking connector—sold separately

Power Consumption

Note 2: Maximum is 31.5 dBm for ETSI region readers

Environmental Sealing

IEC IP52

Shock and Vibration

Operating Temperature

-20 ºC to +50 ºC

Humidity

5% to 95%, non-condensing

Dimensions (H x W x D)

7.5 x 6.9 x 1.2 in (19 x 17.5 x 3 cm)

Weight

1.5 lbs (0.68kg)

RoHS

Compliant to European Union directive 2002/95/EC
