Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car Rearview Camera > Automatic Truck and Tailer Parking Sensor System SDW-4-UMP

Automatic Truck and Tailer Parking Sensor System SDW-4-UMP

Name: Automatic Truck and Tailer Parking Sensor System SDW-4-UMP
Brand: Elitek
SKU: 121170517
Availability: InStock

Automatic Truck and Tailer Parking Sensor System SDW-4-UMP thumbnail-1

Automatic Truck and Tailer Parking Sensor System SDW-4-UMP photo-1

US$ 50 - 60 MOQ: 100 Units

Key Specifications

Get Latest Price

Type:

Parking Sensor

Voltage:

DC 24V

Car Make:

General

Contact Supplier Request Quote Chat Now

Shenzhen Elitek Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Parking Sensor

Voltage DC 24V

Car Make General

Place of Origin Guangdong, China

Brand Name Elitek

Model Number SDW-4-UMP

Warranty 3 years guarantee

Specifications

1. 24 voltios reverse parking sensor
2. Smart sensors
3. Waterproof connector and control box
4. CE/FCC/ROHS
5. OEM

Main Adwantages:

1. OEM Reverse Parking Sensor system
2. Support 24V vehicles
3. Waterproof connector and control box
4. Smart sensors
5. Factory offer

Product Specification

1) OEM Car Rear 4 Reverse Parking Sensor System
2) Sensor detection range: 5cm~3.0m
3) Display range: 30cm~3.5m
4) Advanced self-diagnosis with error indication
5) Improved anti-interference function
6) All weather design
7) 4*UMP SmartSensor module built in sensor, 22mm rubber angled, fit for spare tyre or tow bar use
8) 4/3/2 sensor optional
9) DSP01 display, 3 color LED 4 channel w/ buzzer built-in & digital readout
10) Power Input: 9.6~35V DC

Description	Min	Type	Max	Unit
Power voltage for S series	10	24	35	V DC
Power voltage for H&E series	9.6	12	15	V DC
Operating current			150	mA
Operating temperature	-20		80	°C
Operating frequency	39.3	40	40.7	KHz
Horizontal detection angle		120		°
Vertical detection angle		60		°
Distance detection accuracy		1		cm
Detection range	0.05	0.9	2.5	m
Buzzer sound volume	75		105	dB
RF Frequency		433		MHz

Accessories photos:

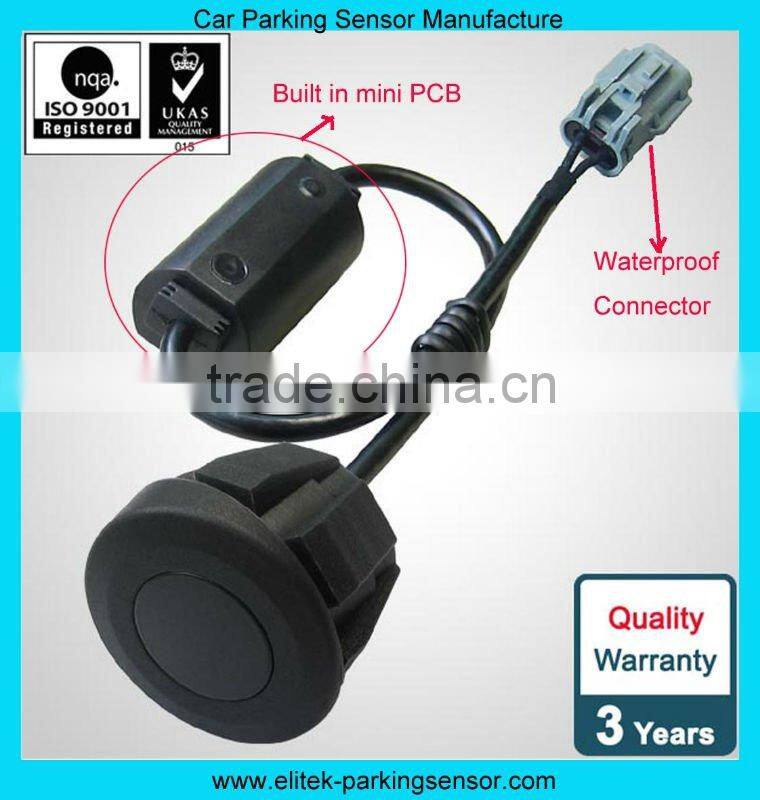

(1) Smart sensor with build in mini PCB board and waterproof connector

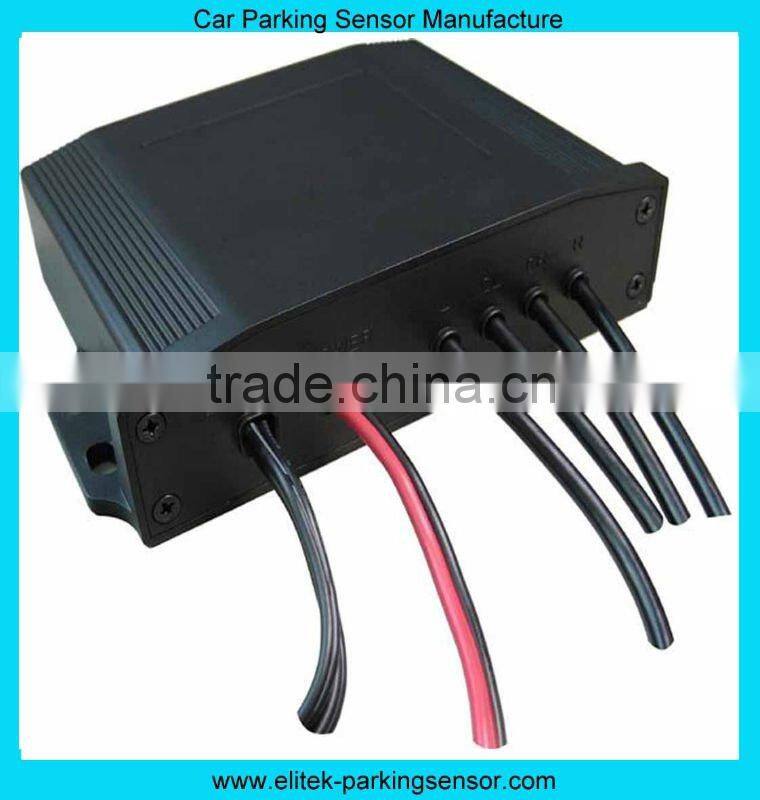

(2) Waterproof control box,can be installed on the truck,trailer...

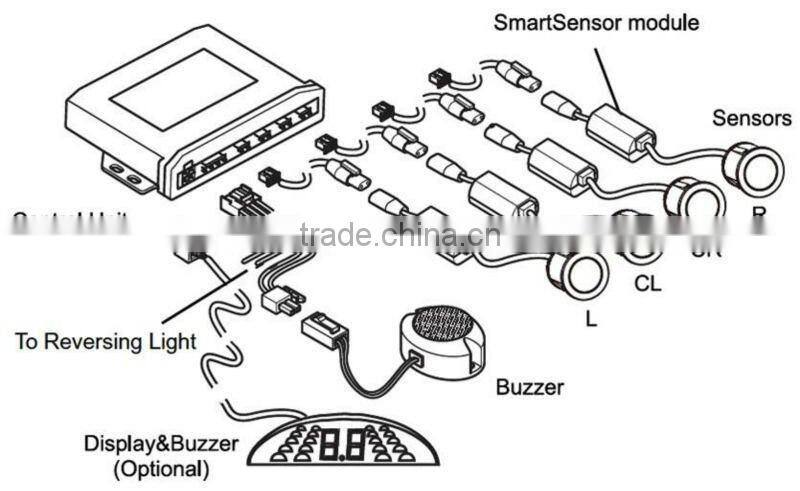

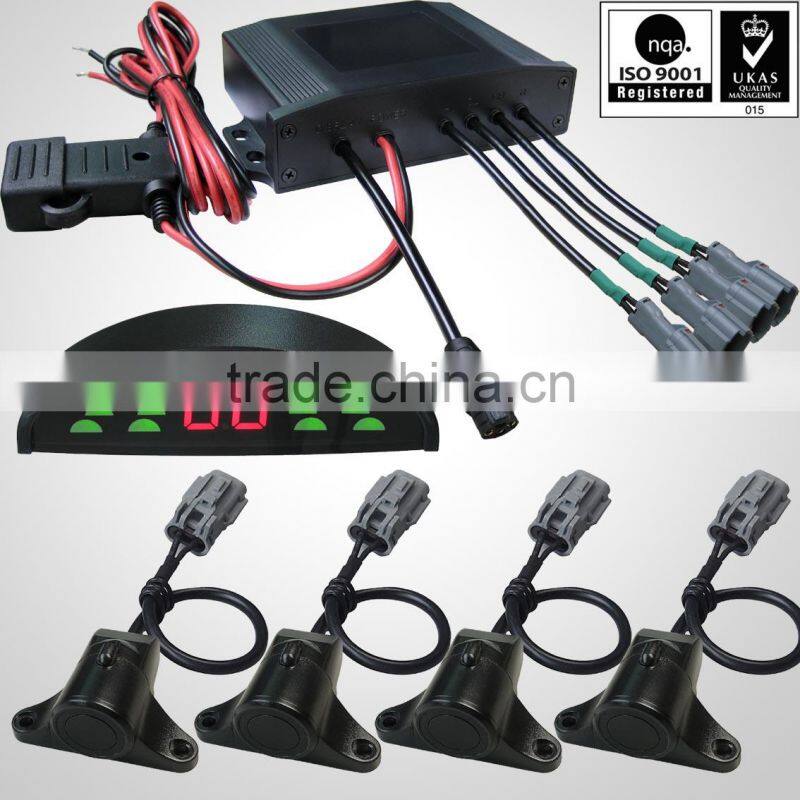

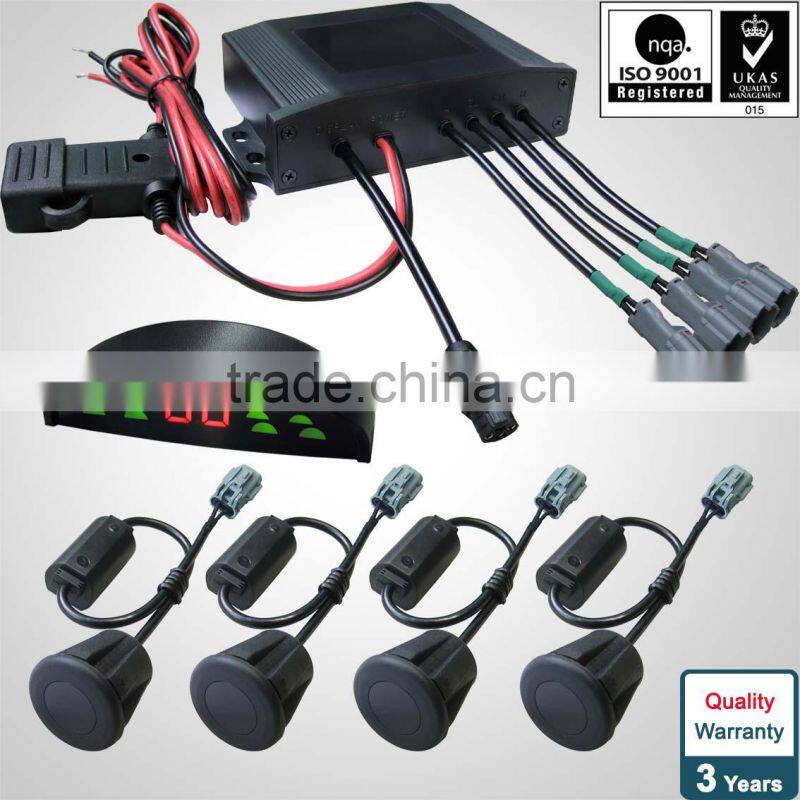

Whole set
Waterproof Control box	1PCS
Sensors	4PCS
15cm with industrial connectors sensor cables 5m	4PCS
LED display 1m+14m cable	1PCS
Power harness with Fuse 1.5 m length	1PCS
Owner’s manual	1PCS
Hole saw (22mm or screws optional)	1PCS
Accessory pack	1PCS
BUZZER OPTIONAL 15m cable	1PCS
