Truck and Trailer Reverse Parking Sensor System With Buzzer (SWB02-4-RFP)

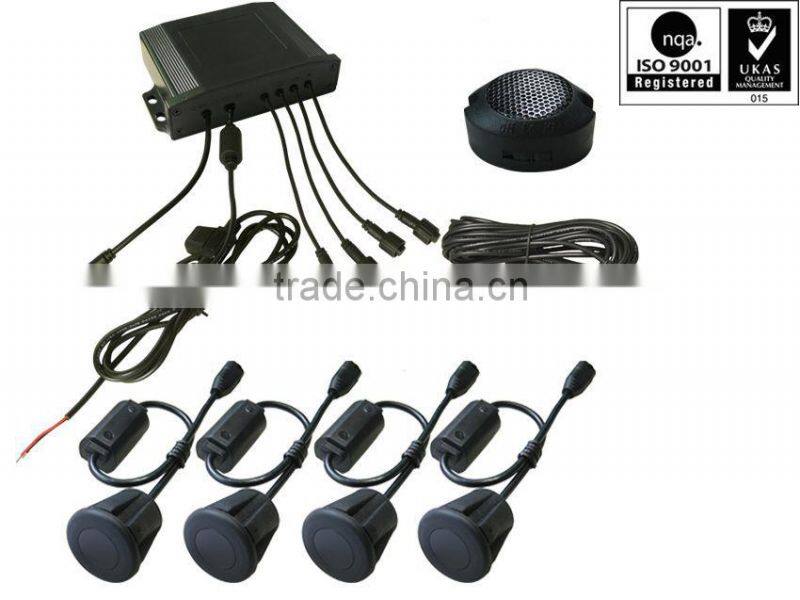

Truck and Trailer Reverse Parking Sensor System With Buzzer (SWB02-4-RFP) photo-1
Negotiable MOQ: 200 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Parking Sensor System, Parking Sensor
Voltage:
Other, 10~35V DC
Car Make:
General
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Parking Sensor System, Parking Sensor
Voltage Other, 10~35V DC
Car Make General
Place of Origin Guangdong, China
Brand Name Elitek
Model Number SWB02-4-RFP
Warranty 3 year warranty

Specifications

1.SmartSensor technology;
2.Self-diagnosis function;

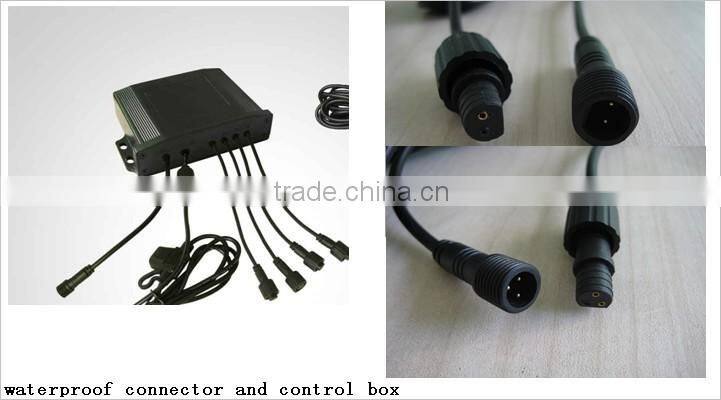

3.waterproof twist connector sensors;
4.detection from 0cm- 2.5m

 Advantage:

1. Professional parking sensor manufacturer with CE, FCC, RoHS and naq certification

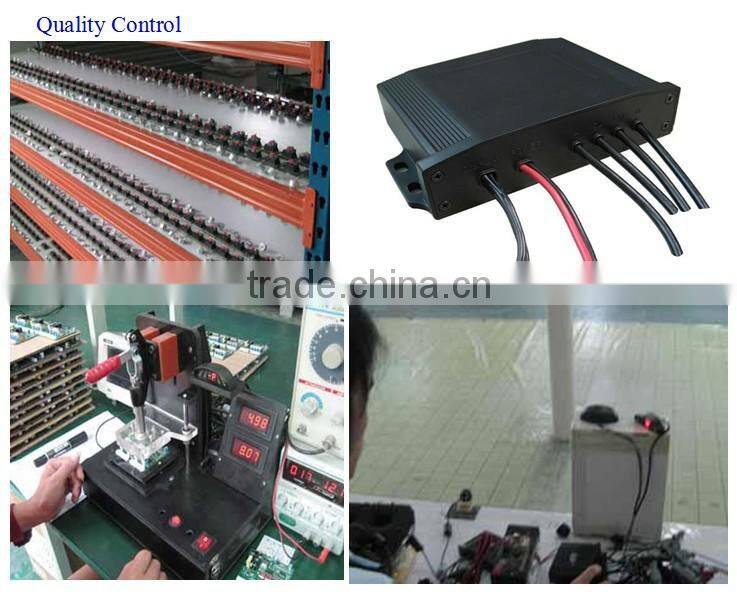

2. Strict product quality control from IQC to PQC and FQC

3. Automatically engages as soon as you place your car into reverse.

4. 3 years aftersales warranty

5. Replaceable sensor design optional

6. Product qualification 99.5%

7. Sample available

8. Fast delivery



  Technical Specification:



 Model No.:     SWB02-4-RFP

1)  Truck/Trailer Waterproof Rear 4 Parking Sensor System;Waterproof rank:IP68
2) Sensor detection range: 0cm~2.5m;
3) Display range: 45cm~2.5m;

4) SmartSensor technology, intelligent to discern the spare tyre from real obstacles

5) Advanced self-diagnosis with error indication;

6) Improved anti-interference function;
7) All weather design;
8) 4*RFP SmartSensor module built in double angle sensor, fit for metal tube bumper use, small connector type;
9) Precision accuracy: CM;
10) BUZ02, fixed volume buzzer;
11) Sensitivity sellect option, manual switch to sellect the weak or stong sensivity
12) Preferred detection mode, manual switch to choose limit the lateral sensors or keep all detection range the same

13) Programmable, remote software upgrade

14) Power Input: 10~35V DC;
15) Industrial cables and connectors, Microchip MCU.

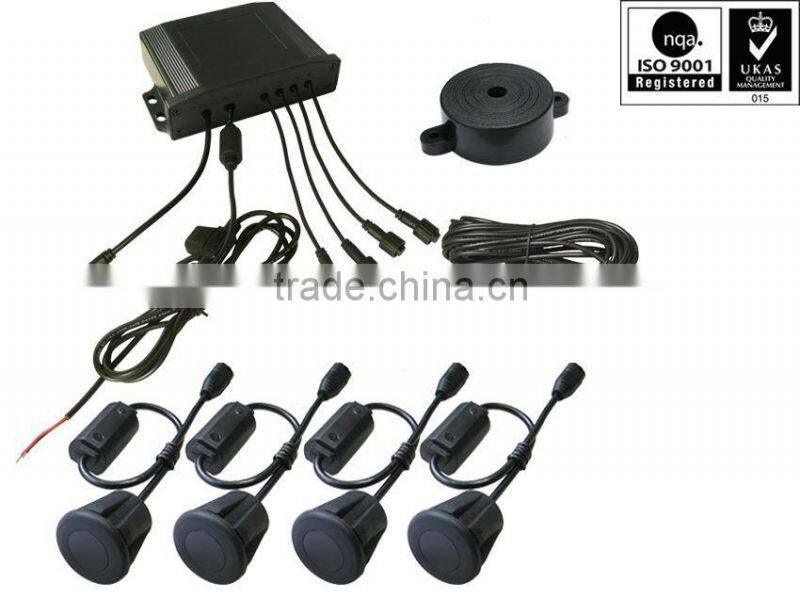

 truck and trailer reverse parking sensor system with buzzer (SWB02-4-RFP)truck and trailer reverse parking sensor system with buzzer (SWB02-4-RFP)truck and trailer reverse parking sensor system with buzzer (SWB02-4-RFP)



 Product Parameter:

Description

Min

Type

Max

Unit

Power voltage for S series

10

24

35

V  DC

Power voltage for H&E series

9.6

12

15

V  DC

 Operating current





150

mA

Operating temperature

-20



80

°C

 Operating frequency

39.3

40

40.7

KHz

Horizontal detection angle



120



°

 Vertical detection angle



60



°

Distance detection accuracy



1



cm

Detection range

0.05

0.9

2.5

m

Buzzer sound volume

75



105

dB

RF Frequency



433



MHz

Whole set

Waterproof Control box

 1PCS

 Sensors

 4PCS

15cm with industrial connectors sensor cables 5m

 4PCS

 LED display 1m+14m cable

1PCS

Power harness with Fuse  1.5 m length

1PCS

                Ownermanual

1PCS

 Hole saw (22mm or screws optional)

1PCS

Accessory pack

1PCS

BUZZER OPTIONAL 15m cable

1PCS

truck and trailer reverse parking sensor system with buzzer (SWB02-4-RFP)

Company Description

Founded in 2003, Shenzhen Elitek Electronics Co., Ltd. is specialized in the developing, designing and manufacturing of parking sensor system. Our talented engineers & skilled workers have more than 10 years of design & manufacturing experience in transducers, sensors and electronic control unit (E.C.U.) as well as the entire system, which ensures our parking sensors system always in high quality & most reliability.

We hold the belief of "Best quality, Best service" in Elitek. So we try to open our own mould and make out our own components when we choose the best quality components from domestic and aboard to make out credit and rest assured products.

We do carry out ISO9001:2008 requirement in the practice of our manufacturing & quality inspection process, and we do have our own relative CE&ROHS&FCC certificates to offer the best service to our customers sincerely.
