Help CenterDC24V Bus/trailer/truck Parking Sensor With 3 Year Warranty and Waterproof IP68(SDW-4-UMP)
Related Products
-
DC24V Truck Parking Sensor With Camera Optional,3 Year Warranty and Waterproof IP68NegotiableMOQ: 1 Piece -
DC24V Trailer/truck Parking Sensor With 3 Year Warranty and Waterproof IP68(SDW-4-UMP)NegotiableMOQ: 1 Piece
-
OSD Video Parking Sensor for Chervolet With Camera (VE01-4-MF0)NegotiableMOQ: 1 Piece
-
OSD Video Parking Sensor for Volkswagen With Camera (VE01-4-MF0)NegotiableMOQ: 1 Piece
-
OSD Video Parking Sensor for VW With Camera (VE01-4-MF0)NegotiableMOQ: 1 Piece
Specifications
DC24V bus/trailer/truck Parking sensor1. 4 waterproof detections
2.high sensitivity with smart sensor
3. With camera

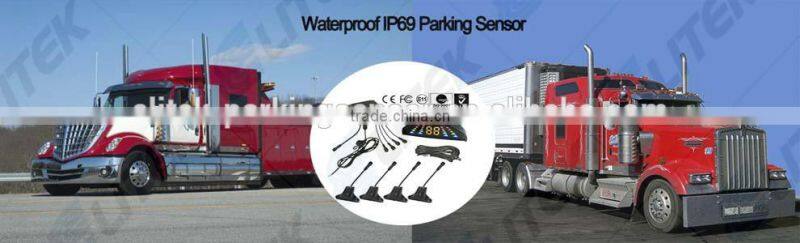

DC24V bus/trailer/truck Parking sensor with 3 year warranty and waterproof IP68(SDW-4-UMP)
1. Main Features
| --Lightning protection anti-interference host (12-24 VDC) |
| --With buzzer crescent BI..BI..BI.. When backup vehicle, The volume is not less than 100 db. |
| --Monitor direct connection control box to supply power. cable length without being limited by the car. |
| --Distance will display on the Screen with |
| --2 style probe: Bracket screws or punch probe |
| --Probe special waterproof design, level of waterproof IP67. |
| --Lightning protection design, containing 600 w TVS diode. |
| --4 core aviation joint line (extension cord with 15 meters) |
2.More Specification
Model No.: SDW-4-UMP
1) Truck/Trailer/Bus Parking Sensor with Waterproof IP68 and Rear 4 Sensor
2) Sensor detection range: 0cm~2.5m;
3) Display range: 45cm~2.5m;
4) Advanced self-diagnosis with error indication;
5) Improved anti-interference function;
6) All weather design, waterproof level: IP68;
7) 4*UMP SmartSensor module built in double angle sensor, fit for metal tube bumper use, small connector type;
8) Precision accuracy: CM;
9) DSP01 display, 3 color LED 4 channel w/ buzzer built-in & digital readout;
10) Power Input: 10~35V DC;
11) Industrial cables and connectors, Microchip MCU.
3.Install user manual
For truck application, screw the sensors on the bar behide bodywork, with the angled rubber spacer to fit it well.
4.Truck parking sensor model list:
22mm rubber flat sensor – RF0/RFP
22mm rubber angled sensor – RA7/R7P
22mm Upper Mounted Sensor-UM0/UMP

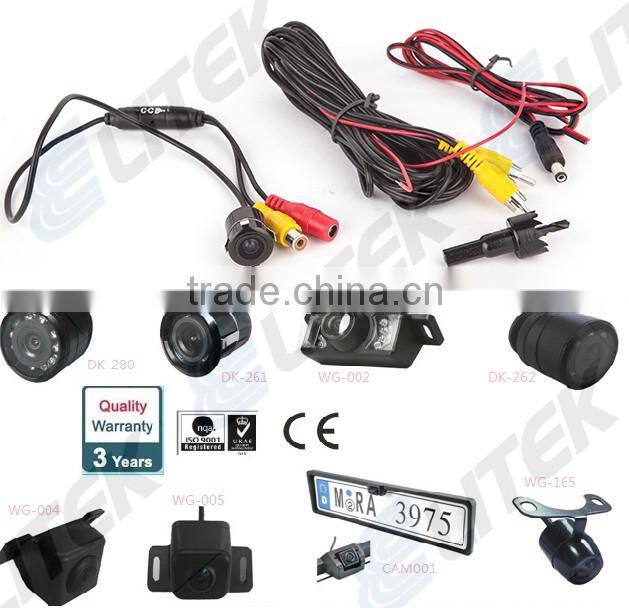

5. Truck parking sensor with camera optional:
High-definition and 135 degree viewing angle car backup camera
Sony CCD or CMOS lens
Waterproof
Image Sensors |
SONY CCD lens |
color CMOS lens |
IP rating |
Ip68 |
Ip68 |
TV System |
PAL or NTSC |
NTSC or PAL |
Effective Pixels |
628× 582/628× 492 |
580× 540/580× 492 |
Sensing Area(mm) |
4.9× 3.7 |
|
Resolution(TV Line) |
480 |
420 |
Horizontal Sync Frequency (KHZ) |
15.625/15.734 |
|
Vertical Sync Frequency (HZ) |
50/60 |
|
Video output |
1Vp-p, 75Ohm, RCA male |
|
Gamma Consumption |
0.45 |
|
AGC |
Auto |
|
BLC |
Auto |
|
S/N Ratio |
Betterthan 48dB |
|
Lens Angle (Deg. ) |
170° diagonal |
|
Current Consumption (mA) |
200 |
180 |
Power Supply (DCV) |
12V |
|
Operating Temperature (Deg. C) |
-20~+70(RH95%MAX. ) |
|
Storage Temperature (Deg. C) |
-40~+80(RH95%MAX. ) |
|
Size |
Same as the number plate reversing lamp of the original car |
|
LED lamp inside the camera (if camera has built-in LED light) | ||
Power Supply (DCV) |
12V |
|
Light color |
Thin yellow |
|
Current Consumption (mA) |
30~60mA |
|
Operating Temperature |
-20~+100 |
|
Storage Temperature |
-40~+120 |
|
6.Packing contents:
| Control box | 1PCS |
| Sensors | 4PCS |
| 15cm with industrial connectors sensor cables 5m | 4PCS |
| LED display 5m cable | 1PCS |
| Power harness with Fuse 1.5 m length | 1PCS |
| Owner’s manual | 1PCS |
| Hole saw (22mm or screws optional) | 1PCS |
| Accessory pack | 1PCS |
| BUZZER OPTIONAL 15m cable | 1PCS |
7.Truck parking senosr FAQ
1. Is the small order for wholesale available?
---Yes, small order for wholesale is ok. 1 set sample available supply.
2.What's your Trade Term?
---Most used Trade Term is FOB Shenzhen, CIF are OK.
3. What's your payment items?
---TT 30% advanced as deposit, payment balance before shipment.
---Paypal, Western Union for sample and small order available.
4.What's the dispatched date for MOQ 500 sets?
---The lead time for 500 sets is 15-25 working days.
5.May I be an agent in my country?
---Sure, you can. If the order quantity is above 8000 sets a year, it's ok. We will never sell the same products to the dealers in your region.
