Specifications
OSD Video parking sensor for VW1. 4 waterproof detections
2.high sensitivity with smart sensor
3. Camera video support
OSD video parking sensor for VW with Camera (VE01-4-MF0)
♦7 Years for manufacture
♦Strong R&D team.
♦Accept OEM & ODM.
1. More specification advanced
• OE level;
• Stable quality from professional manufacturer;
• 2 years Warranty;
• Sample is available for further evaluation;
• NTSC CMOS or PAL CMOS CAMERA SUPPORT
• Offer long term OEM/ODM service,
Model No.: VE01-4-MF0/TF0
1) OSD video parking Sensor System, fit for all passenger cars;
2) Sensor detection range: 0cm~2.5m;
3) Buzzer range: 40cm~1.5m;
4) Advanced self-diagnosis with error indication;
5) All weather design, plastic housing;
6) 4*MF0/TF0 double angle sensor, 21.5mm plastic flat, 2.5m cable with connector; Connectors for sensor cable to control box are with click lock.
7) Video screen digital output, virtual car mode/ 3 LED color bar/distance data showed; Rearview image showed when work with third party camera and monitor;
8 ) BUZ01, "hi-low-off" switch option;
9) Power Input: 9.6~15V DC.
10) Third party camera support;

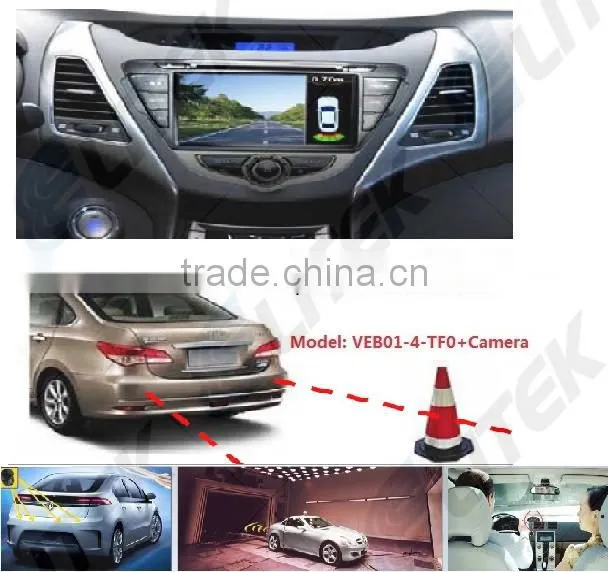

2.OSD video parking sensor for VW with Camera
Rear view camera+Video parking sensor fitted
A.Car rear view camera and ultrasonic sensor system
B.Smart detection, No blind area and high reliability
C.TFT LCD monitor(GPS/Video/Music panel) on screen video
D.Display the distance on the screen
E.Alarm by three-step Bibi sound

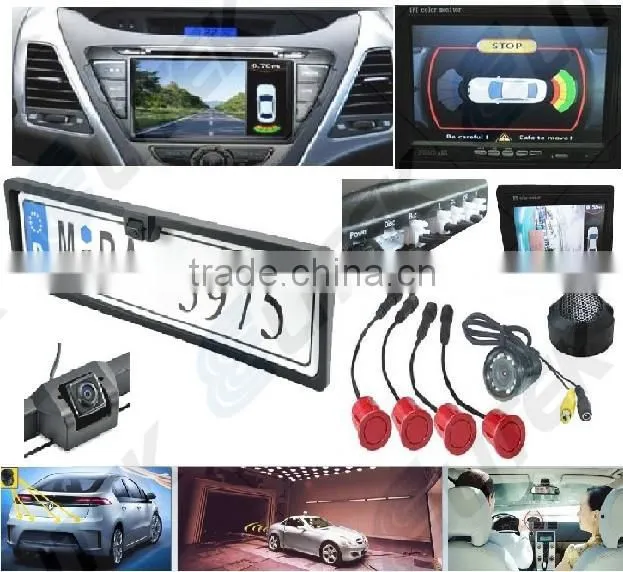

3.OSD video parking sensor for VW with Camera
Packing contents:
| Control box | 1PCS |
| Sensors | 4PCS |
| 15cm with industrial connectors sensor cables 5m | 4PCS |
| LED display 5m cable | 1PCS |
| Power harness with Fuse 1.5 m length | 1PCS |
| Owner’s manual | 1PCS |
| Hole saw (22mm or screws optional) | 1PCS |
| Accessory pack | 1PCS |
| BUZZER OPTIONAL 15m cable | 1PCS |

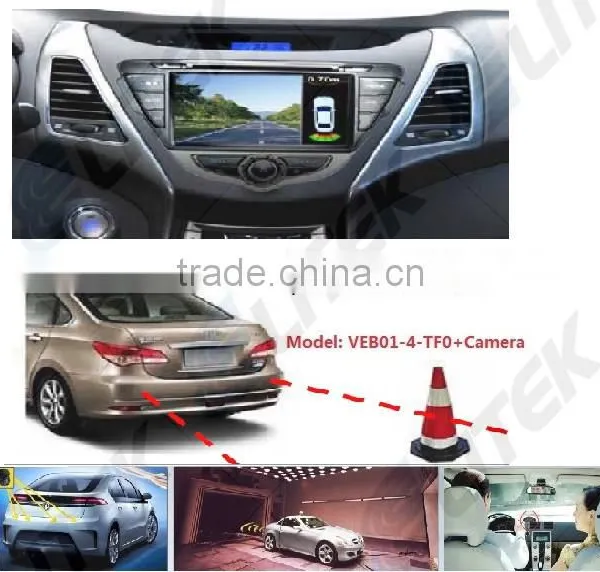

4. OSD video parking sensor for pickup/truck/bus/van/sedan with Camera
Factory view
