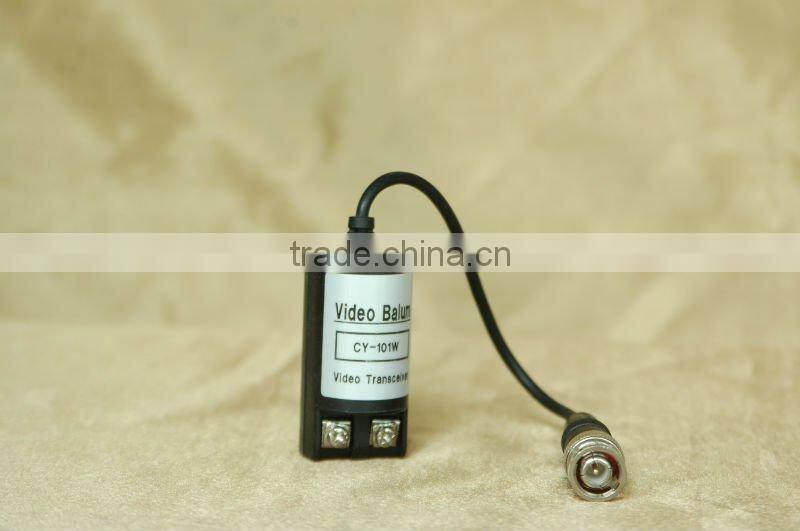

1 CH Passive UTP Video Balun by Twisted Wire

Henan HMCY Electronic & Technology Co., Ltd.

US$ 0.5 - 1 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Model Number:

CY-101W

Payment & Shipping

Payment Methods:

Port of Shipment:

zhengzhou(Optional)

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name CY

Model Number CY-101W

Specifications

1 Distance up to 300M.
2 Anti-jamming, surge protection..
3 CE,FCC,ROHS Certificated.
4 Power supply: AC/DC 12V-24V.

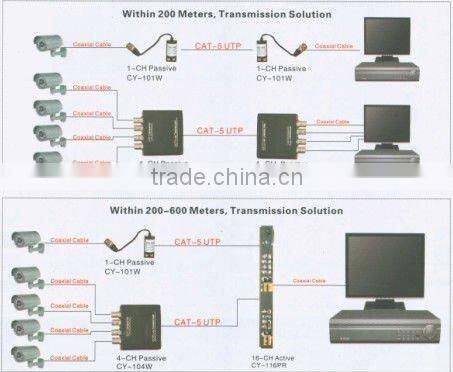

1Channel passive Video Balun over cable Cat5

Technical Parameters

Type	1V (Passive)	4V 1D V1		8V (Passive)		8/16/32V (Passive) 19”1URack	1V (passive)		1V 1D 1A	4V (Active)	8/16/24V (Active) 19”1U rack
Video	Frequency response range: DC-8MHz; common-mode rejection/Differential Mode Rejection Ratio: 15KHz-8MHz 60dB(typical value)
Wire Type	Class 3 or above wire(0.48-1.31mm); DC loop resistance of each wire core pair 18Ω/100m, Differential capacitance 62pF/m
Impedance Feature		Twisted wire, binding post or RJ45: 100Ω; Video BNC or coaxial cable: 75Ω
Power	/	/		/	/		AC-DC 12-24V80mA			12V 300mA	AC 100-240V 50/60Hz
Transient Protection	/	/		/	/		6KV 10/700us IEC61000-4-5 (ground benigh)
Volume (mm)	47X15X16	81X82X29		120X78X32	432X97X44		81X82X29	81X82X29		120X97X32	432X97X44
Weight(g)	C-20; L-16	100		210	1010/1110/1310		88	120		220	1200/1320/1500
Working Environment			Temperature Range(-20~60°C)
			Relative Humidity Range(0~95% non-condensing)
