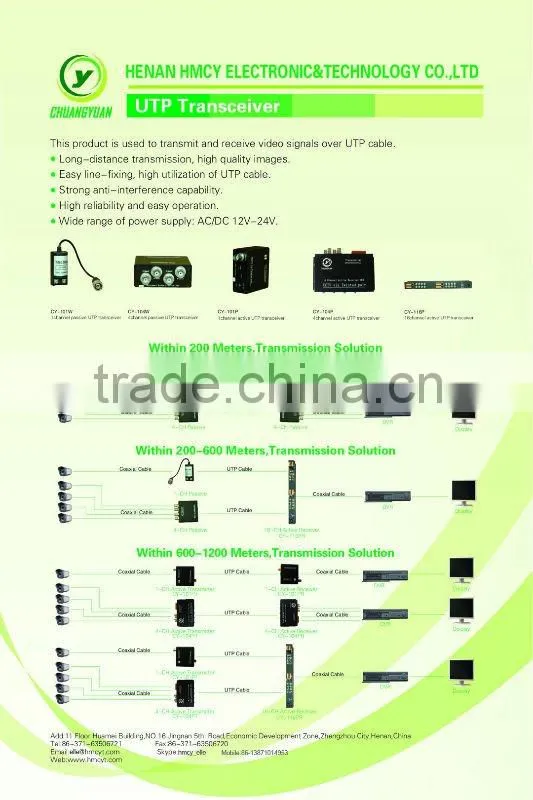

Help Center16-Channel Active Video Balun for CCTV Product
Related Products
-
CCTV 1Channel Passive Video Balun UTP Video ConverterNegotiableMOQ: 50 Pieces -
1 Channel Passive Video Balun Over UTP Twisted Pair WireUS$ 0.5 - 1MOQ: 100 Pieces
-
1channel Video Balun Over Twisted Pair CableNegotiableMOQ: 50 Pairs
-
1ch Video Power and Data UTP TransceiverUS$ 1 - 8MOQ: 50 Sets
-
Video Balun With Video Power Data Transmission Over UTPUS$ 1 - 8MOQ: 50 Sets
Specifications
1.16channels active UTP transceiver2. Multi-channels transmission.
3 Low cost , easy installation.
4 Up to 800M.
Technical Parameters
Type |
1V (Passive) |
4V 1D V1 |
8V (Passive) |
8/16/32V (Passive) 19”1URack |
1V (passive) |
1V 1D 1A |
4V (Active) |
8/16/24V (Active) 19”1U rack |
|||||
Video |
Frequency response range: DC-8MHz; common-mode rejection/Differential Mode Rejection Ratio: 15KHz-8MHz 60dB(typical value) |
||||||||||||
Wire Type |
Class 3 or above wire(0.48-1.31mm); DC loop resistance of each wire core pair 18Ω/100m, Differential capacitance 62pF/m |
||||||||||||
Impedance Feature |
Twisted wire, binding post or RJ45: 100Ω; Video BNC or coaxial cable: 75Ω |
||||||||||||
Power |
/ |
/ |
/ |
/ |
AC-DC 12-24V 80mA |
12V 300mA |
AC 100-240V 50/60Hz |
||||||
Transient Protection |
/ |
/ |
/ |
/ |
6KV 10/700us IEC61000-4-5 (ground benign) |
||||||||
|
Volume (mm) |
47X15X16 |
81X82X29 |
120X78X32 |
432X97X44 |
81X82X29 |
81X82X29 |
120X97X32 |
432X97X44 |
|||||
Weight(g) |
C-20; L-16 |
100 |
210 |
1010/1110/1310 |
88 |
120 |
220 |
1200/1320/1500 |
|||||
Working Environment |
Temperature Range(-20~60°C) |
||||||||||||
Relative Humidity Range(0~95% non-condensing) | |||||||||||||
