Video Anti-jamming Device of CCTV surveillance products
- 3000 Set / Sets per Month
- Ningbo
- T/T L/C Credit Card PayPal
Product Details
Place of Origin: | Henan, China | Brand Name: | chuangyuan | Model Number: | CY-902 |
Product Description

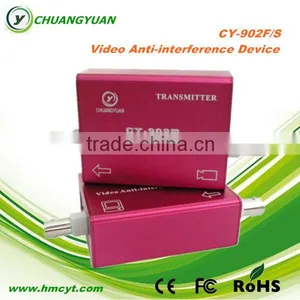

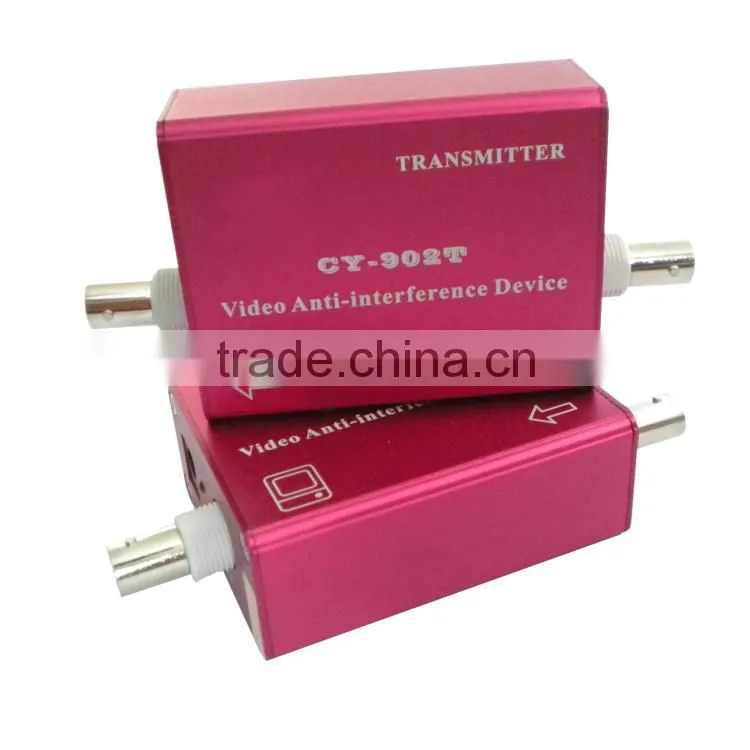

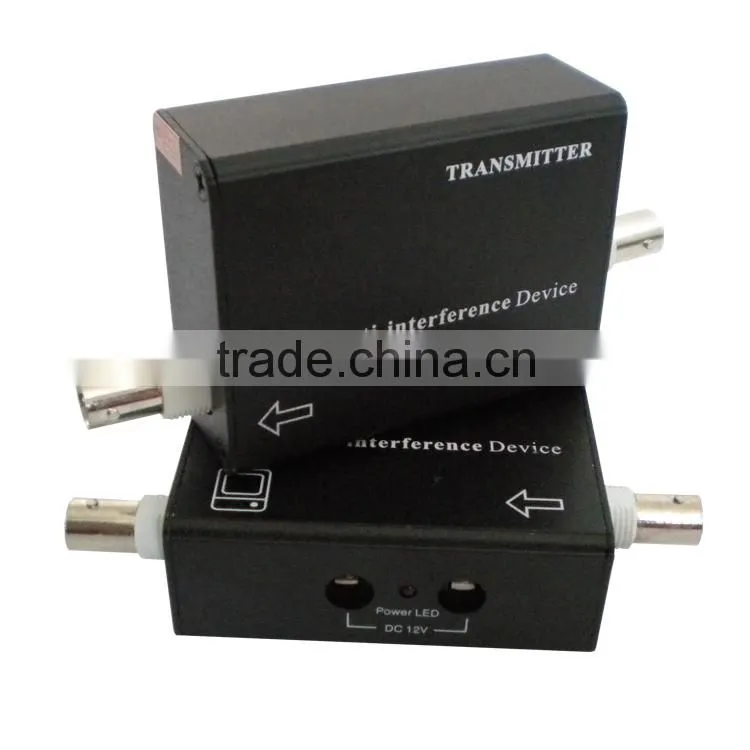

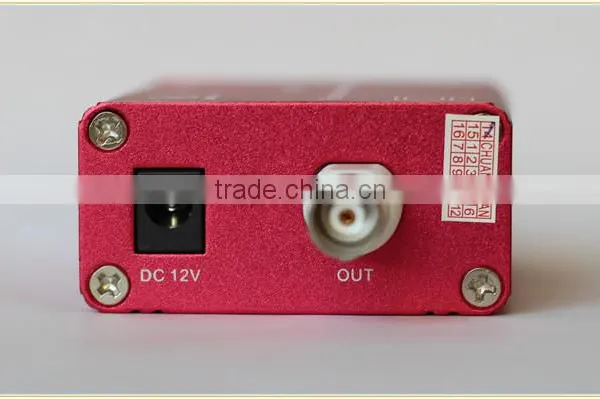

Video Anti-interference Device /Video camera Jammer( CCTV surveillance )
Function
Video Anti-interference Device keeps video signals from strong electromagnetic interference during video transmission, to ensure video signals transmitted to be true, stable, clear and without distortion. It helps effectively solve the problems of image floating, distortion, ghosting, etc..
Features
- Keep video signals from external electromagnetic interference by adjusting signal frequencies;
- High level of integration, small in size;

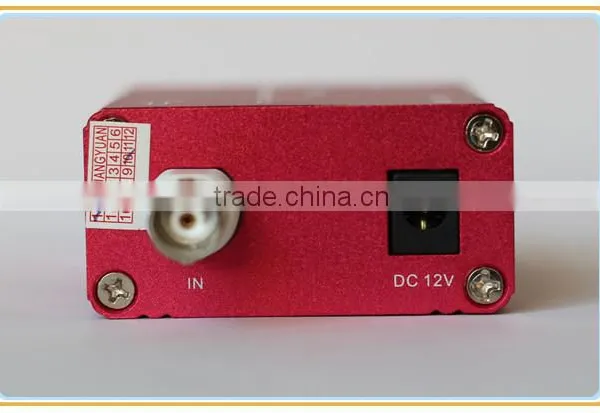

- SMT Integrated Circuit, low power consumption, use 12V power supply as cameras do;
- of Aluminum Alloy Shell, durable and good at heat dissipation;
- Lengthen the transmission distance up to 1.2km.
Application Fields
Around elevators, electric motors, high-tension electricity lines, production lines, radio launching towers, frequency conversion equipments, other strong interfering environments, etc.
Technical Parameters
Transmitter(T) | Receiver® | ||
Video In | 1.0Vp-p | Video Out | 1.0Vp-p |
Video Impedance | 75Ω | Video Impedance | 75Ω |
Output Level | 110dB | Input Level | 70-110dB |
Output Impedance | 75Ω | Input Level Adjustment | -20dB |
Output Frequency | 38.9mHZ | Input Impedance | 75Ω |
Frequency Accuracy | 5KHz |
|
|
Power Supply | DC12V/500mA | Power Supply | DC12V/500mA |
Transmission Distance
Distance for SYV | Distance for SYWV | ||
SYV75-3 | ≤450m | SYWV75-5 | ≤910m |
SYV75-5 | ≤630m | SYWV75-7 | ≤1300m |
SYV75-7 | ≤790m | SYWV75-9 | ≤1580m |
SYV75-9 | ≤1150m | SYWV75-12 | ≤2275m |

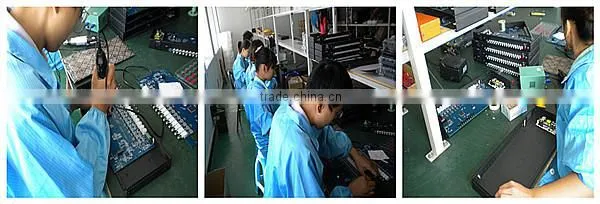

Established as a high-tech enterprise in 2002, Henan HMCY Electronic & Technology Co., Ltd. is mainly specialized in professional Research & Design, manufacturing, and sales of video transmission equipment in security and surveillance field. With first-class production management and strict quality control system, we have been well-known for our product quality, reasonable price and satisfactory services.

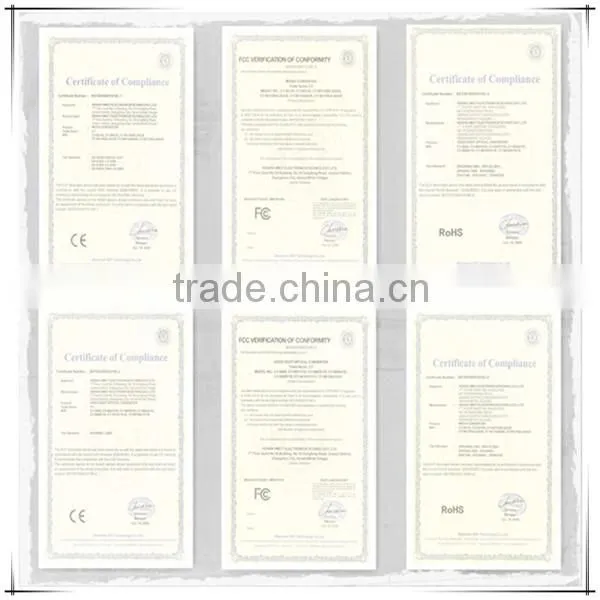

Our main products are: Fiber optic video converte, Coaxial video multiplexer, Ethernet media converter, HD IP Camera, Surge protector, etc.. All had been approved with CE, FCC, and RoHS certificates.
