Ceramic Fiber Material Blanket

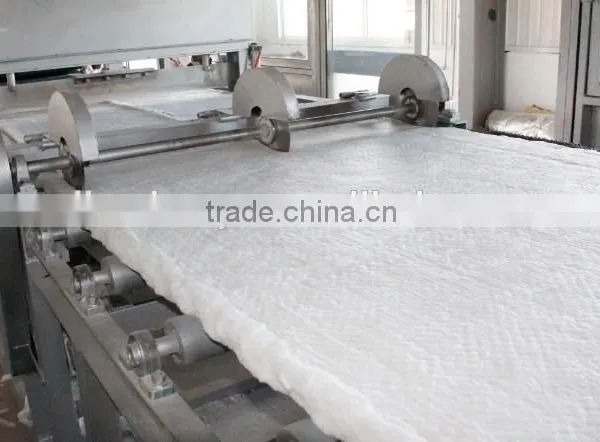

The Ceramic Fiber Needle-punching Blanket is made through intensive needle punching processing. The product does not contain any bond or other compositions,and also no slag inclusion content. The intensive
needlepunching technics improved the fiber intertexture and the resistance performance against delamination as
wellas the tensile strength.It have a good high temperature shrinkage after the heat treatment of 750-950 during
the producing. Beside the charicteriatics in common,it have better sound insulation performance and
mechanism strength,is easy to machining and install.
1.Width:610mm
2.Density:96kg/m3,128kg/m3
2..Thickness:12.5mm, 25mm,50mm
3.Length:3600mm,7200mm,14400mm
Description:
It is a needled blanket made from our ceramic bulk fiber which can withstand temperature up to 1400C degree(depends on different quality grades). The blanket is lightweight, flexible, and available in a wide variety of thicknesses, widths and densities.
Specification:
Item |
COM |
STD |
HP |
HA |
HZ |
|
Specification tem(°C) |
1260 |
1260 |
1260 |
1400 |
1400 |
|
Working temp(°C) |
1000 |
1000 |
1100 |
1200 |
1350 |
|
Color |
White |
White |
White |
White |
White |
|
Dens(kg/m3) |
96 128 |
96 128 |
96 128 |
96 128 |
96 128 |
|
|
Rate of liner(%) (24h.128kg/m3) |
-4 (1000°C) |
-3 (1000°C) |
-3 (1100°C) |
-3 (1200°C) |
-3 (1350°C) |
|
|
Rate of thermal Conductivity(W/m.K) (128kg/m3) |
0.09(400°C) 0.16(800°C) |
0.09(400°C) 0.16(800°C) 0.20(1000°C) |
0.09(400°C) 0.16(800°C) 0.20(1000°C) |
0.12(600°C) 0.20(1000°C) |
0.15(800°C) 0.20(1000°C) |
|
Standard roll dimension |
12.5x610x14400, 25x610x7200, 50x610x3600 |
|||||
Tensile strength(Mpa)(128kg/m3) |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
|
Chemical Composition (%) |
Al2O3 |
44 |
46 |
47-49 |
52-55 |
39-40 |
Al2O3+SiO2 |
96 |
97 |
96 |
99 |
- |
|
Al2O3+SiO2+ZrO2 |
- |
- |
- |
99 |
||
ZrO2 |
- |
- |
- |
15-17 |
||
Fe2O3 |
1.2 |
1.0 |
0.2 |
0.2 |
0.2 |
|
Na2O+K2O |
=0.5 |
=0.5 |
0.2 |
0.2 |
0.2 |
|
