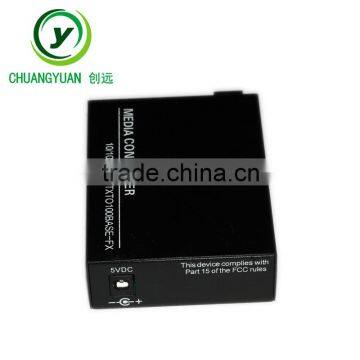

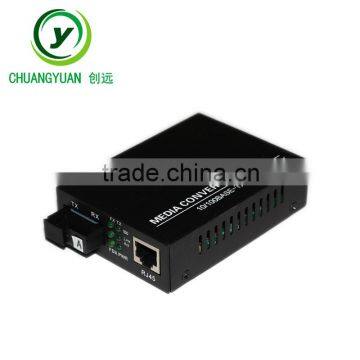

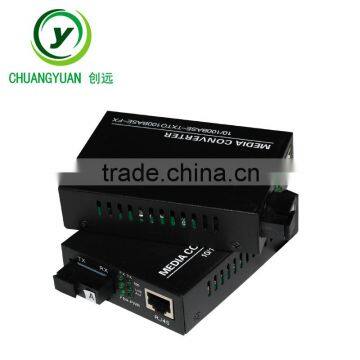

10/100Base-TX to 100Base-FX Ethernet media converter simplex
fiber media converter
GENERAL DESCRIPTION

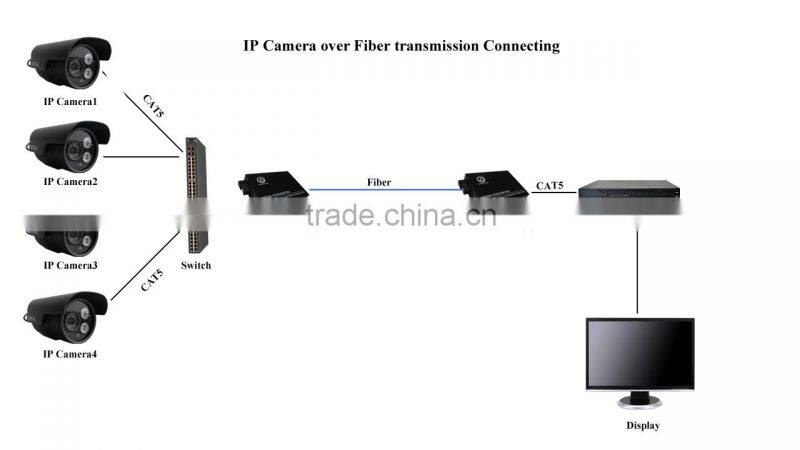

Ethernet media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber. it can extend the
transmission distance to several kilometer or hundred kilometer. Using media converter is an economical solution to achieve long distance transmission.
FEATURES
1.Built in a 2-port switch: - Pass all packets without address and CRC check (optional)
2. Supports modified cut-through frame forwarding for low latency
3. Supports pure converter mode data forwarding for extreme low latency
4. Supports flow control for full and halt duplex operation
5. Bandwidth control
6. Forward 1600 bytes packet for management
7. Optional forward fragments
8. Supports 100Base-FX standard
10. Built in 128Kb RAM for data buffer
11.Supports auto MDI-MDIX function
12. Supports link fault pass through function (LFP)
13. Supports for end fault function (optional)

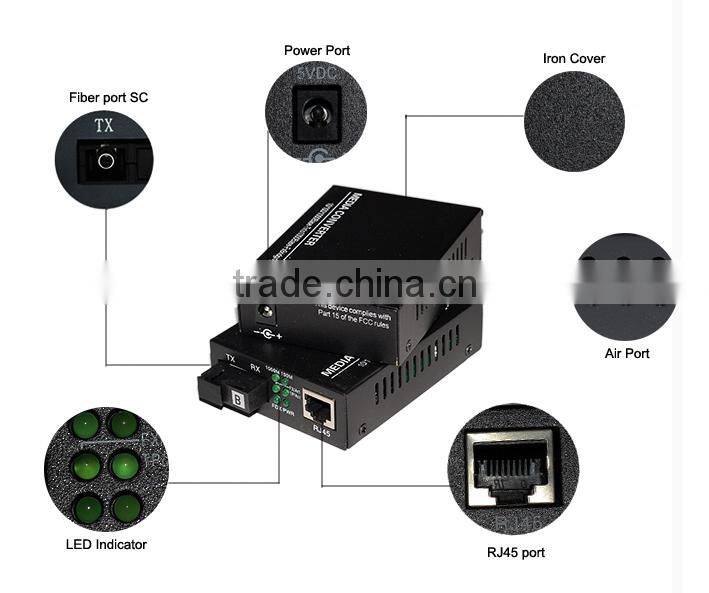

14. LED display for link/activity, full/half, 10/100M
15. Support EEPROM configuration (optional)
16. the longest transmission distance reach 120 kilometers
STANDARD
IEEE802.3 ETHERNET STANDARD
IEEE802.3u FAST ETHERNET STANDARD
PRODUCTS CLASSIFICATION
1. ACCORDING TO OUTLINE
standalone media converter;
Card media converter;
Rack System Chassis(2U);
2. ACCORDING TO QUANTITY of FIBER
Single fiber bi-direction media converter,
Dual fiber media converter
3. ACCORDING TO TYPE OF FIBER
Muti-mode media converter,
Single mode media converter;
4.ACCORDING TO POWER SUPPLY
200V/110V AC input power standalone media converter;
5V DC input power standalone media converter;
5. 5V DC input power standalone media converter can be applied for 14 slots rack mounted chassis, Card media converter applied for 16 slots rack mounted chassis.
TECHNICAL PARAMETER
10/100M multimode media converter |
10/100M single mode media converter |
|
Wavelength |
850nm,1310nm |
1310nm,1550nm |
Optical Port |
SC |
SC |
Cable |
MM Fiber / Twist Pair |
SM Fiber / Twist Pair |
Transmission Type |
10/100M FDX/HDX |
10/100M FDX/HDX |
Transmission distance |
500M¬2KM |
20/40/60/80/100/120KM optional |
MTBF |
>3 years |
>3 years |
BER |
<1E-8 |
<1E-8 |
Data Buffer |
1Mbit |
1Mbit |
Power temperature variation |
0.2mw/℃ |
0.2mw/℃ |
Input Power Range(dBm) |
0~-30 |
0~-30 |
Operate Temperature |
0℃~70℃ |
0℃~70℃ |
Storage Temperature |
-45℃~80℃ |
-45℃~80℃ |
Imax |
2.5w |
2.5w |
Power |
FCC Part15 |
FCC Part15 |
EMC |
FCC Part15 |
FCC Part15 |
Size |
9.4*7.0*2.5cm (external power ) |
9.4*7.0*2.5cm (external power ) |
Solution
