P20 Outdoor DIP Dual Maintenance LED Screen Display
| LED Lamp | |
| Type | DIP346 |
| Brand | Epistar |
| Arrangement | 1R1G1B |
| Chip parameters | Red (620-625nm) IV:(1000-1200mcd) |
| Chip parameters | Green (520-525nm) IV:(2000-2500mcd) |
| Chip parameters | Blue (470-475nm) IV:(500-650mcd) |

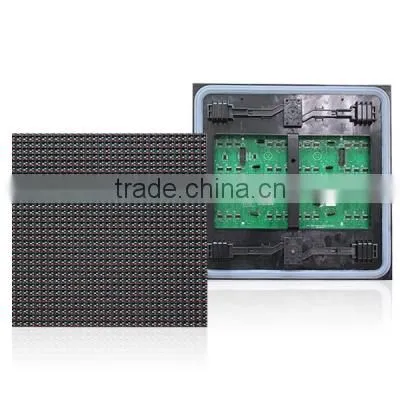

| LED Module | |
| Pixel Pitch | 20mm |
| Module Size(W*H*D) | 320×320×30mm |
| Module Resolution | 16×16=256(Dots) |
| Module Weight | 1.6kg |
| LED Cabinet | |
| Pixel Density | 2500 Dots/sqm |
| Cabinet Dimension(W*H*D) | 960×960×150mm |
| Cabinet Resolution | 48×48=2304(Dots) |
| Module Quanty /Cabinet | 3×3=9(Pcs) |
| Cabinets Material | Steel |
| Cabinet Weight | 39kg |
| Non-Flatness | less than 0.5mm |
| Module interval | less than 0.5mm |
| Brightness | 6500 cd/sqm |
| Color temperature | 6500K |
| Viewing Angle | 110(Horizontal), 55(Vertical) |
| Nearest Viewing Distance | 23m |
| Power Consumption (Max) | 800 w/sqm |
| Power Consumption (Average) | 250 w/sqm |
| Refresh Rate | >1000Hz |
| Drive Mode/Driver Position | Static Combined driver board |
| Display Function | Text, Graphics, Video |
| Frame Frequency | no less than 60 frame/sec |
| Input Voltage | AC110-220V±10%, 50/60Hz |
| Output Voltage | DC-5V, 40A/60A/80A |
| Color Grayscale | 16bit |
| Gray Scale per Color | 65536 level |
| Color Processing | R(1024)×G(1024)×B(1024) |
| Brightness Adjustment | 256 color levels, can be adjusted manually and automatically optional |
| MTBF( mean time between failures) | 5000 hours |
| Life-span | 100, 000 hours |
| Protection Level | IP66/IP54 |
| Malfunction Dot Rate | less than 0.0001 |
| Working Temperature | -30oC~50oC |
| Humidity | 15%~85% |
| Control System | |
| Control Mode | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card, Receiving HUB |
| Software | LED Studio(HSTV-linsn) |
| Language | Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 10 ,Windows 7 and XP |
| Control Card Input | DVI, USB, RJ45, HDMI(Sold separately) |
| Communication Type | Net cable, 3G, WIFI(Sold separately) |
| Certificate | CE, ROHS, FCC, ISO9001, TUV |

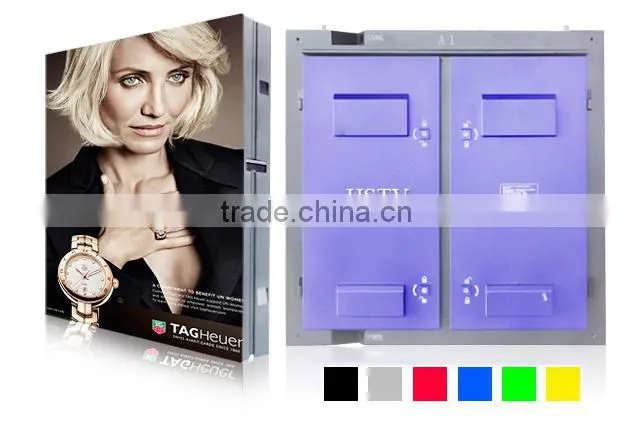

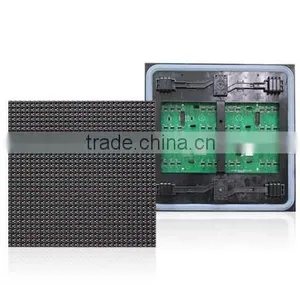

P20 Outdoor DIP Dual Maintenance Module Full Color LED Display
This cabinet of outdoor smd dual maintenance led display can be make up large advertising led wall with great advertising effect. It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
User-friendly design, easy installation
We adopt advanced technology to manufacture front and rear service available led module. No maintain space needed which make it suitable for different install environment. Modular design can save install and maintain cost for you and also improve work efficiency.

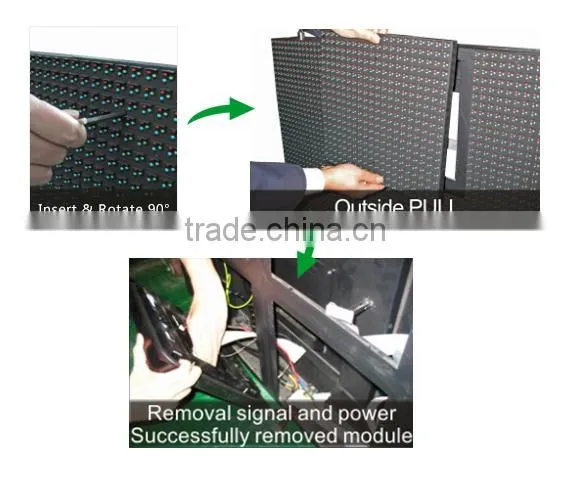

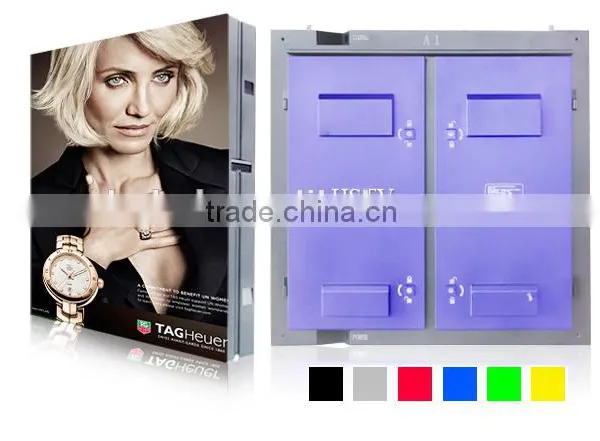

Advantages of front service led display
There is no screw between module and cabinet which easy to disassembly. Only seconds can be disassembled that can greatly improve work efficiency.

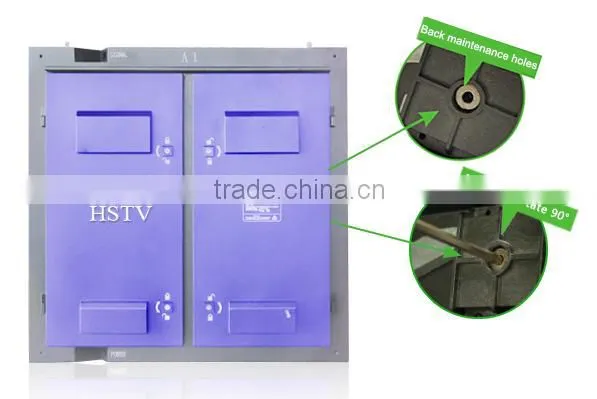

Front and rear maintenance
Module, power supply and receiving card can be serviced from front or back of led display which is help to save maintain cost and convenient for you.

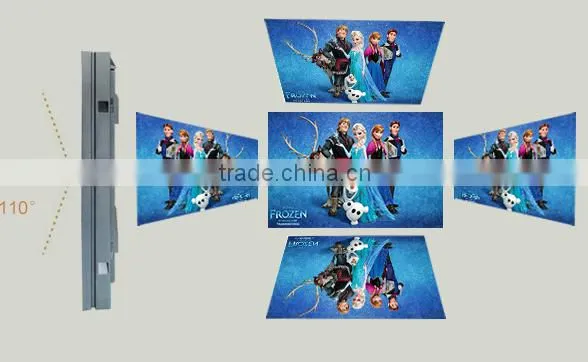

Large view angle
The display features a wide viewing angle of 110° which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.

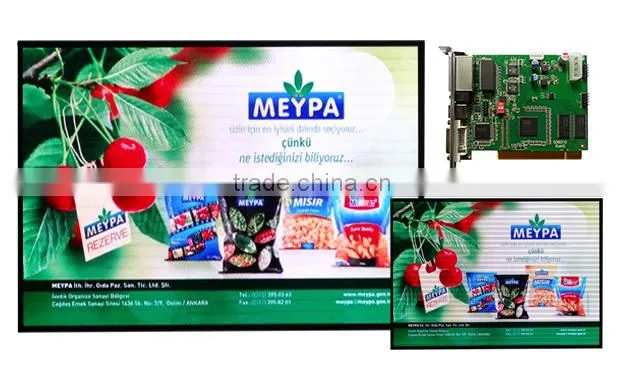

LINSN control system
Smooth display image is realized shooting with 1000Hz. Ensuring the clear image Stable performance, no flashing and black screen, large resolution loading and high refresh rate for the display.

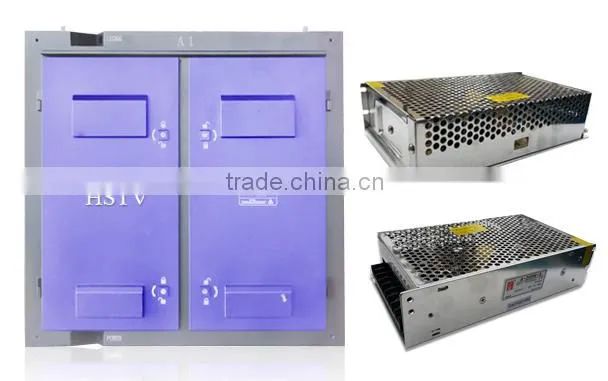

Big brand power supplier
Special waterproof design protect your product out of water , the high quality is worthy of trust.The switch power suppliers are with international famous brand configuration, high stability and long lifespan.

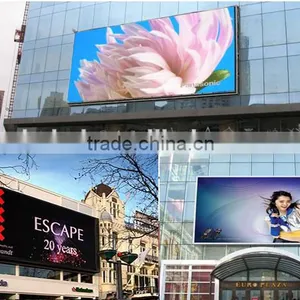

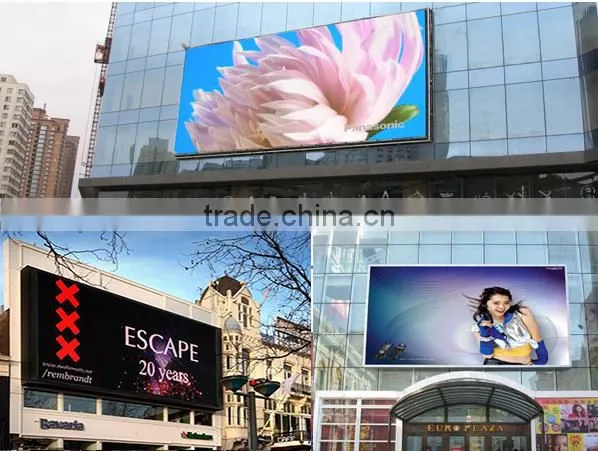

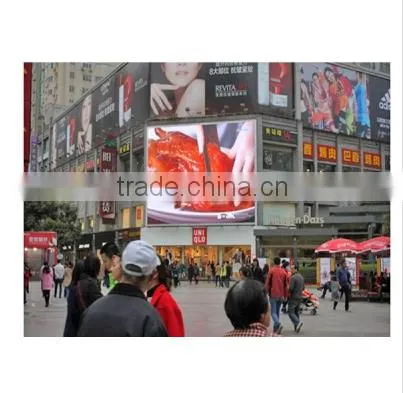

Application

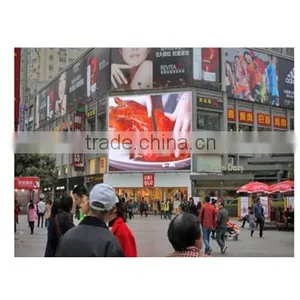

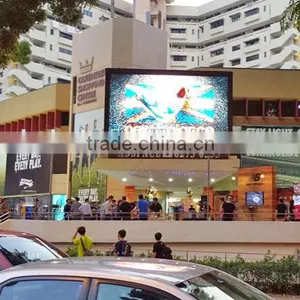

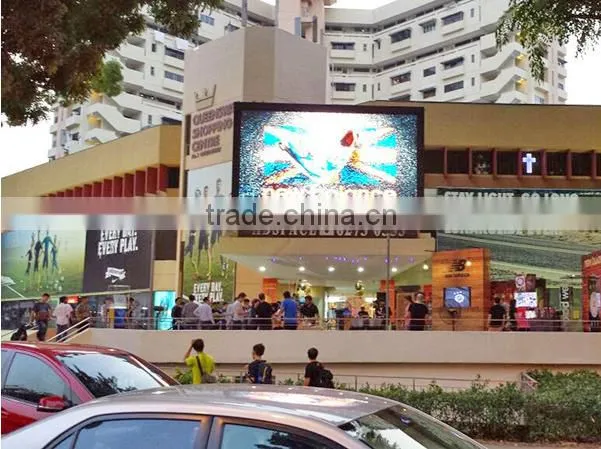

Our products have been installed in all over the world.

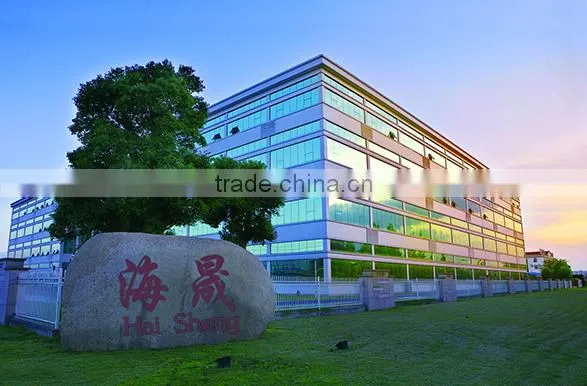

Outlook of our company building
Our products have passed CE, FC, RoSH and SGS certification and so on. We promise to offer qualified product to every customer.
Quality is the most important
Our quality principle is "Total Quality Management,ContinualImprovement, Excellent Service,Quick Response" In that way,every detail in production can get Quality Assurance.
Good after-sales service
After you pay the earnest money, we will manufacture and deliver your product immediately.
If the product is faulty we will provide free accessories of the product to you during the warranty period.
