Home > Products > Lathe bar feeder > Factory Sale China GD-565 good quality high performance Specification cnc lathe bar feeder auto feeder

Share|

Factory Sale China GD-565 good quality high performance Specification cnc lathe bar feeder auto feeder

Name: Factory Sale China GD-565 good quality high performance Specification cnc lathe bar feeder auto feeder
Brand: Yixing
Price: USD $6,800 - 6,999 / Set

FOB Price

USD $6,800 - $6,999 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Shenzhen Ningbo Hubei
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Horizontal	CNC or Not:	Normal
Automatic Grade:	Automatic	Max. Swing Diameter:	mm	Place of Origin:	Shanghai, China
Brand Name:	Yixing	Model Number:	GD565	Voltage:	380V
Power(W):	kw	Dimension(LWH):	mmmm	Weight:	330kg
Certification:	ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Factory Sale China GD-565 good quality high performance Specification cnc lathe bar feeder auto feeder

1. Suitable for "black" bar.

2. Therea no strict requirements for bars’straightness,

3. The residual material adopts the set parameters system,which can be operated simply and greatly saves materials.

4. The distance of drawing back allows optional setting.

5. It has self detect function of abnormal motion.If the bar is too short, or other abnormal movements, are all showing in the LCD screen.

6. The exchange of bar with different diameter can be finished in 1 minute.

7. It is suitable for, hexangular ,quadrilateral and other material.

8. Changing bar material needs very short time.

Our Cams Automatic bar feeder parameter

TYPE	GD-565	GD-565L
Bar dia	5-65mm
Bar length	Min:280mm	Min:280mm
Bar length	Max:1200mm	Max:1500mm
Height of spindle center	850-1250mm
Weight	300Kgs	330Kgs
Power supply	220v/380v/0.4A 3p 50/60Hz
Pressure supply	6Kgs/cm²
Volume	65mm=10pcs

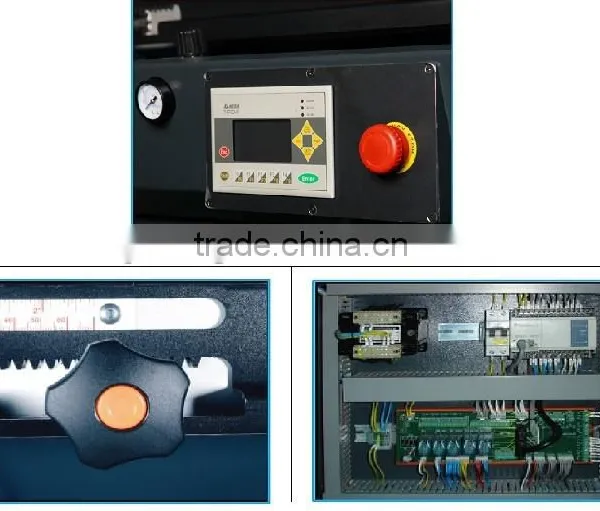

Our Cams Automatic bar feeder pictures

Our Services

GUARANTEE &AFTER-SVRVICE:

1.Guarantee for one year

2.24-hour technical support by email or on line

3.User-friendly English manual for machine using and maintaining

4.Free technician training for large customers.

5. Provide Engineers oversea training for our customers

6.We could provide OEM .
