China supplier BX42 4 aixs CNC Hydraulic Sheet Metal Bending Machine Precision CNC Lathe tools
1, Mitsubishi M70B control system, higher precision, good stability.
2,Flexible side milling power head, facehead, processing complex parts.
3, Replacable three jaw chuck, increase single parts processing range.
4, Unattended oil film feeder machine is for option.

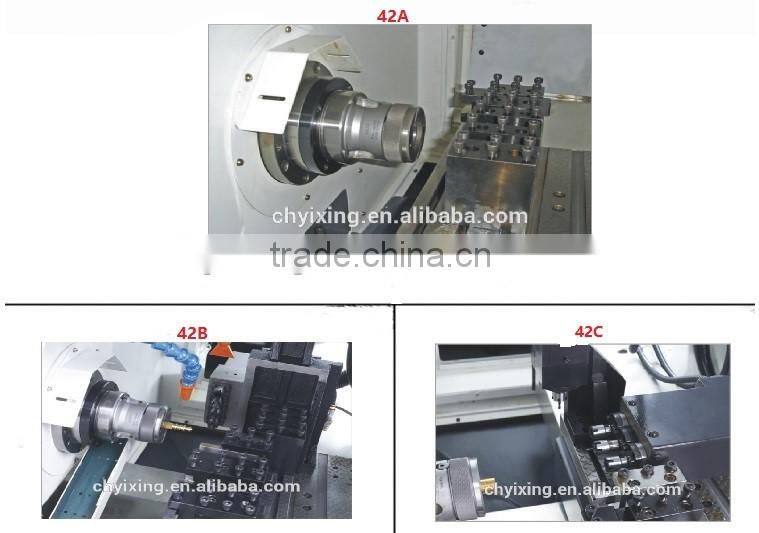

| Description | BX/42A | BX42B | BX42C | BX42C+B | |
| Machining Capabiltiy | Clamping Diameter | 3~32mm/3~42mm(Collet) | |||
| 100(Chuck) | |||||
| Max. machining length | 100mm | ||||
| Max. swing diameter | 270mm | ||||
| Positioning accuracy | 0.003mm | ||||
| Repeated positioning accuracy | 0.003mm | ||||
| Spindle end face runout | 0.002mm | ||||
| Spindle radial runout | 0.002mm | ||||
| Spindle indexing angle | Stepless indexing | ||||
| Machining parameter | Spindle speed | 6000rpm | |||
| power-driven tool speed | _ | 4000rpm | |||
| X-axis travel | 400mm | ||||
| Z-axis travel | 180mm | ||||
| Length of compound rest | 520 | 435mm | |||
| Tools size | 16mm*16mm/12mm*12mm | ||||
| Rapid traverse rate" | 32m/min | ||||
| Number of controllable axes | 2 axes | 3axes | 4 axes | 4 axes | |
| Electric motor | Spindle | 5.5/7.5kw | |||
| Power-driven tool | 400W/0.75KW/700W | ||||
| X,Z axis | 1.5kw | ||||
| Cooling oil pump | 0.25kw | ||||
| Lubricating oil pump | 0.1kw | ||||
| Power and others | Machine weight | 1700kg | 1750kg | 1850kg | 1900kg |
| Total power capacity | 12KVA/14KVA | 12KVA/14KVA | 13KVA/14KVA | 14KVA/14KVA | |
| Air pressure | 0.6-0.7Mpa | ||||
| Air flow | 14NL/min | ||||
| Cutting oil Tank volume | 200L | ||||
| Machine dimension(L*W*H) | 2000*1500*1700mm | ||||
| NC System | NC UNIT | MITSUBISHI M70B | |||
| Controlled axes | 2 axes | 3axes | 4 axes | 4 axes | |
| AXIS | X/Z | X/Z/C | X/Z/Y/C | ||
| Minimun setting unit | 0.001mm | ||||
| Minimum movement unit | 0.001mm | ||||
| Maximum command value | ± 8 digits | ||||
| interpolation | linear and circular ,conical,spiral | ||||
| Rapid traverse rate | 32m/min | ||||
| Cutting feed rate | 1-10,000mm/min | ||||
| Spindle override | 0-120%,10% /Part | ||||
| Dwell time | G04 0-99999.99 | ||||
| Rapid traverse override | F20,F25,F50,F100% | ||||
| ABS/INC command | X,Z:Absolute;U,W:Incremental | X,Y,Z:Absolute;U,V,W:Incremental | |||
| Tool offset | ± 6 Digits | ||||
| Tool offset sets | 64 sets | ||||
| LCD/MDI | 8.4" color TFT | ||||
| Language | English/Japanese/Chinese | ||||
| Storage capacity | 500 KB | ||||
| I/O interface | RS 232C | ||||
| Miscellaneous function | M5 Digits | ||||
| Spindle function | S5 Digits | ||||
| Tool function | T13 Digits | ||||

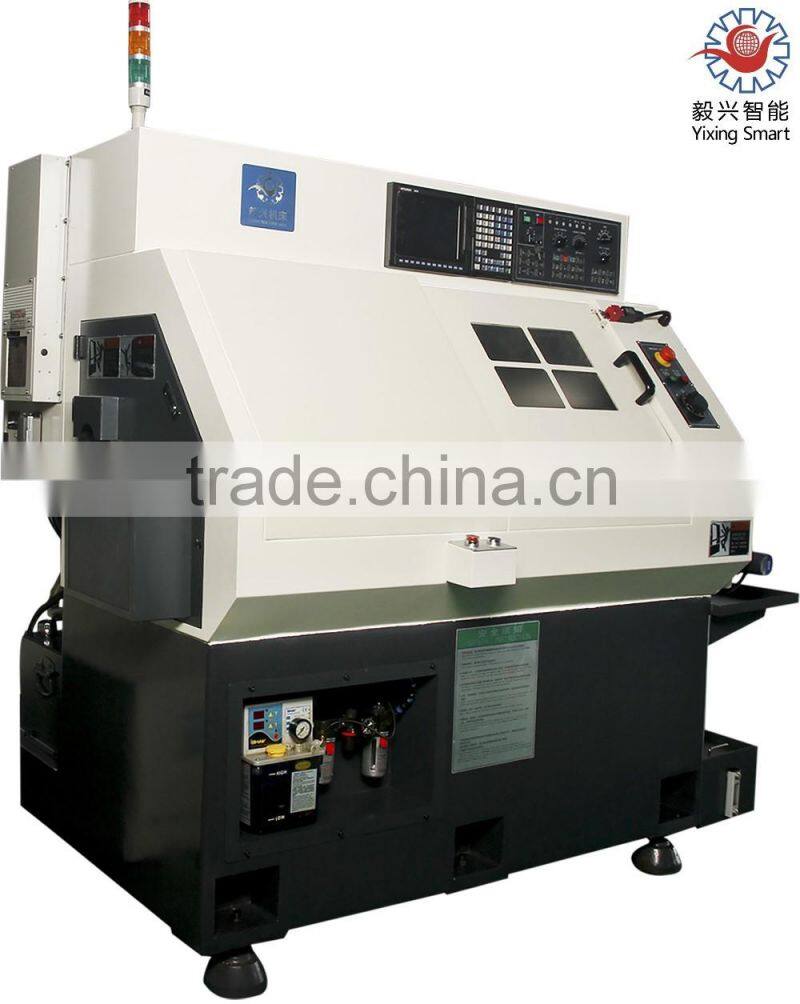

Our Precision CNC Machine Lathe tools pictures
GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.7*24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
Our Factory

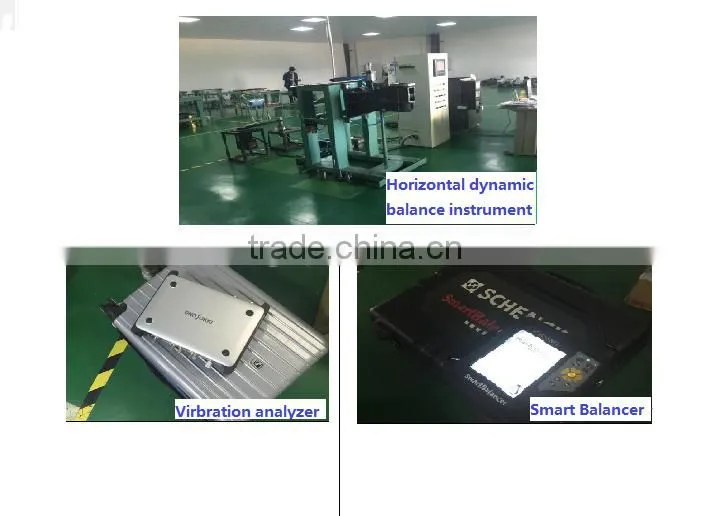

Our testing machine
Our customer's workshop

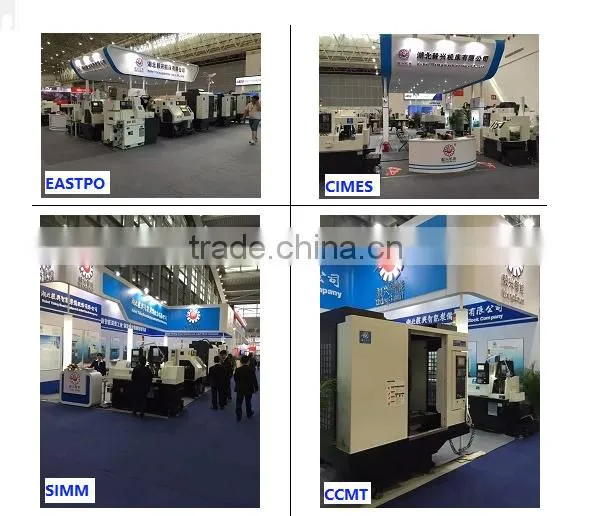

Exhibitions
Contact with us
Shanghai Yixing Machine Tool Co.,Ltd.
Add: No. 3555, Jiasong Mid. Road, Huaxing Town, Qingpu District,Shanghai. City,China
Tel: 0086-21-39873805 39873806
Fax: 0086-21-39873708
Cell: 0086-15024314510
Skype:Shi Mia
Wechat:xiaoshi04160416
Whats app:0086-15024314510
