1, This CNC tools use the axial can be expanding the scope of processing .
2, This CNC tools can be shorten the standby time .
3, This CNC tools leading axle fastest movement is 32m/min .
4. This CNC tools cutting tools distance was 28mm, can be reduce tools chang time.
5, This CNC tools high speed ,high precision and easy operate .
| CNC tools specifications model BS203 205 | ||||
| Description | Unit | BS203 | BS205 | |
| NC System | NC UNIT | MITSUBISHI M70 A | ||
| Machining Range | clamping diameter | mm | 3~20 | |
| Max processing length | mm | 210(80/170:with giude bush/45mm(no guide bush) | ||
| Max drilling diameter of spindle | mm | 10 | ||
| Max tapping diameter of spindle | M10 | |||
| Max clamping diameter of back shaft | mm | 20 | ||
| Max drilling diameter of back shaft | mm | 8 | ||
| Max tapping diameter on back | M8 | |||
| Max drilling depth of spindle | mm | 6 (OP) | ||
| Max drilling diameter of side milling power head | mm | M5*0.8 (OP) | ||
| Max drilling on back | mm | 6 | ||
| Max thread capacity on back | M5 | |||
| Machining parametor | Spindle speed | m/min | 200-10000 | |
| Back shaft speed | m/min | 200-10000/min | ||
| Total cutting tools | pcs | 13 | 21 | |
| Cutting tools size | mm | 12*12*85 | ||
| Fast movement speed | m/min | 32(X1:24m/min) | ||
| Controllable axis | axis | 3(X/Y/Z) | 5 (X/Y/Z;X1,X2,Y,Z1,Z2) | |
| Electric motor | Spindle | kw | 2.2/3.7 | |
| Back shaft | kw | 0.75 | ||
| Z1 axis | kw | 1 | ||
| Y1/Z1/X2/Z2 axis | kw | 0.75 | ||
| The head horizontal power | kW | 0.75(OP) | ||
| Cooling oil pump power | kw | 0.44 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Machine weight | kg | 1700kg | 2100kg |
| Total electrical capacity | KVA | 8 | 11 | |
| Air pressure | mpa | 0.6-0.7 | ||
| Volume | NL/min | 30 | ||
| Cutting oilTank volume | L | 150 | ||
| Machine dimension(L*W*H) | mm | 2106*1162*1791 | 1964*1152*1791 | |

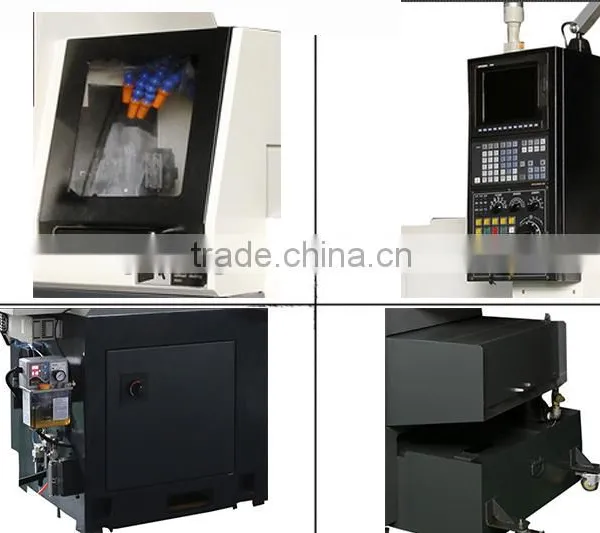

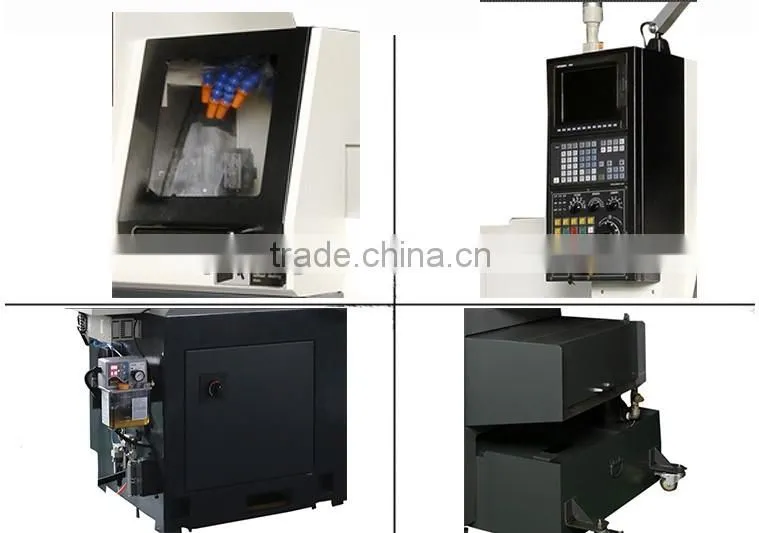

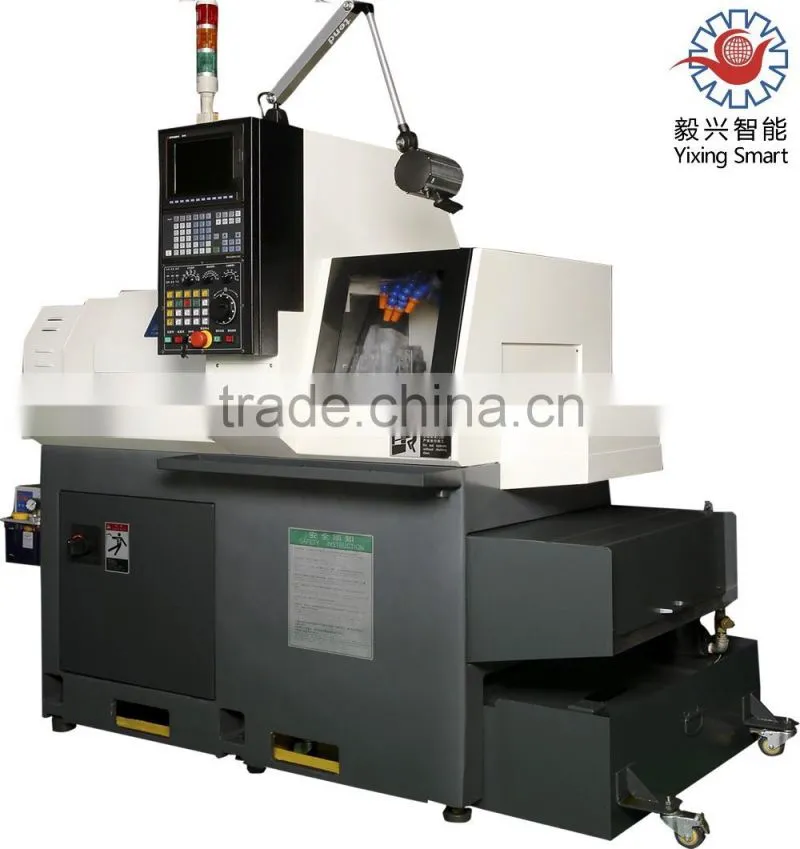

2016 High Performance Model BS203 Cheap Price CNC tools with high quality pictures
1. This CNC tools using Yixing proprietary chuck opening and closure, to replace the traditional toggle, improved roundness spindle selection precision ceramic bearings, cutting stability at high speeds, longer tool life and improve surface accuracy .
2. This CNC tools can be install 21 tools, with an outer diameter of 9, with an inner diameter of 4, on the back with 8, can be multi-processing tool position .
3. This CNC tools , front bearing ceramic ball bearings, spindle speed. Front bearing from the point of cutting the shortest, ultra-precision machining .

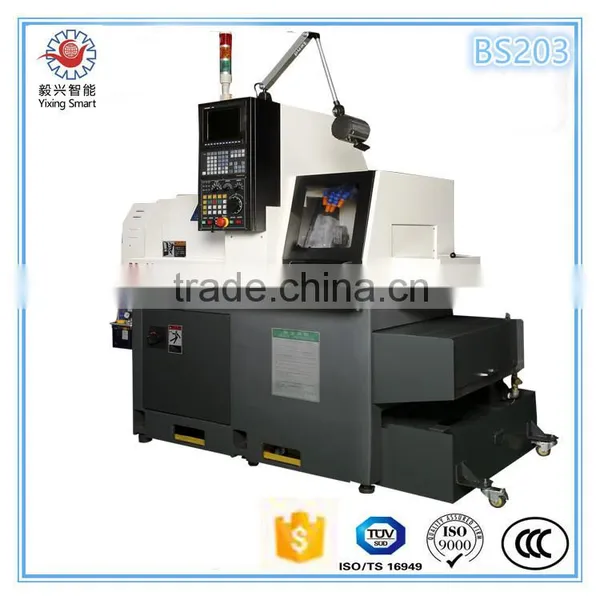

Machine Model: BS203 CNC tools
Type of package: Plywood case
Packaging size: 210*120*180 CM(one set in one case)
N.W./G.W.: 1700 KGS
CNC TOOLS GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .

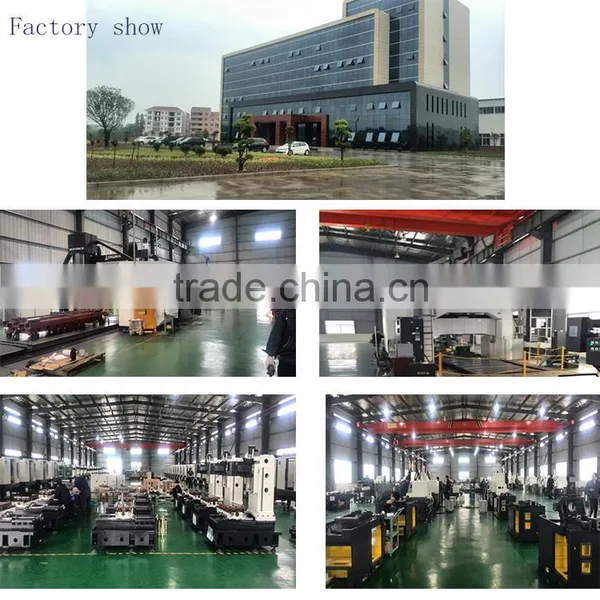

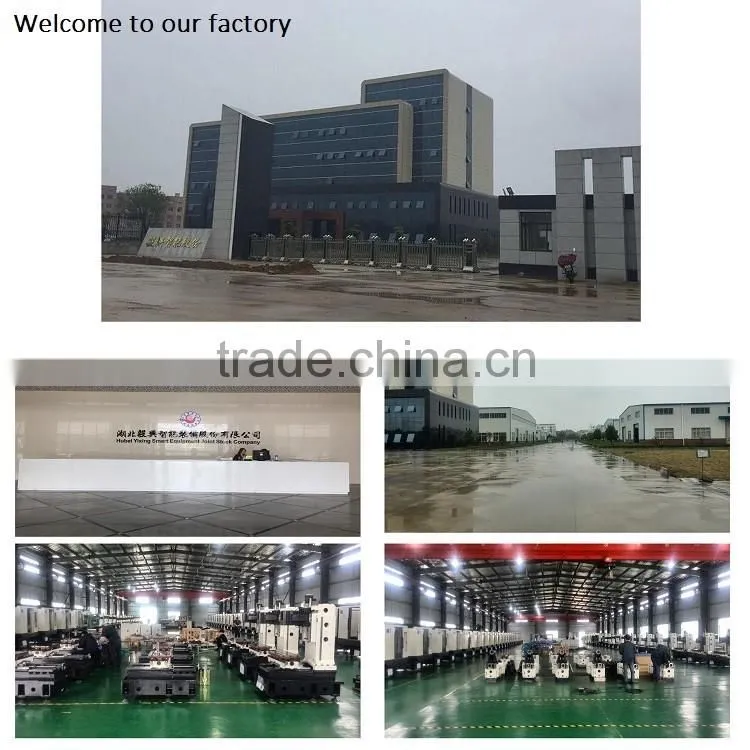

Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
