China Hot sales High Precision Trono Mini CNC lathe Machine High Quality Cnc Lathe Machine
1,The Cnc lathe machine usage MITSUBISHI M70A system ,high precision,high stability and easy operate .
2, The Cnc lathe machine can be flexible add milling power head in side , The facing head can be manufacturing complicated parts .
3, The Cnc lathe machine could change three jaw chuck,improve single parts processing .
4, The Cnc lathe machine can be choice the oil film feeder ,achieved nobody unattended .
5,Slidewayglued low-frication plastics.
6,Spindle with frequening converter and stepless variable drive.
7,Suited for cutting workpieces which have various shapes and sizes.
| CNC machines lathes specifications model BX32C | ||||
| Description | unit | BX32C/42C | ||
| Machining Capacity | Clamping diameter | mm | 3~42(Collet) | |
| mmm | 100(Chuck) | |||
| Max. machining length | mm | 100 | ||
| Max swing diameter | mm | 270 | ||
| Positioning accuracy | mm | 0.003 | ||
| Repeated positioning accuracy | mm | 0.003 | ||
| Spindle end face runout | mm | 0.002 | ||
| Spindle radial runout" | mm | 0.002 | ||
| Spindle Indexing angle | mm | Stepless indexing | ||
| Machining parameter | Spindle speed | mm/min | 6000 | |
| power-driven tool speed | mm | 4000 | ||
| X-axis travel | mm | 400 | ||
| Z-axis travel | mm | 180 | ||
| Length of compound rest | mm | 435 | ||
| Tools size | mm | 16*16/12*12 | ||
| Rapid traverse speed | m/min | 32 | ||
| Number of controllable axis | axis | 4 | ||
| Electric motor | Spindle | kw | 5.5/7.5 | |
| Power-driven tool | kw | 0.75 | ||
| X,Z axis | kw | 1.5 | ||
| Cooling oil pump power | kw | 0.25 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Net weight | kg | 1850 | |
| Rated capacity | KVA | 13KVA/14 | ||
| Air pressure | Mpa | 0.6-0.7 | ||
| Air flow | NL/min | 14 | ||
| Cutting oil Tank volume | L | 200 | ||
| Machine dimension(L*W*H) | mm | 2000*1500*1700 | ||
| NC Unit | MITSUBISHI M70B | |||
| Controlled axes | axis | 4 | ||
| Axis | X/Z/Y/C | |||

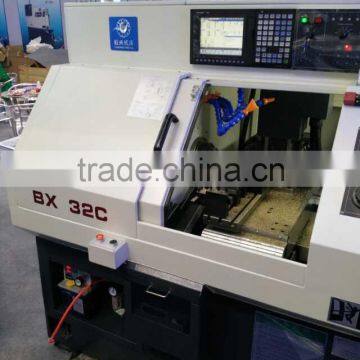

The Cnc lathe machine pictures
1. The CNC machines lathes contain mechatronics design, beautiful exterior, and mature product mix. It is easy to operate, so that one worker can operate multiple lathes at the same time.
2. The The CNC machines lathes bed is made of heavy casting. The heavy casting have went through at least twice aging quality tests and ultrasonic frequency quenching. The integral type casting make the machine tool harder, so that the lathe is more stable.
3. The CNC machines lathes have X, Z axes contains with high-precision rolling screws mandrel, make a better dynamics and higher precisions.
4. The CNC machines lathes double row cylindrical roller bearings and Double direction thrust angular contact bearing are used in principal axis. These precise bearings with special design for the main axial of the machinery equipment. These gives a optimized combination of high-precision, high loads and good running speed; moreover, it is more durable.
The CNC machines lathes package : one set in one woodencase .our packge size can be custom .
CNC MACHINES LATHE GUARANTEE &AFTER-SVRVICE:
- 1.Guarantee for one year
- 2.24-hour technical support by email or on line
- 3.User-friendly English manual for machine using and maintaining
- 4.Free technician training for large customers.
- 5. Provide Engineers oversea training for our customers
- 6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries, Our main products CNC lathe ,machine center ,bar feeder ,atuo lathe ,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
