1,This mini matal lathe was suitable for hard to cut parts processing .
2, This mini matal lathe body use hard track ,can be strengthen the cutting stiffness .
3, This mini matal lathe have many axis multiaxial compound processing improve ability .
4,This mini matal lathe can be long time operate .
5, This mini matal lathe with high speed ,high precision and easy operate .
Our mini matal lathe feature
| Specifications about mini matal lathe BSH205 | |||
| Description | unit | BSH205 | |
| NC system | Control system | MITSUBISHI M70A/FANUC | |
| Machining Range | Clamping diameter | mm | 3~20 |
| Max processing length | mm | 200 | |
| Max drilling diameter | mm | 10 | |
| Max thread aperture | M10 | ||
| Max clamping diameter | mm | 20 | |
| Max back shaft drilling diameter | mm | 8 | |
| Max tapping diameter on back | M6*1.0 | ||
| Max drilling diameter on back | mm | 6(OP.) | |
| Max tapping diameter on back | 5M (OP.) | ||
| Machining parametor | Spindle speed | rpm/min | 10000 |
| Back shaft speed | rpm/min | 8000 | |
| Lathe tool quantity | pcs | 21 | |
| Tools size | mm | 12*12*85 | |
| Fast movement speed | m/min | 35 | |
| Controllable axis | axis | 5 | |
| Electric motor | Spindle | kw | 2.2/3.7 |
| Back shaft | kw | 0.75 | |
| Z1 axis | kw | 1 | |
| Y1/Z1/X2/Z2 axis | kw | 0.75 | |
| Fast movement speed | kw | 0.75 | |
| Cooling oil pump power | kw | 0.93 | |
| Lubricating oil pump power | kw | 0.1 | |
| Positioning accuracy | mm | 0.003 | |
| Cooling oil pump power | mm | 0.003 | |
| Lubricating oil pump | mm | 0.002 | |
| Spindle jumping at diameter | mm | 0.002 | |
| Power | Net weight | kg | 2300 |
| Rated capacity | KVA | 11 | |
| Air pressure | mpa | 0.6-0.7 | |
| Volume | NL/min | 30 | |
| Cutting oil Tank volume | L | 160 | |
| Machine dimension(L*W*H) | mm | 1890*1133*1750 | |

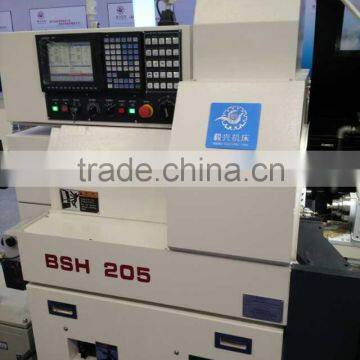

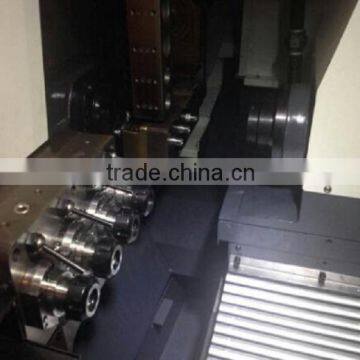

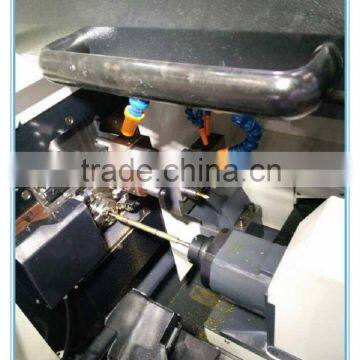

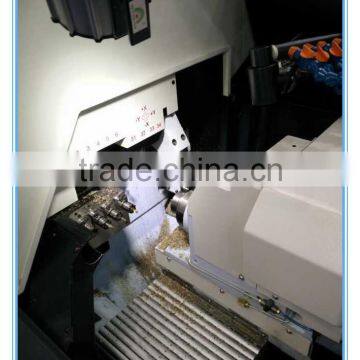

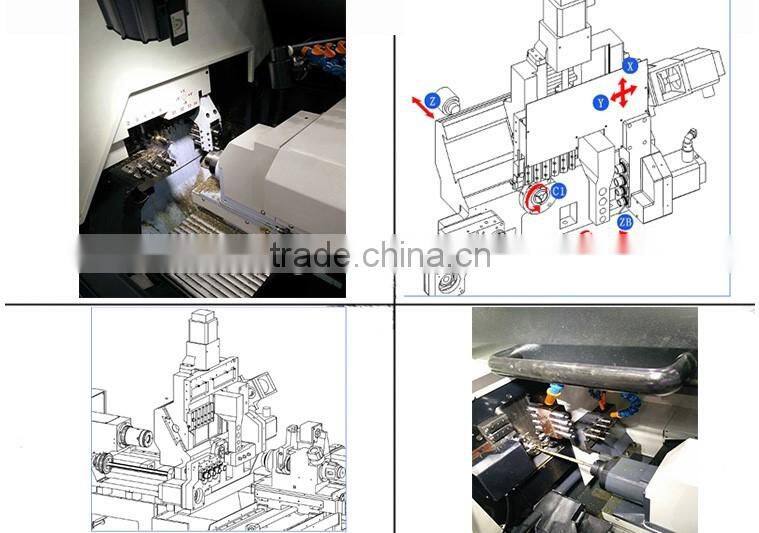

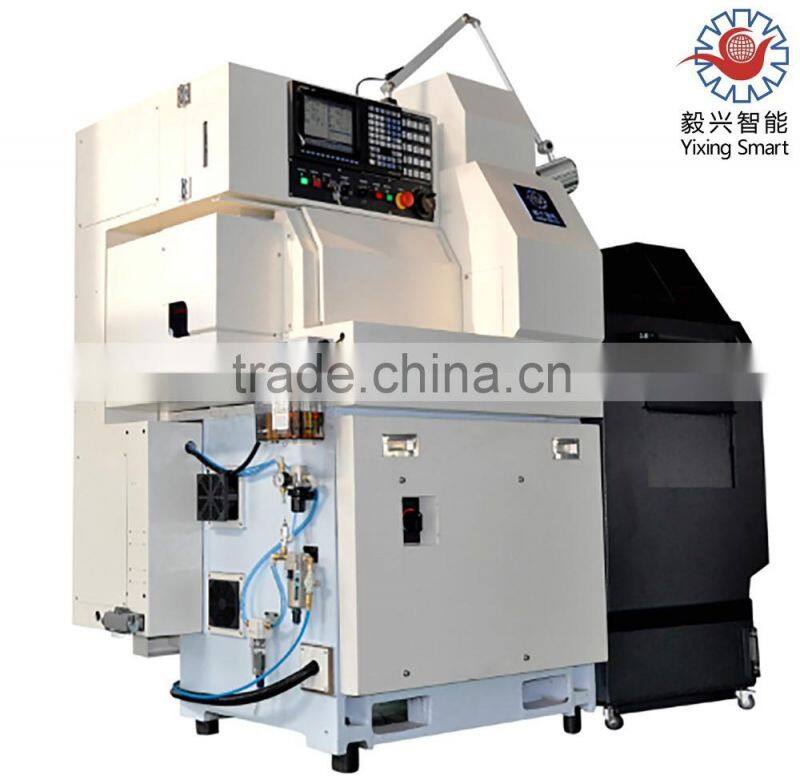

The mini matal lathe pictures
1. The mini matal lathe by drilling tool, an additional rotary tool spindle and 3.7KW high power loading, the pressure of the cooling system select Settings .

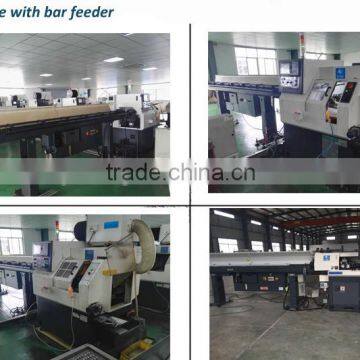

2. The mini matal lathe have large-capacity cutting basin, and coolant tank capacity to 160L, to achieve the continuous operation of the machine for a long time. Film with automatic feeder, can help achieve unattended automatic operation .
3. The mini matal lathe with front and back at the same time processing, fixed tapping, eccentric machining the back, the back of the inner and outer diameter machining, polygon machining and other diverse functions
4. The mini matal lathe operating system has high reliability, high-speed mobile all axes of 24m / min or more, the unique structure of the collet opening and closing, freely overlap processing, improve processing efficiency, reduce business costs .
Our CNC lathe package :one set in one woodencase .our packge size can be custom .
MINI MATAL LATHE GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Our main products CNC lathe ,machine center ,bar feeder ,atuo lathe .Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
