BX32 4 aixs High speed Precision CNC Machine Lathe
1, Mitsubishi M70B control system, higher precision, good stability.
2,Flexible side milling power head, facehead, processing complex parts.
3, Replacable three jaw chuck, increase single parts processing range.
4, Unattended oil film feeder machine is for option.
Our Precision CNC Machine Lathe parameter
| Description | BX32A/42A | BX32B/42B | BX32C/42C | BX32C+B/42C+B | |
| GeneralCapacity | Clamping dia | 3~32mm/3~42mm(Equipped with flexible collet)/100(Equipped with pneumatic chuck) | |||
| Max. machining length | 100mm | 100mm | 100mm | 100mm | |
| Max.swingdiameter | 270mm | 270mm | 270mm | 270mm | |
| Positioning accuracy | 0.003mm | 0.003mm | 0.003mm | 0.003mm | |
| Repeated positioning | 0.003mm | 0.003mm | 0.003mm | 0.003mm | |
| spindle nose runout | 0.002mm | 0.002mm | 0.002mm | 0.002mm | |
| spindle radial runout | 0.002mm | 0.002mm | 0.002mm | ||
| Spindle Indexing | Stepless | Stepless | Stepless | Stepless | |
| Machining parametor | Spindle speed | 6000rpm/min-1 | 6000rpm/min-1 | 6000rpm/min-1 | 6000rpm/min-1 |
| Power-driven tool speed | _ | 4000rpm/min-1 | 4000rpm/min-1 | ||
| X-axis Travel | 400mm | 400mm | 400mm | 400mm | |
| z-axisTravel | 180mm | 180mm | 180mm | 180mm | |
| Length of Compound rest | 520 | 520 | 435mm | 435mm | |
| Tools size | 16mm*16mm/12mm*12mm | 16mm*16mm/12mm*12mm | 16mm*16mm/12mm*12mm | 16mm*16mm/12mm*12mm | |
| Rapid traverse rate | 32m/min | 32m/min | 32m/min | 32m/min | |
| Controllable axis number | 2 axis | 3 axis | 4 axis | 4 axis | |
| Electric motor | Spindle | 5.5/7.5kw | 5.5/7.5kw | 5.5/7.5kw | 5.5/7.5kw |
| Power-driven tool speed | - | 700W/0.75kw | 0.75kw | 400W/0.75KW/700W | |
| X,Z axis | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |
| Cooling oil pump | 0.25kw | 0.25kw | 0.25kw | 0.25kw | |
| Lubricating oil pump | 0.1kw | 0.1kw | 0.1kw | 0.1kw | |
| Power | Machine weight | 1700kg | 1750kg | 1850kg | 1900kg |
| Total electrical capacity | 12KVA/14KVA | 12KVA/14KVA | 13KVA/14KVA | 14KVA/14KVA | |
| Air source | 0.6-0.7mpa | 0.6-0.7mpa | 0.6-0.7mpa | 0.6-0.7mpa | |
| Air flow | 14NL/min | 14NL/min | 14NL/min | 14NL/min | |
| Cutting oilTank volume | 200L | 200L | 200L | 200L | |
| Machine dimension(L*W*H) | 2000*1500*1700mm | 2000*1500*1700mm | 2000*1500*1700mm | 2000*1500*1700mm | |
| NC System | NC UNIT | MITSUBISHI M70B | MITSUBISHI M70B | MITSUBISHI M70B | MITSUBISHI M70B |
| Controlled axis | 2 axis | 3 axis | 4 axis | 4 axis | |
| AXIX | X/Z | X/Z/C | X/Z/Y/C | ||
| Positioning unit | - | ||||
| Tanverse unit | 0.001mm | 0.001mm | 0.001mm | 0.001mm | |
| Max. program commands value | ± 8 digits | ± 8 digits | ± 8 digits | ± 8 digits | |
| Interpolation | linear and circular ,conical,spiral | ||||
| Rapid traverse rate | 32m/min | 32m/min | 32m/min | 32m/min | |
| Cut feeding rate | 1-10,000mm/min | 1-10,000mm/min | 1-10,000mm/min | 1-10,000mm/min | |
| OVR feeding(spindle override) | 0-120%,10% /Part | 0-120%,10% /Part | 0-120%,10% /Part | 0-120%,10% /Part | |
| Dwell time | G04 0-99999.99 | G04 0-99999.99 | G04 0-99999.99 | G04 0-99999.99 | |
| Rapid traverse override | F0,F25,F50,F100% | F0,F25,F50,F100% | F0,F25,F50,F100% | F0,F25,F50,F100% | |
| ABS/INC command | X, Z:U ,W increments | X,Y,Z;U,V,W increments | |||
| Tool offset | ± 6 Digits | ± 6 Digits | ± 6 Digits | ± 6 Digits | |
| Tool offset sets | 64 sets | 64 sets | 64 sets | 64 sets | |
| LCD/MDI | 8.4" color TFT | 8.4" color TFT | 8.4" color TFT | 8.4" color TFT | |
| Language | Chinese/ English/Japanese | ||||
| Storage capacity of programme | 500 KB | 500 KB | 500 KB | 500 KB | |
| I/O interface | RS 232C | RS 232C | RS 232C | RS 232C | |
| subsidiary function | M5 Digits | M5 Digits | M5 Digits | M5 Digits | |
| Spindle function | S5 Digits | S5 Digits | S5 Digits | S5 Digits | |
| Tool function | T13 Digits | T13 Digits | T13 Digits | T13 Digits | |

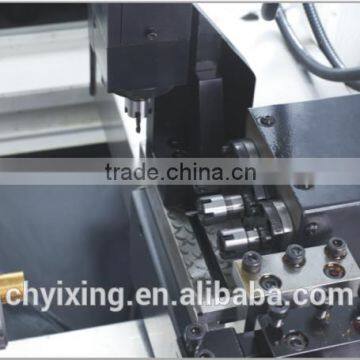

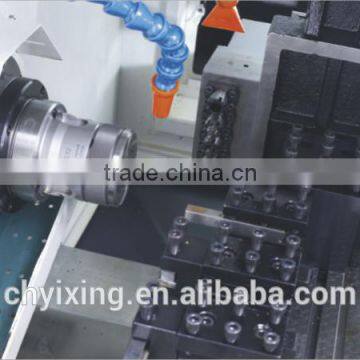

Our Precision CNC Machine Lathe pictures
GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
