Hydraulic Fastening Platform For Fire Damper Manufacturing

Standard export packing

Basic Configuration:

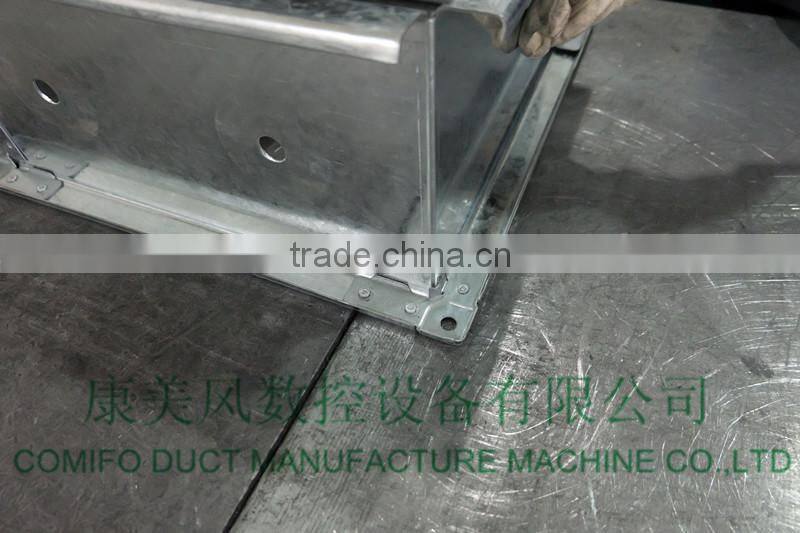

1, corner fastening workpiece(4 points one time)

2, side fastening workpiece(4 points one time)

3, section support(grooving)/wind stop part fastening gun head(2 points one time)

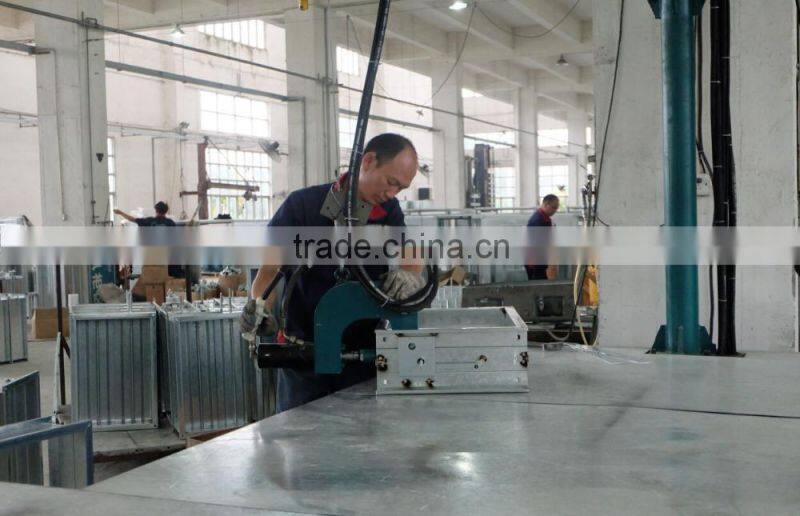

4, movable gun head for general fastening requirements(1 point one time)

5, 2 combination tables

6, hydraulic control system

Model NO.: FDFP-MJ

Thickness Range:

1. corner fastening: (1.2-1.5)mm+(1.5-2.0)mm
2. side fastening: (1.5-2.0)mm+(1.5-2.0)mm
3. hanging gun head:  (1.5-2.0)mm+(1.5-2.0)

Space: 3800*3600*3300

Die Material:  Cr12mov

Heat Treating Hardness:  55-58RHC

Control System: PLC control with individual foot switches

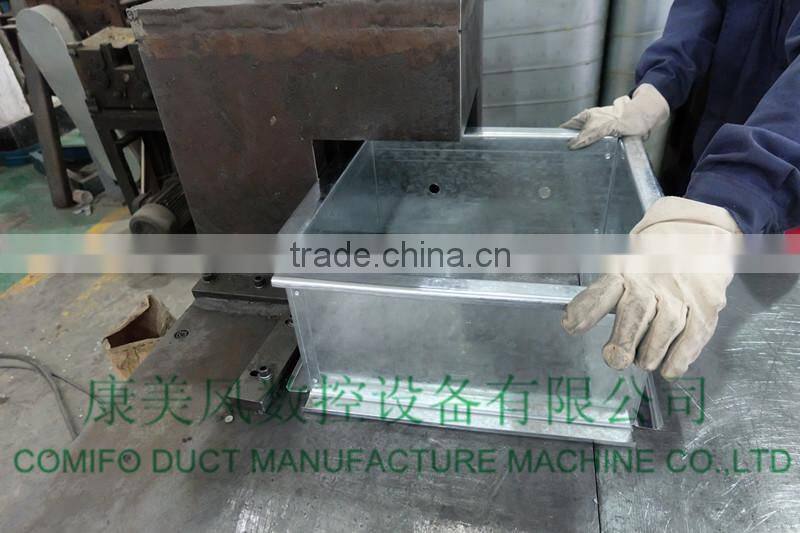

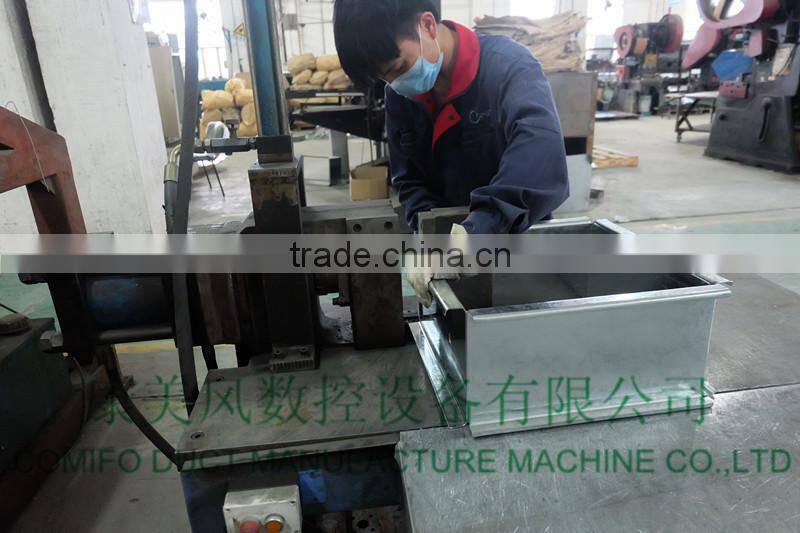

Besides a machinery manufacturer, Comifo is also a fire damper manufacturer for various construction projects ans sell to other contractors as well. The fire damper fastening platform was designed according to Comifo's experience which is more than a decade. Comifo is the first and also the unique one who makes this fastening platform. It consists of fire damper corner fastening, seam closing fastening, hanging double fastening and hanging single fastening. Just 2 seconds for each hydraulic fastening.

Fire damper fastening table is firstly designed by Comifo with more than 10 years damper manufacturing experience. Adopting hydraulic system, each time of fastening presses only 2 seconds. The hydraulic fastening technique takes place of welding, which makes fire damper processing much more simple and easier, and pratised-workers are not required. It saves production time and labor cost.

Configured with Comifo fire damper frame forming machine and fire damper blade forming machine, a full body of damper can be made and production rate is greatly raised.

Pictures:

More specs detail, please contact us.

Other accessories are available, such as copper bush, square shaft, linking piece and linking rod. More over, Comifo also offer PREN fire damper actuators( manual actuator, semi-auto actuator, semi-auto two-time movements smoke fire damper actuator, auto actuator, auto two-time movements smoke fire damper actuator, as well as actuator for air damper, motorized ball valve, etc.
