Help CenterComifo Metal Pipe Forming Machine VI
Related Products
Specifications
1.Metal pipe forming machine2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor

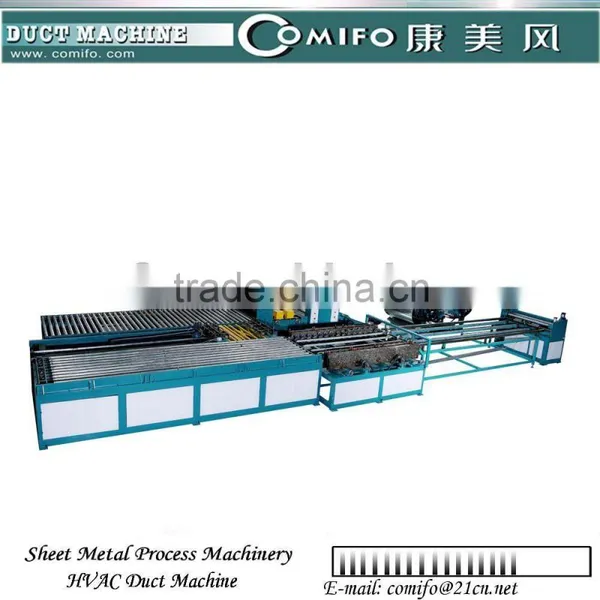

Comifo duct manufacture auto line also called duct machine,duct making machine,metal pipe forming machine
Features:
>Modular design allows adding a section at a time
>Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
>Straightening/flattening - Pneumatic controlled straightener
>Pneumatic controlled ring type beading rolls with five beading rings-which can be removed
>Duplex pittsburgh lock former, forms pittsburgh lock and right angle in double sides
>Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Capabilities:
√ Alternative width for 4' (1300mm) or 5' (1550) material
√ Sheet capacity: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge
Pls contact us for detailed information
Stations: coil-straightening-beading-punching square-notching-shearing- coil conveyer-duplex pittsburgh lock forming-coil conveyer-duplex TDF flange forming-hydraulic folding
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
CAL6-1.2x1300 |
1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
CAL6-1.2x1600 |
1600mm
|
Work Flow:
Product from the Auto Line VI:

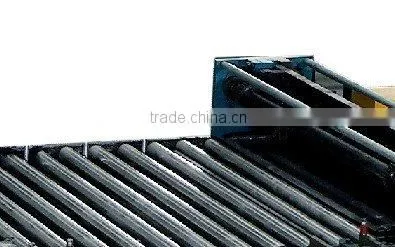

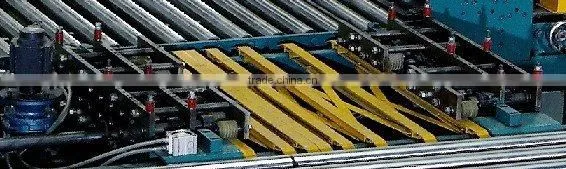

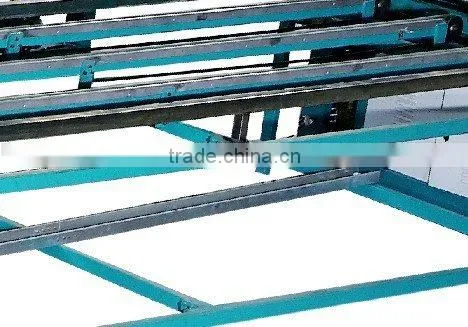

More Detailed Pictures:
